Quick Details
-
Cooling Mode:
-
Air cooling
-
Control Software:
-
Beijing EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JN QUALITY CNC
-
Marking Head Brand:
-
Beijing Sheng's Galvanometer scanner
-
Weight (KG):
-
140 KG
-
Core Components:
-
Raycus fiber laser source
-
Product name:
-
Zippo Lighter Marking 20W 30W 50W Fiber Metal Laser Marking Machine
-
Marking material:
-
Gold, Silver, Stainless Steel, Brass
-
Laser source:
-
30W Raycus (JPT, MAX, IPG optional)
-
Laser wavelength:
-
1064nm
-
Control Card:
-
Original Beijing JCZ mainboard
-
Marking Speed:
-
7000mm/s
-
Windows System:
-
Win XP / 7 / 8 / 10 (32 bit , 64 bit)
-
Power Supply:
-
AC220V +10% / 50HZ
-
Raycus laser source lifespan:
-
More than 100,000 hours
-
Raycus laser source warranty:
-
3 years
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air cooling
-
Control Software:
-
Beijing EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JN QUALITY CNC
-
Marking Head Brand:
-
Beijing Sheng's Galvanometer scanner
-
Weight (KG):
-
140 KG
-
Core Components:
-
Raycus fiber laser source
-
Product name:
-
Zippo Lighter Marking 20W 30W 50W Fiber Metal Laser Marking Machine
-
Marking material:
-
Gold, Silver, Stainless Steel, Brass
-
Laser source:
-
30W Raycus (JPT, MAX, IPG optional)
-
Laser wavelength:
-
1064nm
-
Control Card:
-
Original Beijing JCZ mainboard
-
Marking Speed:
-
7000mm/s
-
Windows System:
-
Win XP / 7 / 8 / 10 (32 bit , 64 bit)
-
Power Supply:
-
AC220V +10% / 50HZ
-
Raycus laser source lifespan:
-
More than 100,000 hours
-
Raycus laser source warranty:
-
3 years
Product Overview
Zippo Lighter Marking Metal Marking Engraving 20W 30W 50W Fiber Laser Marking Machine
Agency price can be negotiated！
1).
Superior and fine laser beam with uniform power density, stable laser power.
2). Quick speed (max 7000mm/s) without deviation , low cost.
2). Quick speed (max 7000mm/s) without deviation , low cost.
3). Non-contact processing, no damage to the surface of lighters, no tool wear
,
high-quality marking .
4). It can mark time, date,text, serial and part numbers, company logos, icon, symbol,bar codes, or 2D codes, matrix and vector fonts on all plain, painted, powder coated, anodized, or plated metal surfaces, whether they are flat sheets, curved surfaces, or cylinders.
5). Mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow
and virtual
open phenomenon.
6). When power above 30w 50w 60w 80w 100w, fiber laser also can deep engraving and cutting jewelry metal,such as gold, silver, titanium, steel, brass, copper etc.
7). When using mopa fiber laser source, laser can mark different colors on stainless steel and titanium, and more delicate marking effects on anodizedaluminum, steel , plastic and other materials ,which fiber laser can not mark.
open phenomenon.
6). When power above 30w 50w 60w 80w 100w, fiber laser also can deep engraving and cutting jewelry metal,such as gold, silver, titanium, steel, brass, copper etc.
7). When using mopa fiber laser source, laser can mark different colors on stainless steel and titanium, and more delicate marking effects on anodizedaluminum, steel , plastic and other materials ,which fiber laser can not mark.
8). Life of the laser can be up to 100,000 hours, and warranty is 3 years for both fiber laser source and whole marking machines.
FEATURES AT A GLANCE
# Desktop model
# Raycus/ Max / JPT fiber laser source 30W
# Raycus/ Max / JPT fiber laser source 30W
# Sino-Galvo Galvanometer scanner with double red-pointors
# CARMEN HAAS Field lens
# Marking field : 110*110mm (150*150, 200*200mm optional)
# Beijng JCZ controlling system
# Aluminum alloy flat working table
# Red pointor for laser beam
# Manual lifting column 500mm
# CARMEN HAAS Field lens
# Marking field : 110*110mm (150*150, 200*200mm optional)
# Beijng JCZ controlling system
# Aluminum alloy flat working table
# Red pointor for laser beam
# Manual lifting column 500mm
# Desktop computer with Beijing EZcad software
PRODUCT SPECIFICATIONS
|
No
|
Product name
|

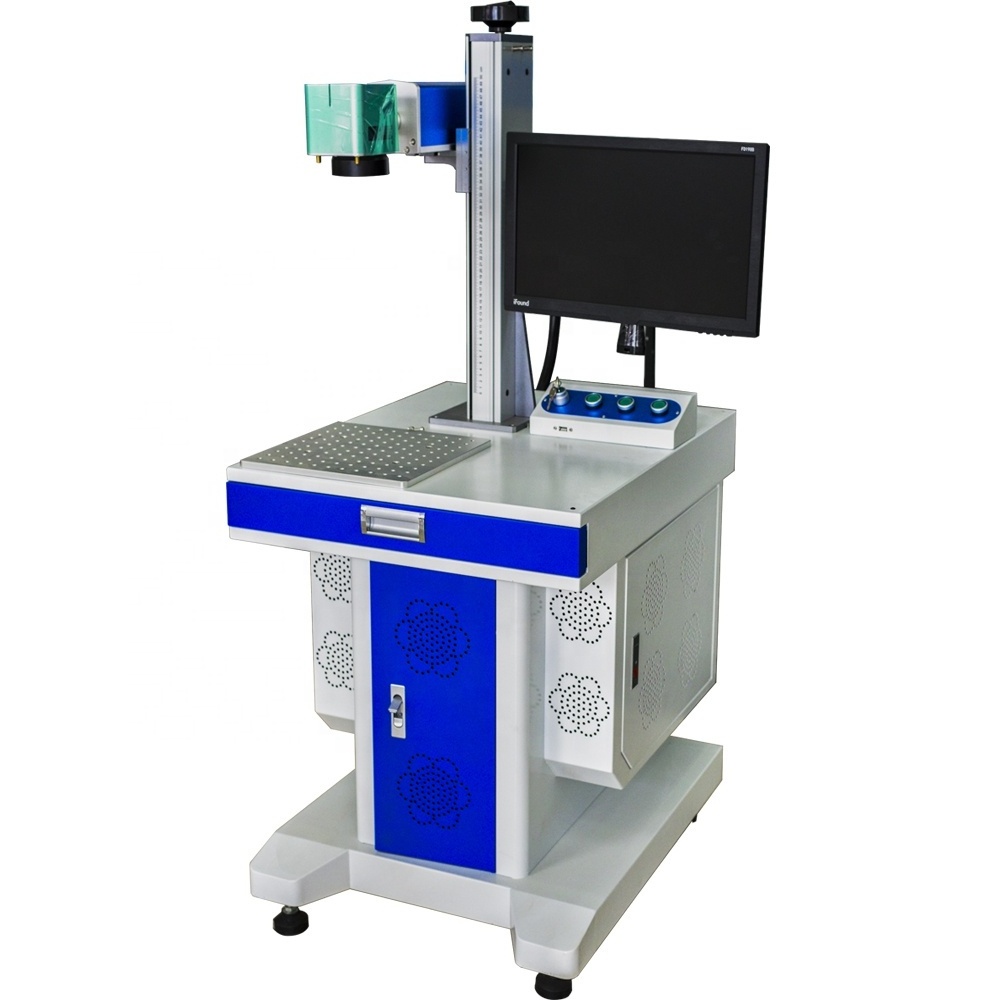

Desktop fiber laser marking machine with computer
|
|
1
|
Laser source and power
|
Raycus/ JPT/ MAX fiber laser source 30W
|
|
2
|
Wavelength
|
1064nm
|
|
3
|
Beam Quality
|
M² ≤ 1.2
|
|
4
|
Frequency
|
20KHz-80KHz
|
|
5
|
Galvanometer scanner
|
Sino-Galvo scanner with double red-pointor
|
|
6
|
Field lens
|
CARMEN HAAS
|
|
7
|
Controlling system
|
Beijing JCZ controlling mainbaord and EZcad software on computer
|
|
8
|
Marking size
|
110 *110mm
(150*150, 175*175 mm, 250*250mm, 300*300mm for optional)
|
|
9
|
Repetitive accuracy
|
0.005mm
|
|
10
|
Min linear width
|
0.01mm
|
|
11
|
Max marking /engraving speed
|
7000mm/s
|
|
12
|
Marking Depth
|
Depend on materials
|
|
13
|
Cooling device
|
Build-in air-cooling
|
|
14
|
Working table
|
Aluminum alloy 2D-adjustable working table
|
|
15
|
Marking Format
|
Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc.
|
|
16
|
Graphic format supported
|
Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif
|
|
17
|
Laser lifetime
|
more than 100,000 hours
|
|
18
|
Warranty
|
1). Fiber laser source: 3 years for 20W and 30W; 2 years for 50W
2). 3 years for fiber marking machine
|
|
19
|
Computer
|
Desktop computer with Beijing EZCAD controlling system
|
|
20
|
Optional functions
|
Auto Focus Function, CCD camera
|
|
21
|
Consumed power
|
<550W
|
|
22
|
Working Condition Humidity
|
5%-75%, 0-40 degree, free of condensed water
|
|
23
|
Working Environment
|
Clean and dust free or dust less
|
|
24
|
Working Voltage
|
220V±10%/50Hz or 110V±10%/60Hz or customized
|
|
25
|
Net weight
|
140kg (with exporting wooden box)
|
|
26
|
Packing Size
|
890*890*990mm
|
PRODUCT CONFIGURATION
Raycus laser source 30W
Sino-Galvo
Galvanometer scanner
CARMEN HAAS
Field lens
Controlling cabinet with Beijing JCZ
Manual lifting column 500mm
Lifting handle
Laser, scan,red light,key,main switch
Aluminum alloy flat working table
Parts with delivery
Successful Project
Application:
Application Materials:
scalpel fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC.
scalpel fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC.
Applicable industry:
1. Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
2. Instrument: Panel Board, Nameplates, Precision equipment, etc.
3. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
4. Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights,etc.
6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards,Computer Keyboard, etc.
1. Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
2. Instrument: Panel Board, Nameplates, Precision equipment, etc.
3. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
4. Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights,etc.
6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards,Computer Keyboard, etc.
