Quick Details
-
Printing:
-
Polyester Screen Printing
-
Monofilament Style:
-
Yes
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
YILONG MESH
-
Model Number:
-
80T 90T 100T 110T 120T
-
Color:
-
White
-
Name:
-
mesh fabric monofilament polyester screen printing mesh white
-
Weave machine:
-
Sulzer Ruti P7100&P7150
-
Anti-static capablity:
-
permanent,effective for printing process
-
Adhesion capability:
-
Excellent
-
Application:
-
Screen Printing Industry
-
Feature:
-
Low Elongation
-
Usage:
-
Prinitng
-
Sample:
-
Provided
-
Packaging:
-
Carton
Quick Details
-
Material:
-
100% Polyester
-
Weave Type:
-
Plain
-
Elasticity:
-
Low
-
Printing:
-
Polyester Screen Printing
-
Monofilament Style:
-
Yes
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
YILONG MESH
-
Model Number:
-
80T 90T 100T 110T 120T
-
Color:
-
White
-
Name:
-
mesh fabric monofilament polyester screen printing mesh white
-
Weave machine:
-
Sulzer Ruti P7100&P7150
-
Anti-static capablity:
-
permanent,effective for printing process
-
Adhesion capability:
-
Excellent
-
Application:
-
Screen Printing Industry
-
Feature:
-
Low Elongation
-
Usage:
-
Prinitng
-
Sample:
-
Provided
-
Packaging:
-
Carton
Polyester Wire Mesh for Printing

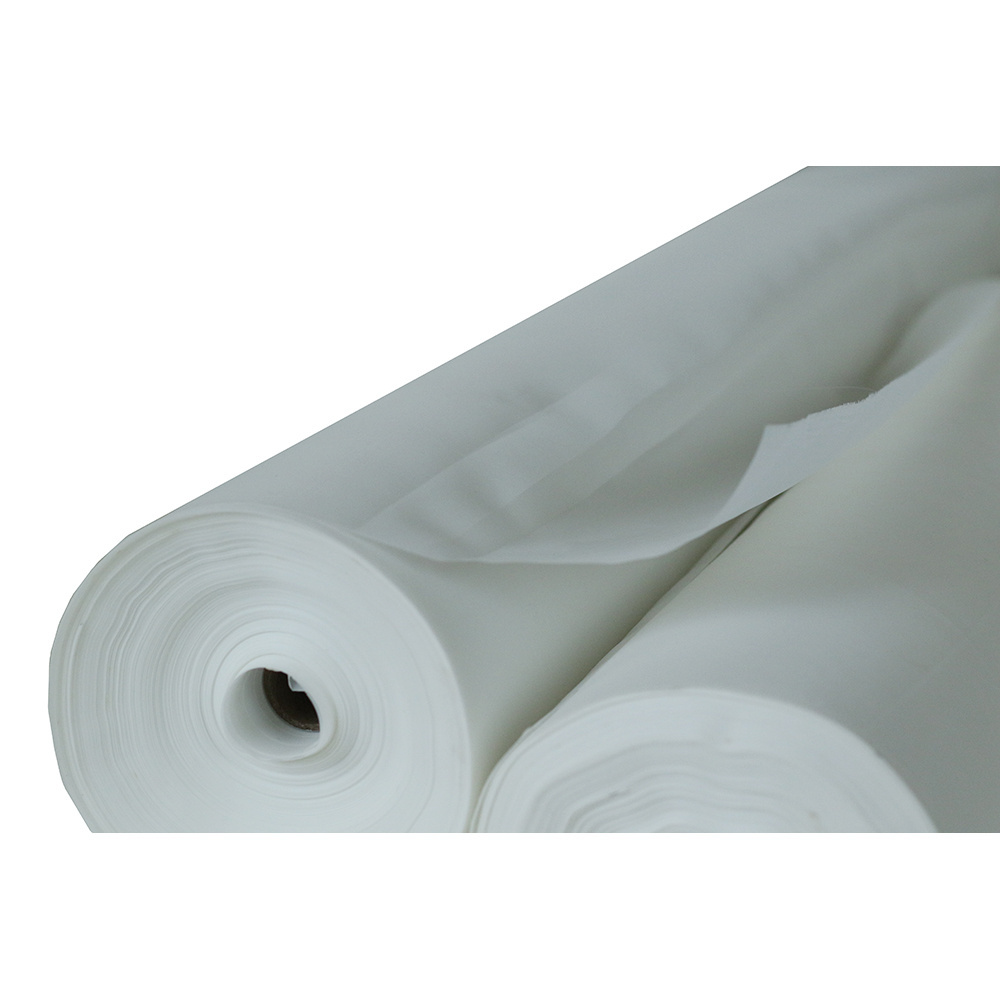

Fabric Monofilament Polyester Screen Printing Mesh
Polyester Screen Printing Mesh Details
Yilong Mesh Co.,Ltd produces mesh from 10T to 180T with maxium width at 350cm.
Polyester Screen Printing Mesh Features
Polyester Screen Printing Mesh Features
· Produced by Sulzer Rut:i P7100 & P7150
· Thread Material:high modulus polyester
· Premium Quality
· 100% Polyester Monofilament Mesh
· Plain Weave 1:1
· Low Elongation
· Excellent Tear Resistance
· Very Good Dimensional Stability
· Faster tensioning without damage to the threads
· Higher tension threshold and breaking point
· Improved registration due to stable tension
· Various width from 50cm to 310cm available
Mesh screen printing fabrics have a track record of:
· Produced by Sulzer Ruti P7100 & P7150
· Thread Material: high modulus polyester
· Premium Quality
· 100% Polyester Monofilament Mesh
· Plain Weave 1:1
· Low Elongation
· Excellent Tear Resistance
· Very Good Dimensional Stability
· Faster tensioning without damage to the threads
· Higher tension threshold and breaking point
· Improved registration due to stable tension
· Various widths from 50cm to 310cm available
|
Recommendations: M esh S electing for S creen P rinting |
|
|
Graphics |
165T/420-31;150T/380-31;140T/355-31;120T/300-34;90T/230-48;32T/83-70 |
|
Backlit panels |
165T/420-31;150T/380-31;140T/355-31;120T/300-34;90T/230-48 |
|
CD/DVD |
165T/420-31;150T/380-31;140T/355-31;120T/300-34 |
|
Electronics/PCB |
165T/420-31;150T/380-31;140T/355-31;120T/300-34;100T/255-40;90T/230-48;77T/195-55; |
|
71T/180-55;68T/175-55;62T/160-64;54T/137-64;48T/123-70;43T/110-80;32T/83-70;12T/30-150 |
|
|
Membrane Switches |
165T/420-31;150T/380-31;140T/355-31;120T/300-34;110T/280-34um;100T/255-40;90T/230-48; |
|
77T/195-55;71T/180-55;48T/123-70;36T/90-100 |
|
|
Credit Cards |
150T/380-31;120T/300-34;100T/255-34;71T/180-55 |
|
Dashboards |
165T/420-31;150T/380-31;140T/355-31;120T/300-34;110T/280-34um;90T/230-48;36T/90-100 |
|
Ceramic Tiles |
165T/420-31;150T/380-31;140T/355-31;120T/300-34;100T/255-40;77T/195-55;62T/160-64; |
|
43T/110-80;36T/90-100;32T/83-100;12T/30-150 |
|
|
Glass |
165T/420-31;150T/380-31;140T/355-31;120T/300-34;100T/255-40;90T/230-48;77T/195-48; |
|
62T/160-64;68T/175-55;43T/110-80; |
|
|
Textiles |
150T/380-31;140T/355-31;120T/300-34;100T/255-40;77T/195-48;62T/160-64;54T/137-64; |
|
47T/120-55;43T/110-80;40T/100-80;36T/90-100;32T/83-100;16T/40-200;12T/30-150 |
|
|
Objects |
165T/420-31;150T/380-31;140T/355-31;120T/300-34;100T/255-40 |
