Quick Details
-
Product name:
-

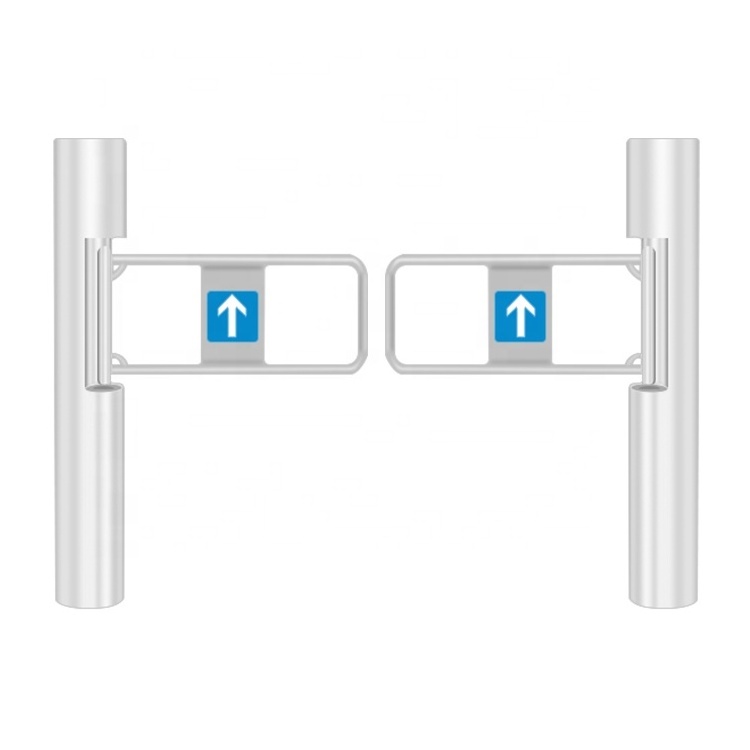

supermarket swing turnstile
-
Power supply:
-
220VAC 50HZ / 110VAC 60HZ
-
Material:
-
304 grade stainless steel
-
Size:
-
1050(H)*168(D) mm
-
Communication interface:
-
one standard port RS485
-
Arm lenght:
-
500-900mm(optional)
-
Pass rate:
-
30-40 persons per minute
-
MCBF:
-
around 4 million times
-
Input:
-
12v dry contact
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AnKuai
-
Model Number:
-
AKT322
-
Product name:
-
supermarket swing turnstile
-
Power supply:
-
220VAC 50HZ / 110VAC 60HZ
-
Material:
-
304 grade stainless steel
-
Size:
-
1050(H)*168(D) mm
-
Communication interface:
-
one standard port RS485
-
Arm lenght:
-
500-900mm(optional)
-
Pass rate:
-
30-40 persons per minute
-
MCBF:
-
around 4 million times
-
Input:
-
12v dry contact
Product Description
Specification
|
name
|
supermarket swing turnstile
|
|
Model Number
|
AKT322
|
|
type
|
swing barrier gate
|
|
material
|
304 grade stainless steel
|
|
size
|
1050(H)*168(D)
|
|
weight
|
40kg
|
|
arms length
|
500-900mm(optional)
|
|
working voltage
|
AC220V(10%more or less ),50(10%more or less )HZ
|
|
Pass rate
|
30-40 persons per minute
|
|
protection grade
|
IP54
|
|
communication interface
|
one standard port-RS485
|
|
Life time
|
around 4 million times
|
|
Environment temperature
|
-25ºC±70ºC
|
|
Power consumption
|
32w
|
|
Input
|
12v dry contact
|
|
humidity
|
≤90%
|
