Quick Details
-
Weight:
-
985 KG, 985 kg
-
Key Selling Points:
-
Engine, Blade
-
Marketing Type:
-
New Product 2022
-
Model:
-
051360
-
Transport height:
-
1080 mm
-
Operation Width:
-
1550 mm
-
Flow:
-
110-140 L/Min
-
Operating Pressure:
-
21 Mpa
-
Host lifting capacity requirements:
-
>1 T
-
Depth of rotating plough:
-
≤150 mm
-
Number of blades:
-
40
-
Requires host power:
-
Above 85HP
Quick Details
-
Use:
-
shredding wood
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
900x1860x1680mm
-
Weight:
-
985 KG, 985 kg
-
Key Selling Points:
-
Engine, Blade
-
Marketing Type:
-
New Product 2022
-
Model:
-
051360
-
Transport height:
-
1080 mm
-
Operation Width:
-
1550 mm
-
Flow:
-
110-140 L/Min
-
Operating Pressure:
-
21 Mpa
-
Host lifting capacity requirements:
-
>1 T
-
Depth of rotating plough:
-
≤150 mm
-
Number of blades:
-
40
-
Requires host power:
-
Above 85HP

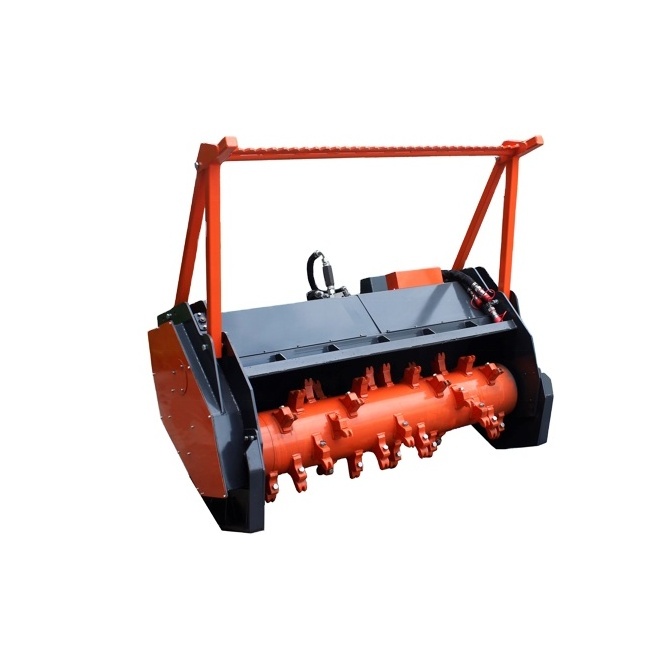

051360 forestry mulcher for excavator and skid steer loader
Contact Way
Product Overview
Mulcher with newly blades, applied for the grass, trees and shrubs cultivation; compact design for easy operation; equipped with a pressure gauge and oil cooling radiator to better protect the hydraulic system; removable blade knives with rapid replacement function. Fit for the skid steer loaders with high flow.
Main features of Forest Mulcher
1.Forest mulcher uses a new type of alloy blade knife, which is suitable for open up virgin soil like shrubs and grasses etc wasteland.
2.Compact design easy for operation and transportation
3.Standard configuration with pressure gauge and radiator. Much better to protect hydraulic system.
4.Removable blade with quick change function can much reduced the cost of use
5.This machine have to fit with skid steer loader with high flow hydraulic system.
2.Compact design easy for operation and transportation
3.Standard configuration with pressure gauge and radiator. Much better to protect hydraulic system.
4.Removable blade with quick change function can much reduced the cost of use
5.This machine have to fit with skid steer loader with high flow hydraulic system.
Advantages
1. HD Frame & push bar give robust durability
2. Ultra HD drive train for torque & longevity
3. Dynamically balanced rotor for smooth speed
4. Carbide-faced teeth & high-carbon tooth holders
5. Visible pressure gauge allows easy monitoring
6. High flotation skid shoes keep teeth out of dirt
7. Access panels allow quick & easy monitoring
2. Ultra HD drive train for torque & longevity
3. Dynamically balanced rotor for smooth speed
4. Carbide-faced teeth & high-carbon tooth holders
5. Visible pressure gauge allows easy monitoring
6. High flotation skid shoes keep teeth out of dirt
7. Access panels allow quick & easy monitoring
Product Paramenters
|
Model
|
051360
|
051372
|
051384
|
|
Overall Length (mm)
|
900
|
900
|
900
|
|
Overall Width (mm)
|
1860
|
2160
|
2410
|
|
Overall Height (mm)
|
1680
|
1680
|
1680
|
|
Transport height (mm)
|
1080
|
1080
|
1080
|
|
Operation Width (mm)
|
1550
|
1850
|
2100
|
|
Weight(kg)
|
985
|
1125
|
1235
|
|
Flow(L/Min)
|
110-140
|
120-150
|
120-150
|
|
Operating Pressure (Mpa)
|
21
|
21
|
21
|
|
Host lifting capacity requirements (T)
|
>1
|
>1.1
|
>1.2
|
|
Depth of rotating plough (mm)
|
≤150
|
≤150
|
≤150
|
|
Number of blades
|
40
|
48
|
56
|
|
Heatsink voltage(V)
|
DC12/24
|
DC12/24
|
DC12/24
|
|
Requires host power
|
Above 85HP
|
Above 100HP
|
Above 100HP
|
|
Diameter of wood to be chopped (mm)
|
|
|
200
|
|
diameter of the rotor with cutters (mm)
|
528
|
528
|
528
|
|
CBM
|
3.97
|
4.55
|
5.05
|
