Quick Details
-
Brand Name:
-
HENGKO
-
Product name:
-
gas sparger
-
Application:
-
ozone/oxygen/CO2/N2 diffuser, foam kit, bioreactor, etc.
-
Material:
-
SS 304 316 316L
-
Size:
-
D12*H100mm, D24.5*H65mm, D12.7*H25.4mm, etc.
-
Pore size:
-
0.5um 2um 5um, 10um, 40um, etc.
-
Connector:
-
1/4" barb, 1/8" barb, 3/8" barb, etc.
-
Features:
-
Fast flow rate, good aeration effect, easy to clean, etc.
-
Max pressure:
-
5 Mpa
-
Max temperature:
-
600 degrees
Quick Details
-
Weight (KG):
-
0.5
-
Core Components:
-
filter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HENGKO
-
Product name:
-
gas sparger
-
Application:
-
ozone/oxygen/CO2/N2 diffuser, foam kit, bioreactor, etc.
-
Material:
-
SS 304 316 316L
-
Size:
-
D12*H100mm, D24.5*H65mm, D12.7*H25.4mm, etc.
-
Pore size:
-
0.5um 2um 5um, 10um, 40um, etc.
-
Connector:
-
1/4" barb, 1/8" barb, 3/8" barb, etc.
-
Features:
-
Fast flow rate, good aeration effect, easy to clean, etc.
-
Max pressure:
-
5 Mpa
-
Max temperature:
-
600 degrees

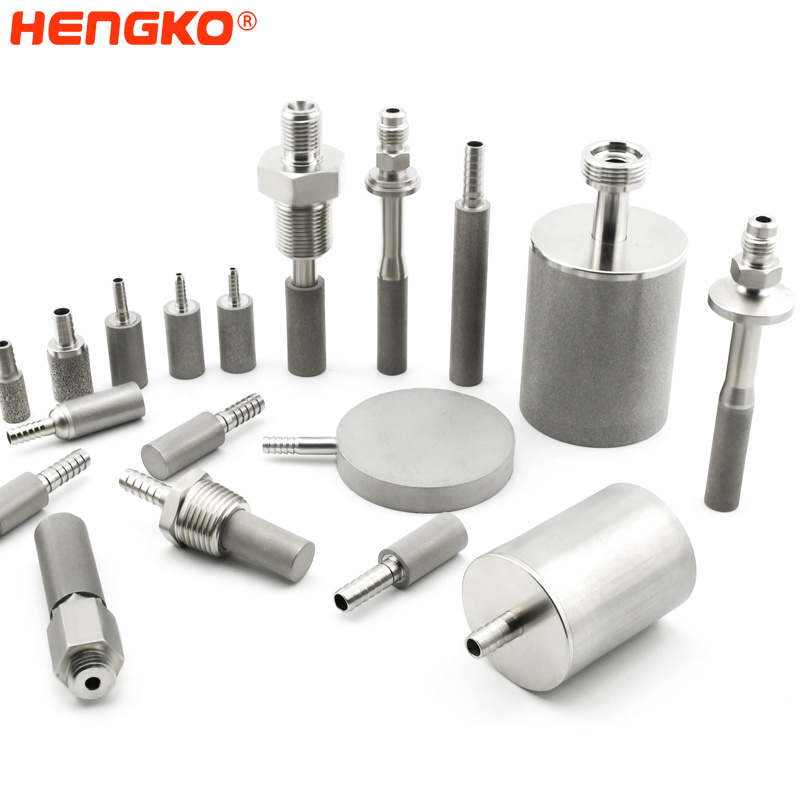

Stainless Steel Micro Porous Fine Bubble Diffuser Stone for Ozone CO2 Oxygen Gas Injection Aeration Air Stone
The air stones are widely used in beer brewing, aquaculture, fermentation, beverages,
ozone gas diffuser,
waste water treatment,
etc.
HENGKO
sintered spargers introduce gases into liquids through thousands of tiny pores, creating bubbles far smaller and more numerous than with drilled pipe and other sparging methods. The result is greater gasquid contact area, which reduces the time and volume required to dissolve gas into liquid. We calibrate our spargers to work with a variety of different gases, such as a
nitrogren sparger, air sparger, or CO2 sparger. If you require unique specifications for your sparger, we'll work with you to
create a custom sparger design solution.
Want more information or would like to receive a quote?
Click the CHAT NOW to contact our salespeople.
Click the CHAT NOW to contact our salespeople.
Product details
|
Name
|
air bubble diffuser
|
|
Model
|
H04K-00350
|
|
Dimensions
|
D39.5*H50mm, 1/4" barb
|
|
Pore Sizes
|
0.5-7um
|
|
Material
|
316L Stainless Steel
|
|
Working temperature
|
-200-600 °C
|
|
customized
|
OEM ODM
|
|
Application
|
gas diffuser, bioreactor,waste water treatment, etc.
|
Feature:
*
No pore clogging, strong corrosion resistance
*
Large area of gas-liquid boundary, uniform bubble diffusion
*
The aeration bubble is 0.1-2mm, and the aeration resistance is small
*
Without clogging millions of small holes, it is possible to quickly carbonize beer and soda before fermentation. HENGKO is very suitable for carbonation of keg beer or aerated stone before fermentation. As long as it is not greasy, it is not easy to block.
* Easy to use-just connect your oxygen regulator or aeration pump to the stainless steel diffuser and aerate your wort as the beer flows through the pipe. Connect in series with any kettle, pump or countercurrent/plate wort cooler.
* Easy to disinfect-soak the 2 micron diffuser in boiling water for 20 to 30 seconds. Do not touch the actual carbonated part of the stone with your hands.
* Easy to install or use-use 1/4" inner diameter pipe to connect to the thread on the stone. This carbonized stone can be used with an air pump without shaking the bottle
* 100% satisfaction-our goal is to provide every customer with the best service and the best product quality. Place an order with confidence. If you have any questions, please feel free to let us know. We will solve it for you unconditionally!
* Easy to use-just connect your oxygen regulator or aeration pump to the stainless steel diffuser and aerate your wort as the beer flows through the pipe. Connect in series with any kettle, pump or countercurrent/plate wort cooler.
* Easy to disinfect-soak the 2 micron diffuser in boiling water for 20 to 30 seconds. Do not touch the actual carbonated part of the stone with your hands.
* Easy to install or use-use 1/4" inner diameter pipe to connect to the thread on the stone. This carbonized stone can be used with an air pump without shaking the bottle
* 100% satisfaction-our goal is to provide every customer with the best service and the best product quality. Place an order with confidence. If you have any questions, please feel free to let us know. We will solve it for you unconditionally!
Sintered air stone diffusers are often used for porouse gas injecting. They have different pore sizes(0.5um to 100um) allowing small bubbles to flow through it. They can be used for gas transfer aeration, generating high volumes of fine, uniform bubbles often used for the treatment of wasewater, volatile stripping and steam injection. With greater gas and liquid contact area, the time and volume required to dissolve gas into liquid is reduced. This is accomplished by reducing the bubble size, which creates many tiny, slow moving bubbles that result in a large increase in absorption.
Application
1. Fermenter
The sparger can create smaller bubbles than traditional spargers with sufficient accuracy, usually ranging from 0.5 to 12 microns. And it can be used in the fermenter, like wine production, to improve cell growth in fermentation reactions by sparging oxygen.
2. Food and Beverage
Sintered porous sparger, mainly used to transfer gas into a liquid, can be widely applied in the food and beverage industry. For example, introducing co2 to beer will extend the beer's life. And sparing nitrogen to replace oxygen, juices and oils will have a long life.
3. Oxygenation
With high porosity of up to 55%, our porous sparger can generate more gases than the common sparger. So it is ideally used in fish ponds or aquariums to introduce oxygen.
4. Pharmaceutical Industry
We always use safe and non-toxic metals to fabricate porous sparger. When you need a sparger in the pharmaceutical industry, you can choose an ozone sparger. Will sanitize Water systems through the sparging zone with less adverse effects.
5. Green Chemical Industry
Normally porosity design ranges from 0.5 to 12 microns. Our sintered porous sparger can achieve high efficiency in transferring gas into the liquid. Using it in the green chemical industry can create more high-quality oxygen to maximize oxygen availability with minimized cost.
6. Microalgae Process Plant
Microalgae is widely used in cosmetics, food supplements or the pharmaceutical industry as raw material. The porous sparger is an ideal choice to increase the production rate of microalgae biomass and products in a photobioreactor. Therefore, you can obtain large profits with fewer costs.
7. Bioreactor
HENGKO air sparger can be better used in the bioreactor with better chemical properties. Our sparger will offer sufficient air or pure oxygen for the bioreactor, improving this reaction created by enzymes or organisms.
8. Hydrogenation
You can use HENGKO's porous sparger to sparger hydrogen for a series of chemical reaction processes, like hydrogen water filter and hydrogen-rich water maker. Furthermore, nano-sized hydrogen bubbles will be generated, making them easier to combine with water molecules.
Please Note:
Clean the diffusion stone thoroughly before and after use.
It is necessary to install an air filter to ensure the air goes through is clean.
To avoid getting clogged, don't use your bare hands to touch the surface of aeration stone
