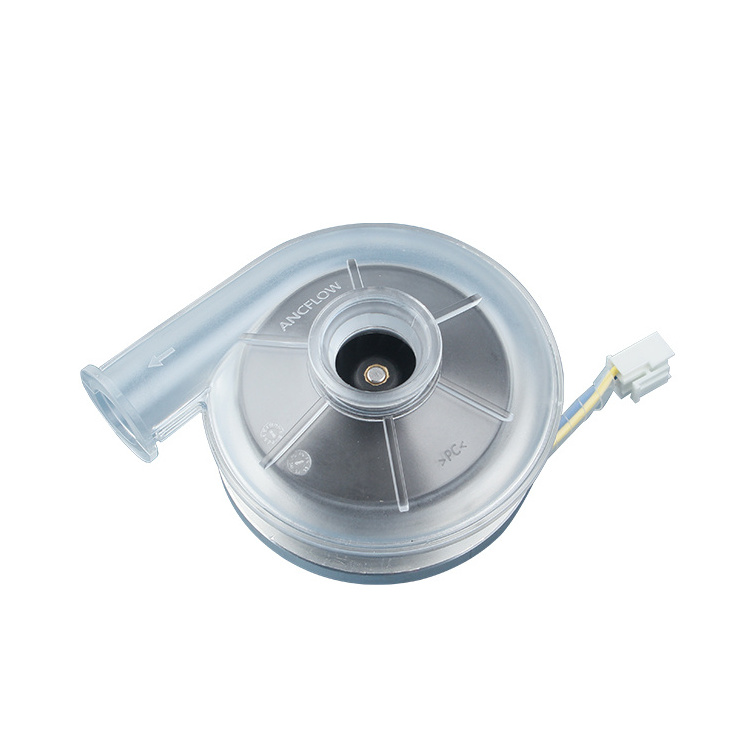

Professional Heat Resistant Centrifugal Blower Industrial Cooling small centrifugal blower

Product Model

C8003-1

Brand

ANCFLOW

SPEC

AB C8003-24/48V-17.0kPa-1000LPM

max.Speed

52500rpm

Part Name

Brushless DC Blower

max.Airflow

1000LPM(60.0m³/h)

Motor Driver

AC06

max.Static Pressure

16.0kPa

Service Life

20,000h

Rated Speed

47,500rpm

Rated Voltage

12/24/48 VDC

Rated Airflow

453 LPM(27.2m³/h)

Voltage Range

24VDC:14-28V
48VDC:6-60V

Rated Static Pressure

12.0kPa

Peak Power

226W

Environmental Temperature

-20℃~+50℃

Rated Power

178W

Humidity

≤85%RH

Mass

300g

Motor Driver

External

Size

85.3(L)*82.2(W)*60.9(H)mm

Speed Control

PWM or 0-5V

Volute Material

PC

Impeller Material

PA6

Application Scenarios

medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking,household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator and so on.
