Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XYT
-
Model Number:
-
JGY-370 Single Shaft Encoder
-
Torque:
-
1.5kg.cm-25kg.cm
-
Motor Diameter:
-
R 24.4mm
-
Motor Body Length:
-
30.8mm
-
Output Shaft Diameter:
-
6mm
-
Output Shaft Length:
-
14mm
-
Hall precision:
-
11 PPR
-
Motor Type:
-
Dc Brush Gear Motor
-
Material:
-
Silicon Steel
-
Application:
-
Home Applicance
-
Product Name:
-
12v 6 Volt Price Mini Encoder Brushed Geared Electric Dc Motor Jgy370
-
Feature:
-
Hall Sensor Brushless Motor
Quick Details
-
Speed(RPM):
-
6-210RPM
-
Continuous Current(A):
-
60mA
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XYT
-
Model Number:
-
JGY-370 Single Shaft Encoder
-
Torque:
-
1.5kg.cm-25kg.cm
-
Motor Diameter:
-
R 24.4mm
-
Motor Body Length:
-
30.8mm
-
Output Shaft Diameter:
-
6mm
-
Output Shaft Length:
-
14mm
-
Hall precision:
-
11 PPR
-
Motor Type:
-
Dc Brush Gear Motor
-
Material:
-
Silicon Steel
-
Application:
-
Home Applicance
-
Product Name:
-
12v 6 Volt Price Mini Encoder Brushed Geared Electric Dc Motor Jgy370
-
Feature:
-
Hall Sensor Brushless Motor
Our Advantages

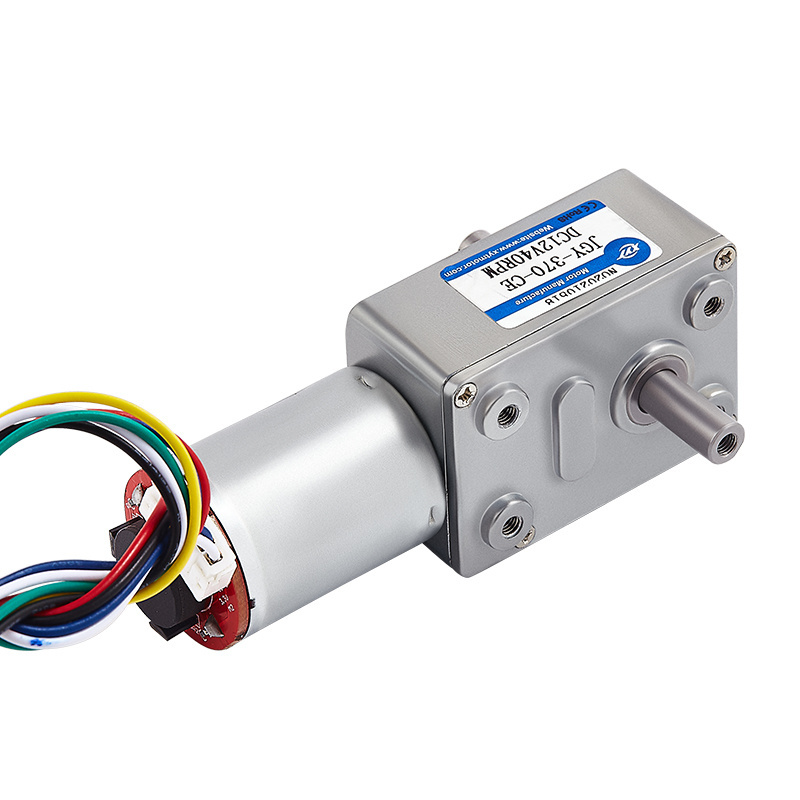

Products Description
|
Brand
|
Xinyongtai /Customer’s Brand
|
|
Model
|
JGY-370 Hall Encoder
|
|
Name
|
DC Worm Geared Motor
|
|
Voltage
|
6V / 12V / 24V
|
|
Power
|
1-3W
|
|
No-load Speed
|
6-210
RPM
|
|
Electric Current
|
600mA
|
|
Product Shaft Diameter
|
6MM
(Can be customise)
|
|
Product Shaft Length
|
14MM
|
|
Maximum Torque
|
25
KG.CM
|
|
Weight
|
160g(APPROX)
|
|
Whether to adjust the speed
|
Yes
|
|
Whether forward or reverse
|
Yes
|
|
Model：XYT-JGY-370-0660
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Reduction ratio
|
No-Load
|
|
|
Rated Load
|
|
|
|
Stall
|
|
|||||||||
|
|
Rated Voltage (V)
|
Speed (RPM ±10%)
|
Current (A)
|
Speed (RPM ±10%)
|
Current (A)
|
Torque (Kg,cm)
|
Power(W)
|
Torque (Kg.cm)
|
Current (A)
|
|||||||||
|
40
|
6
|
150
|
0.10
|
100
|
0.6
|
1.20
|
1.26
|
2.5
|
1.8
|
|||||||||
|
65
|
6
|
90
|
0.10
|
70
|
0.6
|
2.00
|
1.47
|
4
|
1.8
|
|||||||||
|
150
|
6
|
40
|
0.10
|
30
|
0.6
|
4.50
|
1.41
|
9
|
1.8
|
|||||||||
|
200
|
6
|
30
|
0.10
|
22
|
0.6
|
6.00
|
1.38
|
12.5
|
1.8
|
|||||||||
|
260
|
6
|
23
|
0.10
|
17
|
0.6
|
8.00
|
1.42
|
16
|
1.8
|
|||||||||
|
340
|
6
|
18
|
0.10
|
13
|
0.6
|
12.00
|
1.63
|
25
|
1.8
|
|||||||||
|
600
|
6
|
10
|
0.10
|
7
|
0.6
|
17.00
|
1.25
|
25
|
1.8
|
|||||||||
|
1000
|
6
|
6
|
0.10
|
4
|
0.6
|
25.00
|
1.05
|
25
|
1.8
|
|||||||||
|
Model：XYT-JGY-370-1260
|
12
|
42
|
0.51
|
33
|
1.275
|
27.6
|
15.0
|
256
|
19.3
|
|||||||||
|
40
|
12
|
150
|
0.06
|
100
|
0.5
|
1.20
|
1.26
|
2.5
|
1.3
|
|||||||||
|
65
|
12
|
90
|
0.06
|
70
|
0.5
|
2.00
|
1.47
|
4
|
1.3
|
|||||||||
|
150
|
12
|
40
|
0.06
|
30
|
0.5
|
4.50
|
1.41
|
9
|
1.3
|
|||||||||
|
200
|
12
|
30
|
0.06
|
22
|
0.5
|
6.00
|
1.38
|
12.5
|
1.3
|
|||||||||
|
260
|
12
|
23
|
0.06
|
17
|
0.5
|
8.00
|
1.42
|
16
|
1.3
|
|||||||||
|
340
|
12
|
18
|
0.06
|
13
|
0.5
|
12.00
|
1.63
|
21
|
1.3
|
|||||||||
|
600
|
12
|
10
|
0.06
|
7
|
0.5
|
17.00
|
1.25
|
35
|
1.3
|
|||||||||
|
1000
|
12
|
6
|
0.06
|
4
|
0.5
|
25.00
|
1.05
|
35
|
1.3
|
|||||||||
|
Model：XYT-JGY-370-2460
|
24
|
1544
|
0.25
|
1290
|
0.75
|
1.1
|
18
|
6.5
|
1.7
|
|||||||||
|
40
|
24
|
150
|
0.04
|
100
|
0.2
|
1.20
|
1.26
|
2.5
|
0.6
|
|||||||||
|
65
|
24
|
90
|
0.04
|
70
|
0.2
|
2.00
|
1.47
|
4
|
0.6
|
|||||||||
|
150
|
24
|
40
|
0.04
|
30
|
0.2
|
4.50
|
1.41
|
9
|
0.6
|
|||||||||
|
200
|
24
|
30
|
0.04
|
22
|
0.2
|
6.00
|
1.38
|
12.5
|
0.6
|
|||||||||
|
260
|
24
|
23
|
0.04
|
17
|
0.2
|
8.00
|
1.42
|
16
|
0.6
|
|||||||||
|
340
|
24
|
18
|
0.04
|
13
|
0.2
|
12.00
|
1.63
|
21
|
0.6
|
|||||||||
|
600
|
24
|
10
|
0.04
|
7
|
0.2
|
17.00
|
1.25
|
35
|
0.6
|
|||||||||
|
1000
|
24
|
6
|
0.04
|
4
|
0.2
|
25.00
|
1.05
|
35
|
0.6
|
|||||||||
|
Model：XYT-JGY-370-1285
|
24
|
21
|
0.26
|
18
|
0.75
|
57.5
|
18
|
300
|
1.7
|
|||||||||
|
40
|
12
|
210
|
0.08
|
160
|
0.6
|
1.70
|
2.85
|
6.4
|
3.6
|
|||||||||
|
65
|
12
|
130
|
0.08
|
100
|
0.6
|
2.60
|
2.72
|
10
|
3.6
|
|||||||||
|
150
|
12
|
55
|
0.08
|
40
|
0.6
|
6.00
|
2.51
|
24
|
3.6
|
|||||||||
|
200
|
12
|
40
|
0.08
|
30
|
0.6
|
8.00
|
2.51
|
25
|
3.6
|
|||||||||
|
260
|
12
|
32
|
0.08
|
24
|
0.6
|
10.00
|
2.51
|
25
|
3.6
|
|||||||||
|
340
|
12
|
25
|
0.08
|
20
|
0.6
|
13.00
|
2.72
|
25
|
3.6
|
|||||||||
|
600
|
12
|
14
|
0.08
|
10
|
0.6
|
24.00
|
2.51
|
25
|
3.6
|
|||||||||
|
1000
|
12
|
8
|
0.08
|
6
|
0.6
|
25.00
|
1.57
|
25
|
3.6
|
|||||||||
|
The engineer recommends： Recommended that the load not exceed 25KG,CM
|
|
|
|
|
|
|
|
|
|
|||||||||
Manufacturer kindly suggestion
1) If the load more than the rated torque, the motor will be damaged.
2) If you connect the voltage less than the rated voltage, the rated torque will be reduced.
3) Please tell us real load ,so we can choose the best match torque motor for you .
If you are using the product normally, the torque does not exceed the rated torque.
Motor life: 10,000 hours
Gearbox life: 2000 hours
1) If the load more than the rated torque, the motor will be damaged.
2) If you connect the voltage less than the rated voltage, the rated torque will be reduced.
3) Please tell us real load ,so we can choose the best match torque motor for you .
If you are using the product normally, the torque does not exceed the rated torque.
Motor life: 10,000 hours
Gearbox life: 2000 hours
