Quick Details
-
Dimension(L*W*H):
-
2290*1525*2285mm
-
Power (kW):
-
4
-
Weight (KG):
-
3000 KG
-
Product Name:
-
Automatic keyway metal slotter B5020 B5032 slotting machine price
-
Max Slotting length:
-
300mm
-
Table Diameter:
-
630mm
-
Max Workpiece Size:
-
600*320mm
-
Max Longintudinal travel:
-
620mm
-
Max Horizontal travel:
-
560mm
-
Max Load on Table:
-
500Kg
-
Max Tool Shank Size:
-
25*40mm
-
No of ram strokes per minute:
-
20.32,50,80
-
Keyword:
-
slotting machine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIPOW
-
Voltage:
-
220/380/400/415V
-
Dimension(L*W*H):
-
2290*1525*2285mm
-
Power (kW):
-
4
-
Weight (KG):
-
3000 KG
-
Product Name:
-
Automatic keyway metal slotter B5020 B5032 slotting machine price
-
Max Slotting length:
-
300mm
-
Table Diameter:
-
630mm
-
Max Workpiece Size:
-
600*320mm
-
Max Longintudinal travel:
-
620mm
-
Max Horizontal travel:
-
560mm
-
Max Load on Table:
-
500Kg
-
Max Tool Shank Size:
-
25*40mm
-
No of ram strokes per minute:
-
20.32,50,80
-
Keyword:
-
slotting machine
|
|

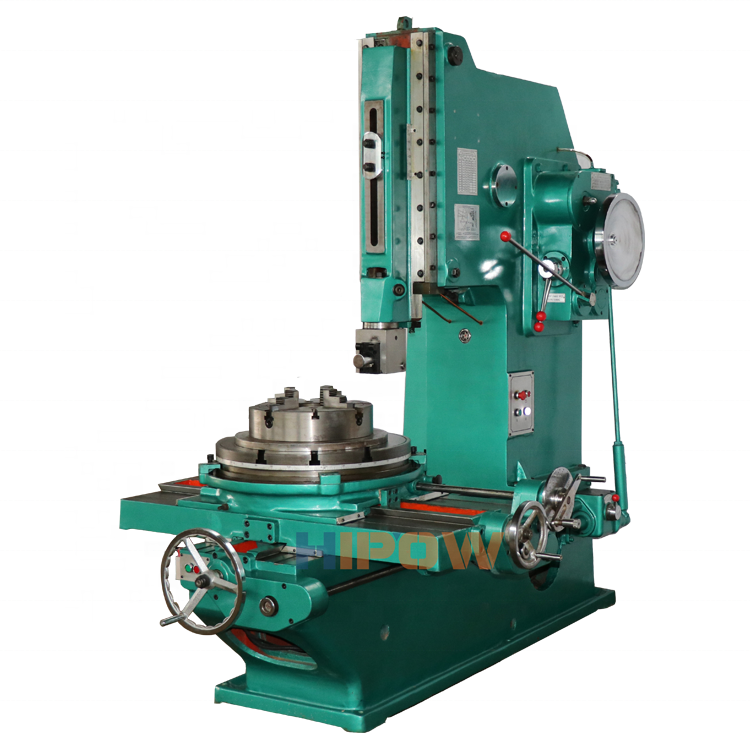

Automatic keyway metal slotter B5020 B5032 slotting machine price
|
|
Main Feature . 1 . B5032 slotting machine is used for slotting the flat and formed surface keyways 2. B5032 slotting machine is suitable for either single piece of small batch production 3. B5032 slotting machine`s main transmission mechanism is used for converting the rotating motion of the crank gear into reciprocating motion of rain 4. B5032 slotting machine`s worktable Is designed for longitudinal, cross and rotary feeding both automatically (only for D type model) and manually 5. B5032 slotting machine is stopped automatically, when the worktable is in case of trouble
|
|
Model |
B5032 |
|
Max Slotting length(260mm for internal slotting) |
300mm |
|
Max Workpiece Size |
600*320mm |
|
Max Load on Table |
500KG |
|
Max Cutting Force |
7500N |
|
No of ram strokes per minute |
20.32,50,80 |
|
Vertical adjustment of ram |
315mm |
|
Inclination of Ram |
0-8 ° |
|
Max Tool Shank Size |
25*40mm |
|
Table Diameter |
630mm |
|
Max Longintudinal travel |
620mm |
|
Max Horizontal travel |
560mm |
|
Distance from table surface to low end of ram |
490mm |
|
Distance from tool holding surfect to column |
600mm |
|
Range of longtudinal and horizontal power feed |
0.08---1.21 |
|
Range of table rotary power feed |
0.052-0.783 deg |
|
Main motor(Kw) |
4KW |
|
Main motor speed |
960rpm |
|
Overall Size(mm) |
2290*1525*2285 |
|
Net Weight(KG) |
3500 |
