- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SOSLLI
-
Model Number:
-
SSL-IFR8S2PE1000
-
Battery Size:
-
LFP
-
Place of Origin:
-
China
-
Weight:
-
46KG
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Product name:
-
24V 200Ah LiFePO4 battery
-
Brand:
-
SOSLLI or OEM
-
Model:
-
SSL-IFR8S2PE100
-
Nominal Voltage (V):
-
24V
-
Nominal Capacity (Ah):
-
100Ah
-
Battery type:
-
LiFePO4 battery
-
Cycle life:
-
2000 Times
-
Certification:
-
CE, RoSH, MSDS, UN38.3
-
Warranty:
-
12 Months, 1 YEAR
Quick Details
-
Storage Type:
-
FREE MAINTAIN
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
SOSLLI
-
Model Number:
-
SSL-IFR8S2PE1000
-
Battery Size:
-
LFP
-
Place of Origin:
-
China
-
Weight:
-
46KG
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Product name:
-
24V 200Ah LiFePO4 battery
-
Brand:
-
SOSLLI or OEM
-
Model:
-
SSL-IFR8S2PE100
-
Nominal Voltage (V):
-
24V
-
Nominal Capacity (Ah):
-
100Ah
-
Battery type:
-
LiFePO4 battery
-
Cycle life:
-
2000 Times
-
Certification:
-
CE, RoSH, MSDS, UN38.3
-
Warranty:
-
12 Months, 1 YEAR

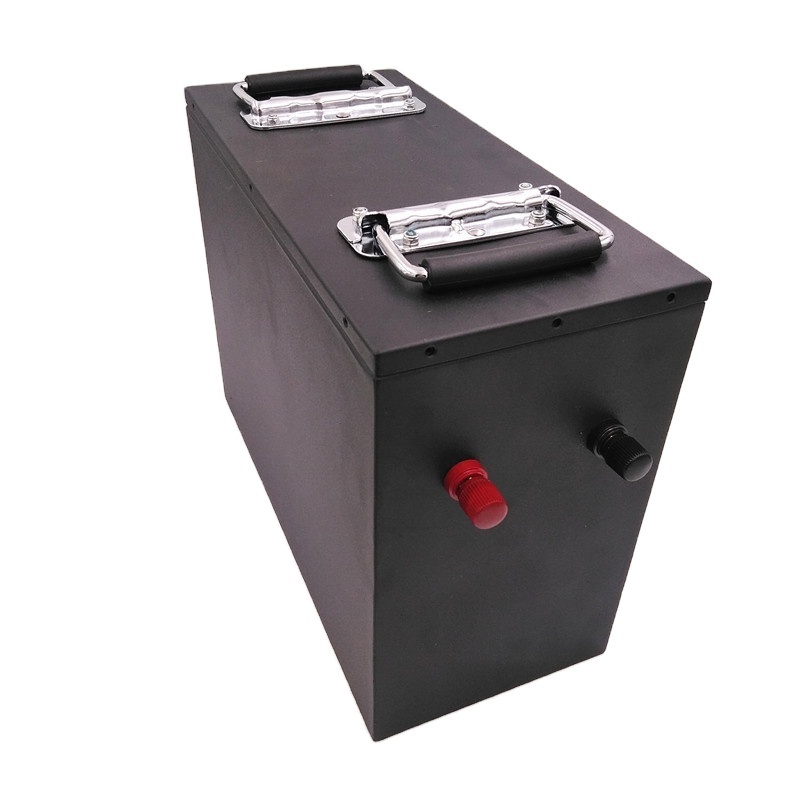

24V 200Ah lithium iron phosphate LiFePO4 battery pack for Energy storage,yacht,rv battery, fork lift,sweeper :
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | SOSLLI or OEM | ||
| 2 | Model NO. | SSL-IFR8S2PE1000 | ||
| 3 | Norminal Capacity | 200Ah | 0.2 C 5 A discharge | |
| 4 | Norminal Voltage | 25.6V | ||
| 5 | Discharge Voltage (Min.) | 20.0V | ||
| 6 | Charging Voltage (Max.) | 29.2V | ||
| 7 | Charging Current (std.) | 0.25 C 5 A 40A | ||
| 8 | Discharging Current (Max. continue) | 0.5 C 5 A 100A | ||
| 9 | Discharging Current (Max. temporary) | 0.75 C 5 A 150A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
| 13 | Battery Cell | Prismatic LiFePO4 battery 3.2V 100Ah | ||
| 14 | Battery Box Size |
Box: 34cm*28cm*25cm Red/black pole: 27mm |
||
| 15 | Protection Fuctions |
Over charge, Over discharge,
Over load, Short Circuit |
||
| 16 | BMS | include | ||
| 17 | Weight | Approx. 36kg | ||
| 18 | Cycle Life | 2000 times | ||
| 19 | Warranty | 12 months | ||
Typical Advantage of SOSLLI's lithium Ion battery:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging and no memory effect.
3. Longer cycle life more than 2000 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
