1. can be the field of hydrogen production by electrolysis of water.
2. can be PEM electrolyzer diffusion layer.
3. can be hydrogen fuel.
4. can be used for hydeogen suction machine,
5. hydrogen-rich water dispenser and hydrogen-rich cup.
- Product Details
- {{item.text}}
Quick Details
-
Elongation (≥ %):
-
50
-
Place of Origin:
-
Hebei, China
-
Application:
-
nickel foam cathode
-
Grade:
-
Nickel
-
Ni (Min):
-
99.6%
-
Model Number:
-
AGS-NIFOAM
-
Brand Name:
-
AEGIS
-
Product name:
-
20mm 15ppi 20ppi 35ppi 40ppi porous metal foam nickel
-
Color:
-
Silver
-
Keyword:
-
metal nickel foam
-
Thickness:
-
0.25-20mm
-
Porosity:
-
50-60% 60-70% 70-80%
-
Size:
-
20*20cm
Quick Details
-
Resistance (μΩ.m):
-
52
-
Powder Or Not:
-
Not Powder
-
Ultimate Strength (≥ MPa):
-
520
-
Elongation (≥ %):
-
50
-
Place of Origin:
-
Hebei, China
-
Application:
-
nickel foam cathode
-
Grade:
-
Nickel
-
Ni (Min):
-
99.6%
-
Model Number:
-
AGS-NIFOAM
-
Brand Name:
-
AEGIS
-
Product name:
-
20mm 15ppi 20ppi 35ppi 40ppi porous metal foam nickel
-
Color:
-
Silver
-
Keyword:
-
metal nickel foam
-
Thickness:
-
0.25-20mm
-
Porosity:
-
50-60% 60-70% 70-80%
-
Size:
-
20*20cm
Product prices are for reference only, please contact customer service for specific prices.
7x24 hours online service!
7x24 hours online service!
Product Description
Super capacitor button nickel foam 15ppi 20ppi 35ppi 40ppi porous nickel metal foam 20mm

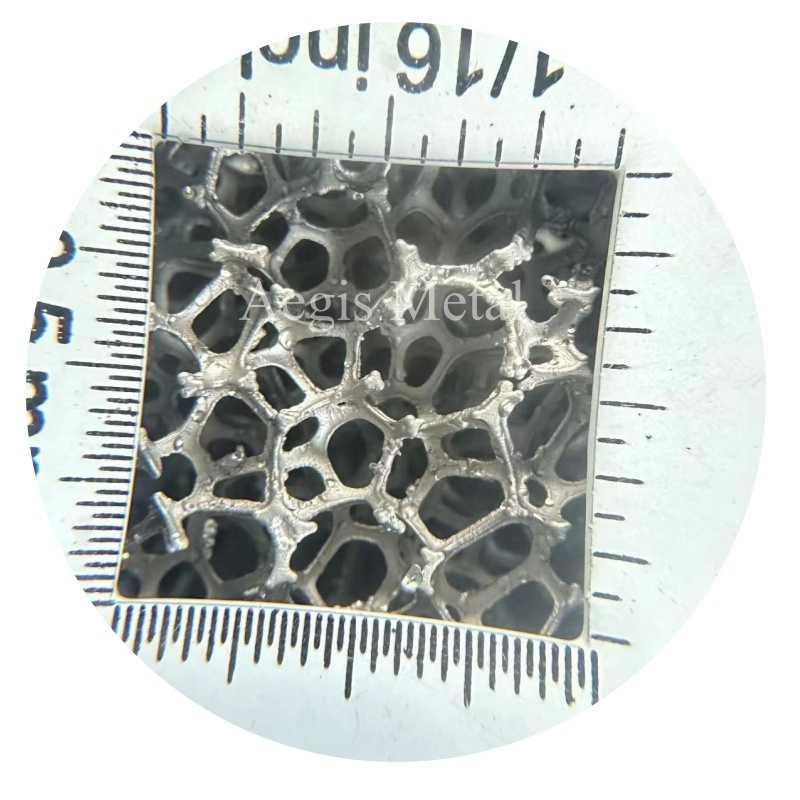

Nickel foam is a porous nickel filter made of industrial high-purity nickel powder (99.6% and 0.4% are nickel alloys: nitrogen, hydrogen, iron, manganese, etc.) as raw materials, after screening, cold isostatic pressing and sintering at high temperature and high vacuum.
Foam nickel plate features:
1. Sound absorption: The porous structure has the characteristics of wide frequency sound absorption.
2. Sound insulation: through additional processing, a high noise interception can be achieved with good sound insulation effect.
3. Electronic wave shielding: about 90dB electronic wave shielding.
4. Processing performance: It can cut, bend and simply stick.
5. Fire resistance: keep the shape stable, difficult to burn under high temperature, high temperature resistance.
6. Strong thermal conductivity.
7. It has good permeability and filtering function, and the flow stability of gas and fluid is excellent.
8. It is resistant to high temperature of more than 1100 ° C, acid and alkali corrosion, uniform pore structure, and fast heating and heat transfer.
1. Uniform structure, narrow pore size distribution and high separation efficiency.
2. High porosity, low filtration resistance and high permeability.
3. It is resistant to high temperature and can normally be used below 280 ℃.
4. Good chemical stability, acid and alkali corrosion resistance, oxidation resistance.
5. No particles fall off, no secondary pollution of the original solution, and meet the requirements of food hygiene and pharmaceutical GMP.
6. Good mechanical performance, pressure filtration and suction filtration, simple operation.
7. Low differential pressure, small floor area and large flow.
8. It has strong anti microbial ability and does not interact with microorganisms.
9. The forming process is good, and the overall length without welding can reach 1000mm.
10. It can be regenerated online, easy to clean, and has a long service life (usually several times of the membrane filter element)
Specification
|
Product name
|
nickel foam, sintered nickel foam
|
|
Other material
|
Ta1, Nickel, stainless steel, FeCrAl alloy, and other matetials.
|
|
Thickness
|
0.25mm, 0.4mm, 0.6mm, 0.8mm etc.
|
|
Porosity
|
50-60%, 60-70%, 70-80%
|
|
Features
|
Heat resistant, Corrosion resistant
|
|
Size
|
100mm-680mm, other size can be custom.
|
Stainless steel metal foam
Aluminum foam
Copper metal foam
Titanium foam application:
Related Products
Titanium powder sintered filter
Sintered titanium wire mesh filter
Titanium woven wire mesh
Packing & Delivery
Super capacitor button nickel foam 15ppi 20ppi 35ppi 40ppi porous nickel metal foam 20mm
can be packeged in carton or wooden box. Or custom as your requirement.
