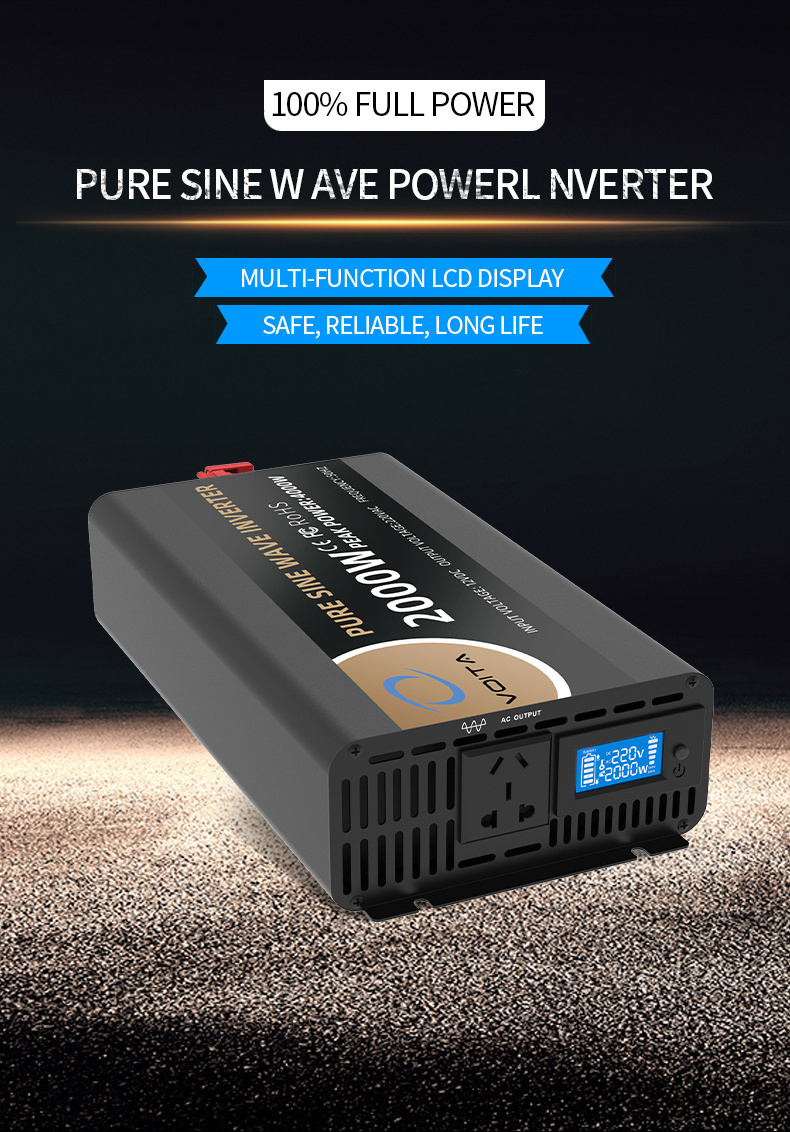

1.The inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is pure.
2.The unique dynamic current loop control technology ensures reliable operation of the inverter.
3.Load adaptability, including inductive load, capacitive load, resistive load, mixed load.
4.Heavy load capacity and impact resistance.
5.It has perfect protection functions such as input overvoltage, undervoltage, overload, overheat, and output short circuit.

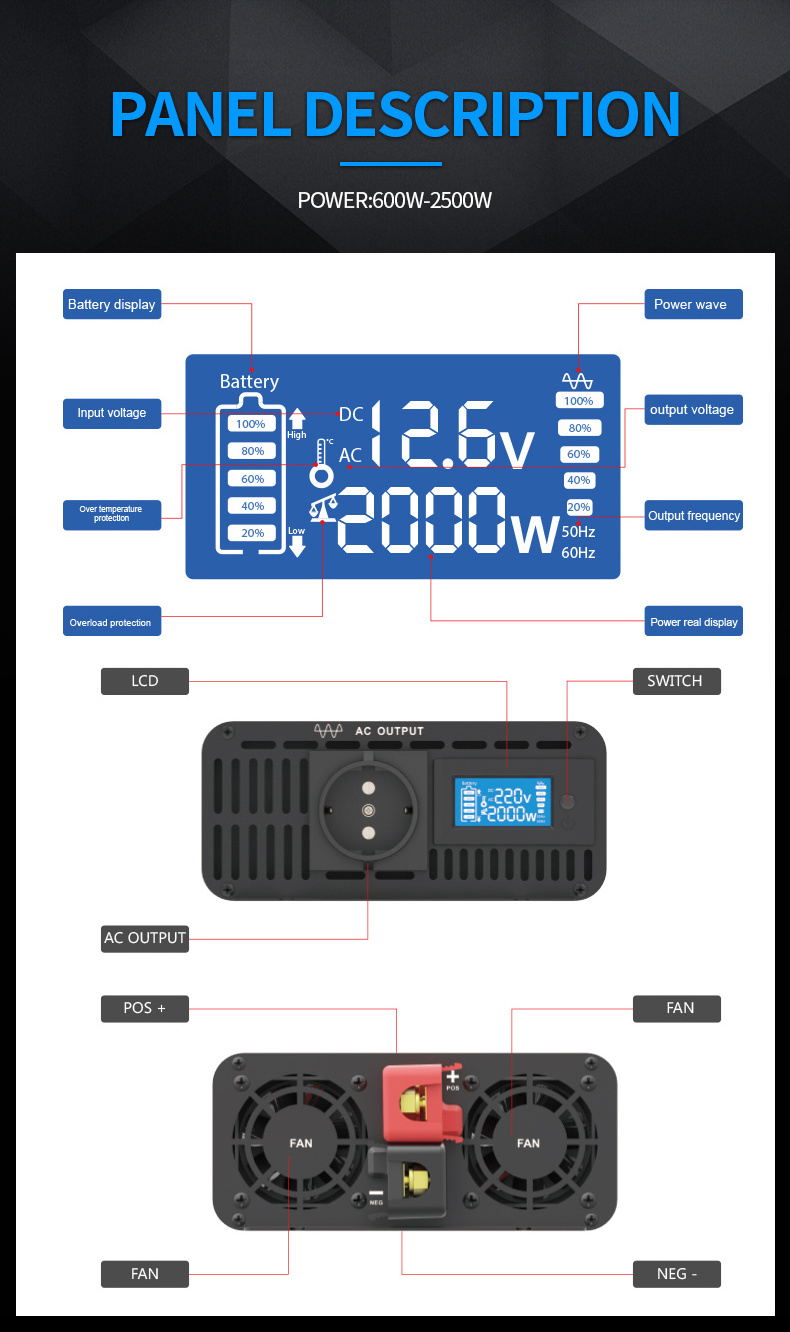

6.The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.
7.Stable performance, safe and reliable, long service life.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VOITA, Voita
-
Model Number:
-
VT-2000Z
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
360*173*76mm
-
Weight:
-
4kg
-
Color:
-
Dark gray
-
Warranty:
-
1 year
-
Lead Time:
-
3-7days
-
Have in stock:
-
YES
-
OEM:
-
YES
-
Application:
-
air conditioner/refrigerator
-
shell:
-
aluminum shell
-
Feature:
-
Stable performance, safe and reliable, long service life
-
Display:
-
LCD
-
Certificate:
-
CE ROHS
Quick Details
-
Output Current:
-
/
-
Network:
-
/
-
Customized support:
-
YES
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VOITA, Voita
-
Model Number:
-
VT-2000Z
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
360*173*76mm
-
Weight:
-
4kg
-
Color:
-
Dark gray
-
Warranty:
-
1 year
-
Lead Time:
-
3-7days
-
Have in stock:
-
YES
-
OEM:
-
YES
-
Application:
-
air conditioner/refrigerator
-
shell:
-
aluminum shell
-
Feature:
-
Stable performance, safe and reliable, long service life
-
Display:
-
LCD
-
Certificate:
-
CE ROHS

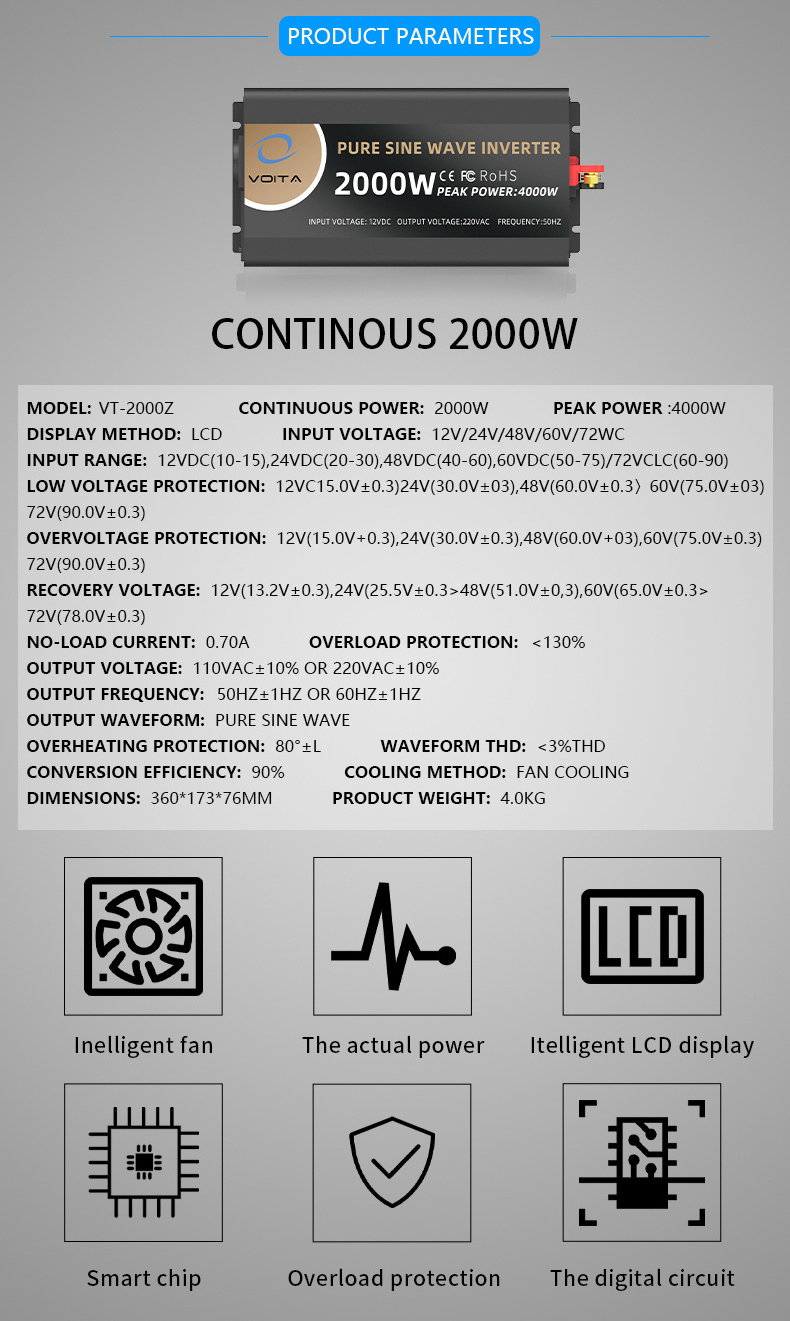

Specification
|
Model
|
VT-2000Z
|
VT-3000Z
|
VT-4000W
|
VT-5000W
|
|||
|
Output power
|
2000W
|
3000W
|
4000W
|
5000W
|
|||
|
Display method
|
LCD Display
|
LCD Display
|
LCD Display
|
LCD Display
|
|||
|
Input voltage
|
12V/24V/48V/60V/72Vdc
|
|
|
|
|||
|
Input range
|
12Vdc(10-15),24Vdc(20-30),48Vdc(40-60),60Vdc(50-75),72Vdc(60-90)
|
|
|
|
|||
|
Low voltage protection
|
12V(10.0V±0.3),24V(20.0V±0.3),48V(40.0V±0.3),60V(50.0V±0.3),72V(60.0V±0.3)
|
|
|
|
|||
|
Overvoltage protection
|
12V(15.0V±0.3),24V(30.0V±0.3),48V(60.0V±0.3),60V(75.0V±0.3),72V(90.0V±0.3)
|
|
|
|
|||
|
Recovery voltage
|
12V(13.2V±0.3),24V(25.5V±0.3),48V(51.0V±0.3),60V(65.0V±0.3),72V(78.0V±0.3)
|
|
|
|
|||
|
No-load current
|
0.8A
|
1A
|
1A
|
1A
|
|||
|
Overload protection
|
2000W＞110%
|
3000W＞110%
|
4000W＞110%
|
5000W＞110%
|
|||
|
Output voltage
|
110V/220Vac
|
|
|
|
|||
|
Output frequency
|
50Hz/60Hz
|
|
|
|
|||
|
Output waveform
|
Pure sine wave
|
|
|
|
|||
|
Overheating protection
|
80°±5°
|
|
|
|
|||
|
Waveform THD
|
≤3%
|
|
|
|
|||
|
Conversion efficiency
|
90%
|
|
|
|
|||
|
Cooling method
|
Fan cooling
|
|
|
|
|||
|
Dimensions
|
360*173*76mm
|
400*242*88mm
|
400*242*88mm
|
400*242*88mm
|
|||
|
Product weight
|
4kg
|
8kg
|
8.5kg
|
9kg
|
|||
