Quick Details
-
Jacket:
-
NO
-
Place of Origin:
-
Henan, China, Henan, China
-
Brand Name:
-
aoguli
-
Model Number:
-
OEM
-
Certificate:
-
ISO9001/CCC
-
Export Country:
-
Philippine,Yemen,Vietnam, Indonesia,Indonesia,Africa, Euro
-
Price:
-
Get within 12 hours
-
Standard:
-
nfc 33209/ OECA/BS/NBR/GBT/SIP2/SIP4/SIP6
-
MOQ:
-
100 Metres
-
Rated voltage:
-
600/1000 Volts
-
Item name:
-
overhead power cable
-
Product name:
-

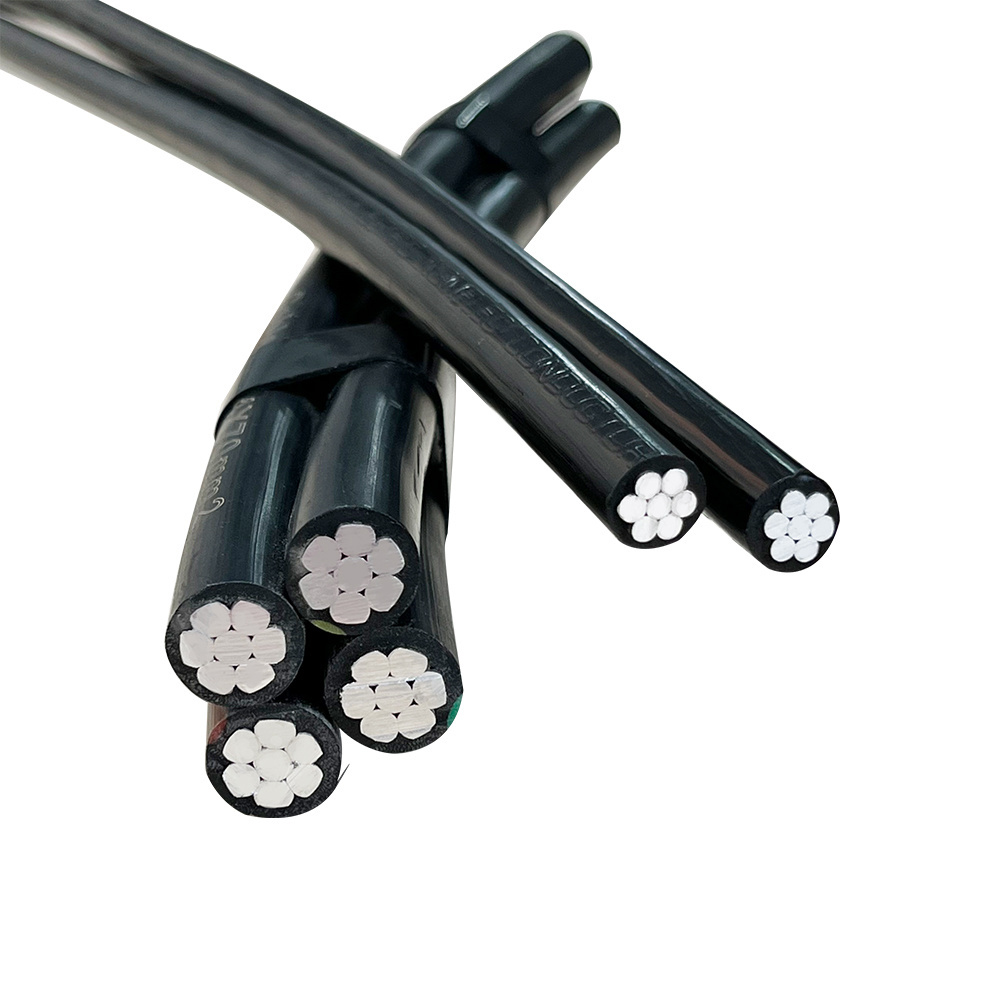

ABC CABLE
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Overhead
-
Conductor Material:
-
Aluminum
-
Jacket:
-
NO
-
Place of Origin:
-
Henan, China, Henan, China
-
Brand Name:
-
aoguli
-
Model Number:
-
OEM
-
Certificate:
-
ISO9001/CCC
-
Export Country:
-
Philippine,Yemen,Vietnam, Indonesia,Indonesia,Africa, Euro
-
Price:
-
Get within 12 hours
-
Standard:
-
nfc 33209/ OECA/BS/NBR/GBT/SIP2/SIP4/SIP6
-
MOQ:
-
100 Metres
-
Rated voltage:
-
600/1000 Volts
-
Item name:
-
overhead power cable
-
Product name:
-
ABC CABLE
Application:
Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way.
Installed as an uninsulated conductor; however, covering is effective in preventing direct shorts and instantaneous flashovers
should tree limbs or other objects contact conductors in such close proximity.
The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation;
particularly useful in congested areas such as alleyways or tight corridors.
|
Phase
|
Phase
|
|
Phase
|
|
|
Approx. Overall Diameter
|
Max. D. C. Resistance of Conductor at 20 Centigrade
|
|||
|
AAC+XLPE
|
Compact Conductor
|
|
XLPE Insulation
|
|
|
|
|
|||
|
No. X Normal Cross Section of Cores
|
No. Of Al Wires
|
Overall Diameter
|
Normal Thickness
|
Min.
|
Diameter
|
|
|
|||
|
No. X mm 2
|
-
|
mm
|
mm
|
mm
|
mm
|
mm
|
Ohm/km
|
|||
|
1 X 10
|
7
|
4.05
|
1.0
|
0.8
|
6.05
|
6.05
|
3.08
|
|||
|
1 X 16
|
7
|
4.8
|
1.2
|
0.98
|
7.2
|
7.20
|
1.91
|
|||
|
1 X 25
|
7
|
6
|
1.2
|
0.98
|
8.4
|
8.40
|
1.20
|
|||
|
1 X 35
|
7
|
7.0
|
1.4
|
1.16
|
9.8
|
9.80
|
0.868
|
|||
|
1 X 50
|
7
|
8.3
|
1.4
|
1.16
|
11.1
|
11.10
|
0.641
|
|||
|
1 X 70
|
19
|
9.8
|
1.4
|
1.16
|
12.6
|
12.60
|
0.443
|
|||
|
1 X 95
|
19
|
11.6
|
1.6
|
1.34
|
14.8
|
14.80
|
0.320
|
|||
|
1 X 120
|
19
|
13
|
1.6
|
1.34
|
16.2
|
16.20
|
0.253
|
|||
|
1 X 150
|
19
|
14.6
|
1.8
|
1.52
|
18.2
|
18.20
|
0.206
|
|||
|
1 X 185
|
36
|
16.2
|
2.0
|
1.70
|
20.2
|
20.20
|
0.164
|
|||
|
1 X 240
|
36
|
18.4
|
2.2
|
1.88
|
22.8
|
22.80
|
0.125
|
|||
|
2 X 10
|
7
|
4.05
|
1.0
|
0.8
|
6.05
|
12.10
|
3.08
|
|||
|
2 X 16
|
7
|
4.8
|
1.2
|
0.98
|
7.2
|
14.40
|
1.91
|
|||
|
2 X 25
|
7
|
6
|
1.2
|
0.98
|
8.4
|
16.80
|
1.20
|
|||
|
2 X 35
|
7
|
7.0
|
1.4
|
1.16
|
9.8
|
19.60
|
0.868
|
|||
|
2 X 50
|
7
|
8.3
|
1.4
|
1.16
|
11.1
|
22.20
|
0.641
|
|||
|
2 X 70
|
19
|
9.8
|
1.4
|
1.16
|
12.6
|
25.20
|
0.443
|
|||
Q: How to ensure payment security for first business ? A: You can pay by Alibaba and it will keep your money safe and safeguard
the rights and interests of buyers. Q: Could you send us your technical sheet ?
A: Yes,we can send you technical sheet anddrawings.
Q: Can I get a discount ?
A: It based on your purchasing quantity and if we cooperate long time.
Q: When will you get the quotation ?
A: As your inquiry all clearly within 24 hours.
Q: Can we see our product producing process ?
A: Yes, we can take video and pictures to you.
Q: Where is your factory address ?
A: Cable factory : Macun area ,Jiaozuo city ,Henan provice .
Q:Could you help us load others goods with your goods in one container ?
A: Yes.We can help to load your others goods together inour factory.
