Quick Details
-
Filling Accuracy:
-
+-0.5%
-
Voltage:
-
220V/110V 50-60Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YUGANG MACHINE
-
Dimension(L*W*H):
-
970*570*970mm
-
Weight:
-
38 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Machine Construction:
-
High grade SUS 304, material touched parts are SS 316.
-
Accuracy:
-
±0.5%
-
Filling Range:
-
100-1000ml
-
Pneumatic Parts:
-
Authentic Parts are all AIRTAC or FESTO,with high quality
-
Service:
-
Supply technical supporting and spare parts anytime.
-
Additional Device:
-
Conveyor Available
-
Use Life:
-
Use Life
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, Viet Nam, Russia, Spain, Thailand, Australia, Morocco, Chile, UAE, Colombia, Algeria, Romania
-
Certification:
-
CE
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Machinery Capacity:
-
400BPH, 500BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Glass, Metal, Plastic, Wood
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
+-0.5%
-
Voltage:
-
220V/110V 50-60Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YUGANG MACHINE
-
Dimension(L*W*H):
-
970*570*970mm
-
Weight:
-
38 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Machine Construction:
-
High grade SUS 304, material touched parts are SS 316.
-
Accuracy:
-
±0.5%
-
Filling Range:
-
100-1000ml
-
Pneumatic Parts:
-
Authentic Parts are all AIRTAC or FESTO,with high quality
-
Service:
-
Supply technical supporting and spare parts anytime.
-
Additional Device:
-
Conveyor Available
-
Use Life:
-
Use Life
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, Viet Nam, Russia, Spain, Thailand, Australia, Morocco, Chile, UAE, Colombia, Algeria, Romania
-
Certification:
-
CE
-
Marketing Type:
-
Ordinary Product
Electric Driven Type and New Condition liquid packing machine

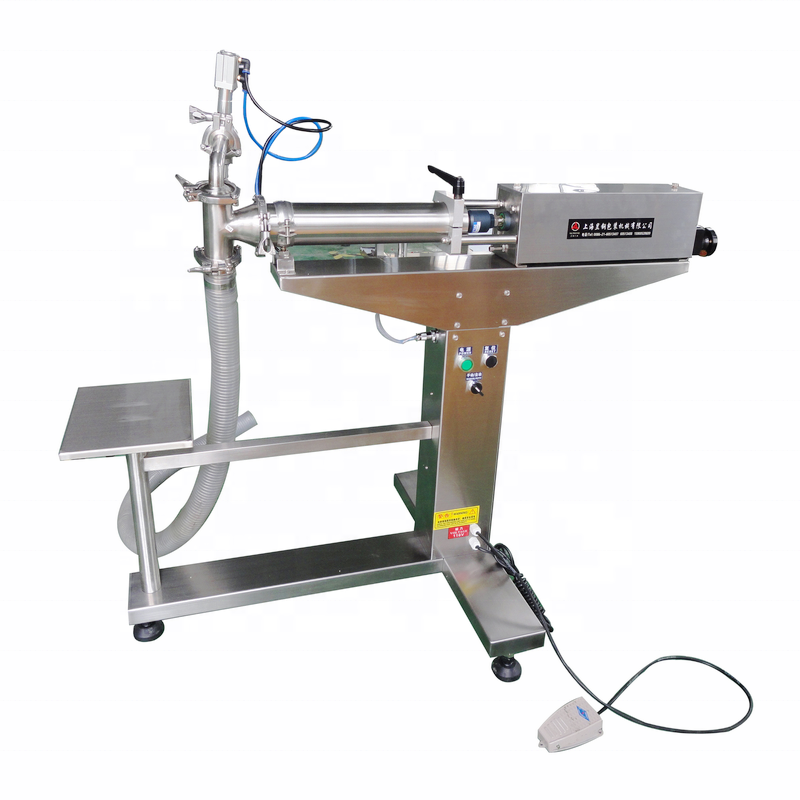

l YGF-YL Series semi auto liquid filling machine is piston filler, the filling quantity is control by volume. It ’ s suitable for the small quantity filling, which is below 5000ml/g. More than 5000g, should use the Weighing Filler.
l This series machine is suitable for any liquid or low viscosity materials. It ’ s widely used in Food, beverage, cosmetics, aggro-chemical , pharmaceutic and the other industries.
1. Provide same function different cost item.
2. Machine construction is SUS 304, wet parts are SS316L,refuse low quality.
3. Pneumatic parts are authentic AIRTAC or FESTO. Reject fakes.
4. Can use one way valve or Actuator. Suitable for high corrosive or viscosity materials.
5. We have different models to suit the different filling volume from 10-5000ml.
6. Can use the long filling nozzle to avoid the foam.
Samples:
|
Machine Model |
Filling Range |
Capacity |
Accuracy |
Air Consumption |
Air Pressure |
Power Supply |
|
YGF- YL /100 |
10-100 g |
0-50 pcs/m |
± 0.5% |
>200L/Min |
0.4-0.6MPa |
220V/110V 50-60Hz |
|
YGF- YL /250 |
20-250 g |
0-40pcs/m |
± 0.5% |
>200L/Min |
0.4-0.6MPa |
220V/110V 50-60Hz |
|
YGF- YL /500 |
50-500 g |
0-30pcs/m |
± 0.5% |
>200L/Min |
0.4-0.6MPa |
220V/110V 50-60Hz |
|
YGF- YL /1000 |
100-1000 g |
0-25pcs/m |
± 0.5% |
>200L/Min |
0.4-0.6MPa |
220V/110V 50-60Hz |
|
YGF- YL /2000 |
200-2000 g |
0-20 pcs/m |
± 0.5% |
>300L/Min |
0.4-0.6MPa |
220V/110V 50-60Hz |
|
YGF- YL /3000 |
300-300 g l |
0-15 pcs/m |
± 0.5% |
>300L/Min |
0.4-0.6MPa |
220V/110V 50-60Hz |
|
YGF- YL /5000 |
800-5000 g |
0-10pcs/m |
± 0.5% |
>400L/Min |
0.4-0.6MPa |
220V/110V 50-60Hz |
Certifications:
Accoring with export packaging standards:
-
The machine whole covered by PVC film & fumigated wooden case;
-
Wooden case suitable for long distance ocean shipping.
