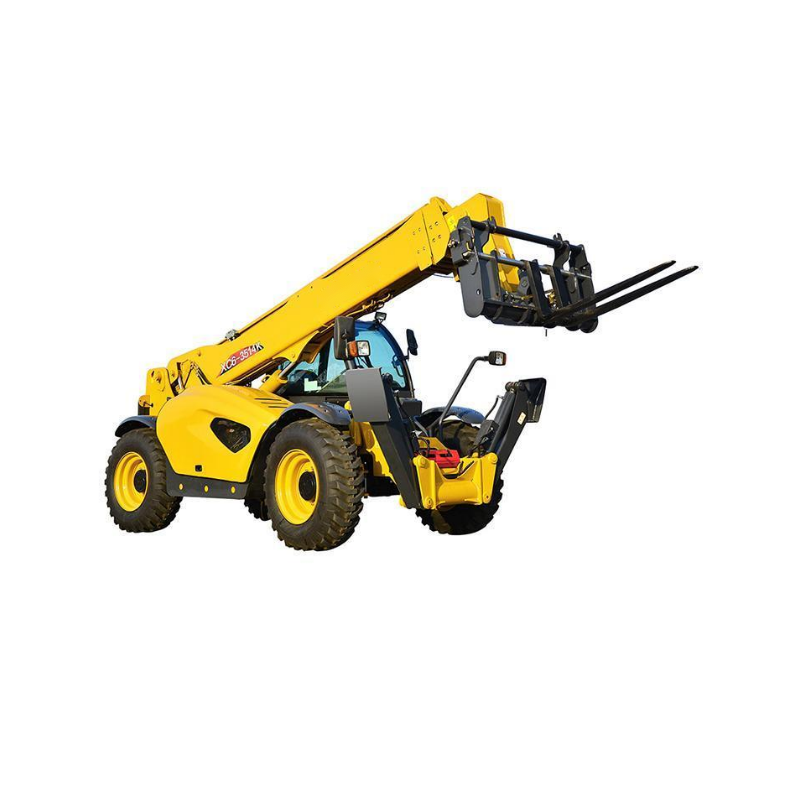

XC6 is the latest XCMG agricultural version telehandler which features the highest operation simplicity, safety and efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
* This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
10500 kg
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE/ISO9001
-
Engine power:
-
74.9kw
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
SHANGHAI
-
Overall Dimensions:
-
6290*2600*2500mm
-
Weight (KG):
-
10500 kg
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE/ISO9001
-
Engine power:
-
74.9kw
-
Marketing Type:
-
Hot Product 2019
Products Description
Hot Sale Telehandler XC6-3514K Telescopic Handler 14m Side Loader Forklift Truck Price
Technical parameters
|
Description
|
Unit
|
XC6-3514K
|
|
Gross weight
|
kg
|
10500
|
|
Engine power
|
kW
|
74.9
|
|
Rated load
|
kg
|
3500
|
|
Effective load at maximum forward reach
|
kg
|
635
|
|
Maximum lifting height
|
mm
|
13700
|
|
Maximum forward reach
|
mm
|
9600
|
|
Center distance of load
|
mm
|
600
|
|
Luffing angle
|
°
|
-4~73
|
|
Fork angle
|
°
|
90~18
|
|
Maximum traction force
|
kN
|
≥55
|
|
Gradeability
|
°
|
≥25
|
|
Maximum traveling speed
|
km/h
|
30
|
|
Turning radius
|
mm
|
≤4750
|
|
Braking distance
|
m
|
≤8
|
|
Overall length
|
mm
|
6380
|
|
Overall width
|
mm
|
2500
|
|
Overall height
|
mm
|
2740
|
|
Wheelbase
|
mm
|
2980
|
|
Wheel tread
|
mm
|
2060
|
|
Fork length
|
mm
|
1200
|
|
Bale clamp diameter
|
mm
|
800-1800
|
Details Images
Sales Service
About Us
Packaging & Shipping
FAQ
1:Are you original manufacture?
A:Yes, we are an official leading manufacture in constrution machinery in china and we have the whole series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Whick incoterms 2010 terms can we work?
A:Normally we work on FOB,CFR,CIF.
4:What about the delivery time?
A:7-30 days after receving the deposit.
5:What about the warrenty time?
A:12 months afer shipment or 2000 working hours.
6:What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
