Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Gospel
-
Model Number:
-
GP750
-
Capacity (Person):
-
8
-
Certification:
-
ce
-
Product Name:
-
Aluminum Fishing Boat
-
Type:
-
Center Cabin Boat
-
Material:
-
Marine Grade Aluminum DNV 5083
-
Length Available:
-
19ft, 21ft, 23ft, 25ft
-
Size:
-
6.95 x 2.4 x 1.45m
-
Outboard Motor:
-
150hp / 225hp 4 strokes
-
Fuel Type:
-
Petrol
-
Color:
-
White, Black, Blue
-
Usage:
-
Family Entertainment
Quick Details
-
Occasion:
-
Lakes & Rivers
-
Hull Material:
-
Aluminum
-
Outdoor Activity:
-
Drifting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Gospel
-
Model Number:
-
GP750
-
Capacity (Person):
-
8
-
Certification:
-
ce
-
Product Name:
-
Aluminum Fishing Boat
-
Type:
-
Center Cabin Boat
-
Material:
-
Marine Grade Aluminum DNV 5083
-
Length Available:
-
19ft, 21ft, 23ft, 25ft
-
Size:
-
6.95 x 2.4 x 1.45m
-
Outboard Motor:
-
150hp / 225hp 4 strokes
-
Fuel Type:
-
Petrol
-
Color:
-
White, Black, Blue
-
Usage:
-
Family Entertainment

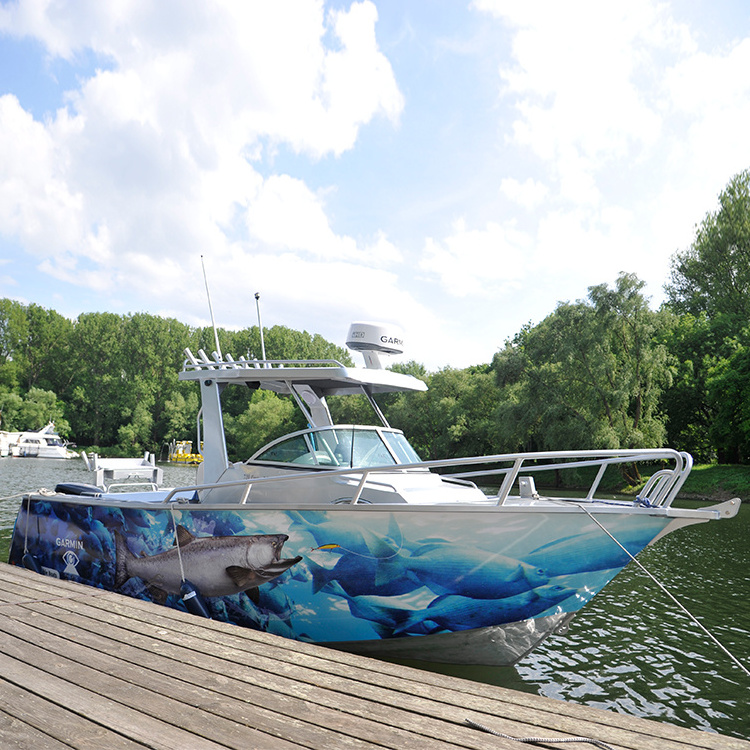

7.5m 25ft offshore aluminum fishing boat - center cabin boat with hardtop
Australia design, 360° walking round, Fully welded, deep V Bottom, CE certification
OEM design: more than twenty painting color and skin optional,Painting with your decals,Imitation teak flooring
Measurement:
|
length of boat hull: 7.55m |
beam: 2.55m | depth: 1.45m |
| bottomsides: 5mm | topsides: 5mm | transom: 5mm |
|
number of people: 8
|
min. power: 200hp | max. power: 300hp |
| transom shaft length: 25" | weight(boat only): 1670kgs | overall length: 8.25m |
Standard Configurations:
| transducer/trim tables mounting plate | safety windscreen/ scuttle | painting: two tone |
| quality driver and passenger seating | large buoyancy tanks(5) | folding rear seats |
| floor:aluminum plate with carpeted | hardtop roof with rod rack | bow rollor, bilge pump |
| self draining deck with scuppers | center cabin with walking round | battery box(2) |
| fast draining anchor well | dive / swim rear ladder |
double chiles |
| storage pockets fore,aft and sides | extrude side decks | underfloor fuel tank 200L |
| aluminum rod holders | rocket launcher | kill tank 60L |
| bait board with rod holders | rails (front, transom) | live bait tank 30L |
Options:
| acrylic windscreen,toughened glass closed windscreen,trailer,Yamaha outboard,windscreen wiper, Radar |
| navigation light, cabin light, toilet, electric anchor, electric trim tabs, refrigerator, hydraulic steering |
Why Choose Us?
Quality
A: Gospel Boats are superior structures, built at our factory to European CE Certifications standards.
B: The material used is marine grade alloy certified, with a 5 mm plate hull throughout, and 4 mm plates on structural components.
C: Our boats have fully welded sealed alloy decks, and have fully welded frames and girders, ensuring that structural members are not left floating and unfixed as in all other brands.
D: All welders and fabricators at our factory are certified marine specialists.
E: To ensure the utmost quality, full on site chemical, physical and weight testing is undertaken of all raw materials.
F: All designs are prepared by naval architects on CAD software.
G: All plate aluminium cutting is computerised allowing for the perfect fit.
H: Every hull is personally inspected over and over and welds are tested for defects, fuel and water tanks are baffled and pressure tested.
I: Additionally, every boat is personally thoroughly inspected before it leaves the factory.
Welded Frames & Girders , Leakage Test
Australia Design
| Bow | Midships | Stern |
|
|
|
|
| Super fine forefoot assures soft entrance into headsea. | Multichile allows for a very deep vee which guarantees a soft ride. | A 24 degree deadrise allows water force to escape and not to be generated through the hull. |
| The DeepVee hull is a revolution in boat design – providing for the best quality boat and ride. | This ensures a boat that is very stationary at rest, therefore providing a premium boating platform for all your activities whilst onboard. | This ensures maximum speed for minimal horsepower and fuel. |
Safty
|
A: 5mm marine grade plate hull structure
B: Full depth girders no more than 300mm apart, making them very strong in comparison to other methods of construction. C: The floor is self draining through sides and middle transom scuppers. D: There are separate chambers for fuel and storage. E: Stylishly rounded corners throughout the vessel to ensure safety to passengers. F: Warranty:Three years for the boat hull , one year for all the parts and painting |
Manufacture processing
