Quick Details
-
Application:
-
Living Room
-
Design Style:
-
Contemporary
-
Size:
-
150X50MM, 6"x2" customized
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Bestn
-
Shape:
-
Roundness
-
Honeycomb density:
-
100-600cpsi
-
Active components:
-
Pt, Pd,Rh,etc
-
Appearance:
-
Cylinder
-
The material of the shell:
-
stainless steel
-
Package:
-
Carton box,wooden box
-
MOQ:
-
10pcs
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Living Room
-
Design Style:
-
Contemporary
-
Size:
-
150X50MM, 6"x2" customized
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Bestn
-
Shape:
-
Roundness
-
Honeycomb density:
-
100-600cpsi
-
Active components:
-
Pt, Pd,Rh,etc
-
Appearance:
-
Cylinder
-
The material of the shell:
-
stainless steel
-
Package:
-
Carton box,wooden box
-
MOQ:
-
10pcs
Product Description
Wood stove converter generally use mullite honeycomb ceramics and stainless steel material as the shell. Due to its good heat resistance and high temperature resistance, it can be used for wooden stove and fireplaces. The honeycomb shaped pore size can filter some impurities and can be used for smoke exhaust port filtration.

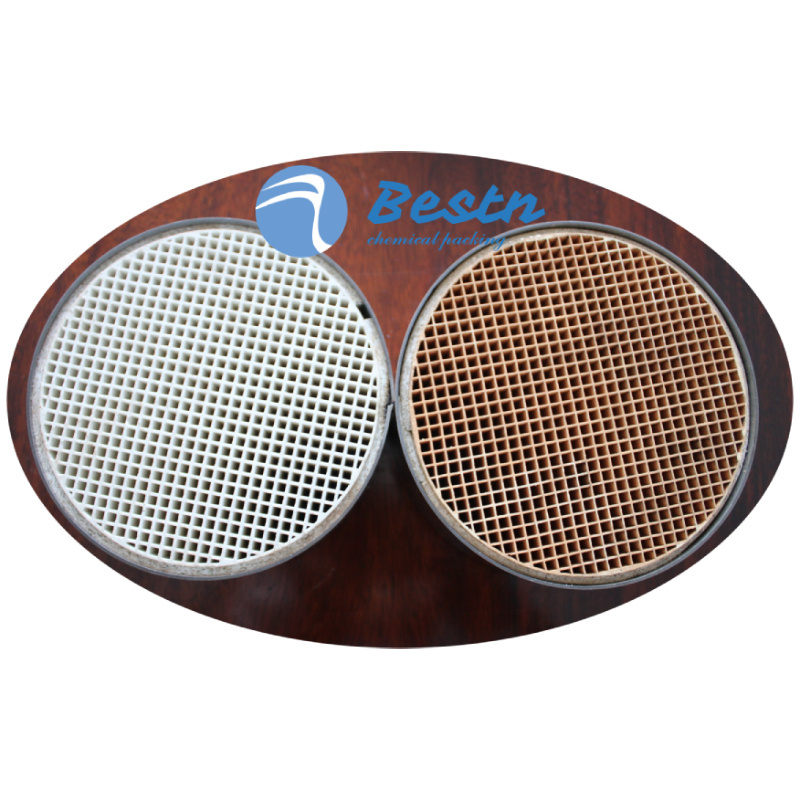

It has two types,without coated(left one) and coated with precious metal(right one).Without coated wood stove converter can used in the common fireplace,it can help to thermal storage and filter some smoke and dust. If it is necessary to reduce CO emissions,coatings can be customized according to the application environment, it can lock the heat and reduce con-sumption.
It has two types,without coated(left one) and coated with precious metal(right one).Without coated wood stove converter can used in the common fireplace,it can help to thermal storage and filter some smoke and dust. If it is necessary to reduce CO emissions,coatings can be customized according to the application environment, it can lock the heat and reduce con-sumption.
Specification
|
Item
|
Data
|
|
|
Structure
|
Honeycomb Ceramic+Stainless steel Shell
|
|
|
Carrier material
|
Mullite/Corderite honeycomb substrate
|
|
|
Honeycomb density
|
100, 200, 300, 400 or 600 CPSI
|
|
|
Active components
|
Pt and so on.
|
|
|
Size
|
Dia152×50mm,148x50mm,145x50mm,114x50mm or customized
|
|
|
Light-off temperature
|
200-250°C
|
|
|
Optimal use temperature
|
250-400°C
|
|
|
Co outlet concentration
|
≤4mg/m3(Just to refer to,it depends on the application)
|
|
|
Non methane CnHm outlet concentration
|
≤5mg/m3
|
|
|
Remarks
|
Can be customized.
|
|
|
Shape
|
Round
|
|
|
Please note:the coating as the client's demand.The coated honeycomb ceramic use cordierite and the uncoated honeycomb ceramic use mullite.
|
|
|
Advantages
1. Low combustion temperature, flameless combustion and heat locking.
2. Fast combustion, complete combustion, and reduced fuel use.
3. The combustion products are harmless CO2 and H2O and do not produce secondary pollutants.
4. Wide scope of application.
