Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Omaicnc
-
Pulse Width:
-
0.5~10ms
-
Wavelength:
-
1080NM
-
Focal Spot Diameter:
-
0.2 ~ 2.0 mm
-
Dimensions:
-
1120*530*1320mm
-
Weight (KG):
-
150 KG
-
Marketing Type:
-
Hot product 2024
-
Core Components:
-
Laser source
-
Aplication:
-
wire feeder for metal welding
-
Laser power:
-
3000W
-
Laser source brand:
-
Raycus (other optional)
-
Laser head:
-
SUP
-
Laser head weight:
-
0.75kg
-
Function:
-
4 in 1 (welding, cutting, cleaning)
-
Water chiller:
-
including
-
Water chiller brand:
-
Hanli (S&A optional)
-
Wire feeder:
-
Including
-
Wire feeder line:
-
professional for aluminum welding tube
Quick Details
-
Max. Output Power:
-
3000W
-
Use:
-
Metal welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Omaicnc
-
Pulse Width:
-
0.5~10ms
-
Wavelength:
-
1080NM
-
Focal Spot Diameter:
-
0.2 ~ 2.0 mm
-
Dimensions:
-
1120*530*1320mm
-
Weight (KG):
-
150 KG
-
Marketing Type:
-
Hot product 2024
-
Core Components:
-
Laser source
-
Aplication:
-
wire feeder for metal welding
-
Laser power:
-
3000W
-
Laser source brand:
-
Raycus (other optional)
-
Laser head:
-
SUP
-
Laser head weight:
-
0.75kg
-
Function:
-
4 in 1 (welding, cutting, cleaning)
-
Water chiller:
-
including
-
Water chiller brand:
-
Hanli (S&A optional)
-
Wire feeder:
-
Including
-
Wire feeder line:
-
professional for aluminum welding tube

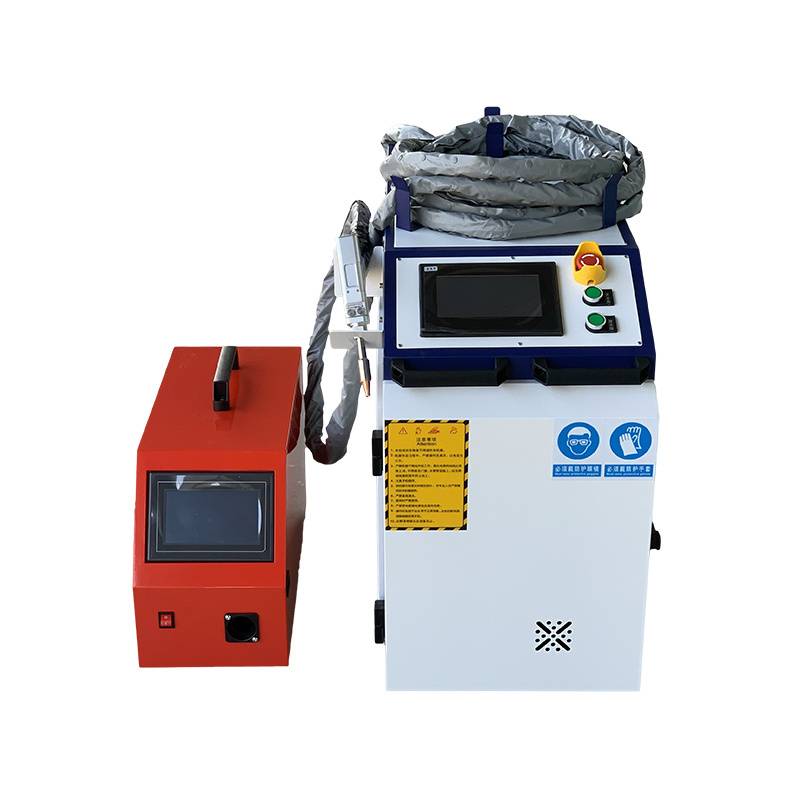

Portable channel letter laser welding machines laser welding equipment for stainless steel aluminium
Specification of portable laser welding machine
| Model | 3 kw laser welding machine for standard metal welding |
| Laser source | 3 kw (1kw, 1.5kw, 2kw optional) |
| Wire feeder | Including (this tube is standard for metal welding, such as stainless steel, iron, carbon steel, if your main work is aluminum please kindly with us, aluminum should be used the special wire feeder tube) |
| Length of fiber-optical | 8m(standard) |
| Interface of fiber-optical | QBH |
| Module life | 100000hrs |
| Cooling method | Water Cooling |
| Laser Energy Stability | <2% |
| Air humidity | 10-90% |
| Power supply | 380V 3phases (if you need other, please contact with us) |
|
Kindly noted: This model is 1.5 kw suitable for main work is standard metal welding. If your main work is aluminum you can choose the professional laser welding machine for aluminum. |
|
Recommend Power
| 1000W | Stainless steel, carbon steel 0-2mm, Galvanized sheet, aluminum 0-1.5mm |
| 1500W | Stainless steel, carbon steel 0-3mm, Galvanized sheet, aluminum 0-2mm |
| 2000W | Stainless steel, carbon steel 0-4mm, Galvanized sheet, aluminum 0-3mm |
| 3000W | Stainless steel, carbon steel 0-6mm, Galvanized sheet, aluminum 0-4mm |
Machine details
4 in 1 multifunction: welding, cutting, cleaning and weld seam cleaning
1. 4 models: welding, cutting, cleaning and weld seam cleaning (the effect is good and stable)
2. Laser head is l ightweight and flexible, can weld anypart of the workpiece
3. Support customization: make your own logo/design the appearance of the machine
Machine main parts:
1. Fiber laser source: this products used the MAX brand laser source, high stability, long lifespan, 100, 000+ hours (Raycus, JPT, IPG optional)
2. Wire feeder: Automatic wire feeder with aluminum feeder tube (if your main work is not aluminum, please contact with us), which are flexible and multi-use, suitable for different diameters.
3. Water chiller: Hanli industry water chiller is pecially suitable for laser welding machine, with high efficiency cooling, low noise and other unique advantages. (S&A optional)
4. HD smart screen: The scress is extremely clearly and touch-enabled and it's systerm supports the languages of at least 16 countries.
5. Laser head: Stable and reliable quality of laser welding head, which can complete a variety of forms of welding taskes easily.
6. Laser nozzles: Fibe types of standard nozzles. Completely makd of copper, stable and reliable quality, help the laser show a good performance in works.
Wroking process of portable laser welding machine:
1. Assembling wire feeder : assembling wire in the feeder and then fix it onto welding head
2. Systerm setting: set on the systerm board
3. Focus setting: Setting the system for different type of job and materials, multi language optional
4. Working : cleaning, cutting, welding and weld seam cleaning
Welding samples:
Butt welding, overlap welding, stitch welding, stud welding, flanged welding, T-type welding, lap welding, splice welding
Package delivery:
Based on different products and size, we use different packaging materials. About 3kw aluminum welding machine, our packaging staff arevery experienced, and we absolutely guarantee the safety of the products during transportation.
Our warranty and service:
1. Whole machine for 1 years, generator for 2 years. (Not include consumable parts)
2. Lifelong technical support online or by email.
3. 24 hours online service to help you use our machine well.
4. Offer oversea service for training, installing, operating if necessary.
5. Will offer you manual and operating producer when deliver the machine.
6. Offer training at our factory for free (you could visit us and learn).
7. We will supply the machine with training video and user's manual in English for installing, operation, maintenance to ensure customer could use our machine well.
