Quick Details
-
Brand Name:
-
HOJA
-
Application:
-
ROAD
-
Color:
-
White
-
Input Voltage:
-
12v
-
Life:
-
100,000hours
Quick Details
-
Warranty(Year):
-
1-Year
-
Model Number:
-
LED Down Light
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HOJA
-
Application:
-
ROAD
-
Color:
-
White
-
Input Voltage:
-
12v
-
Life:
-
100,000hours
2 ” LED Down Light, Low Profile down light led
1, Features
• Low Profile LED Down light is particularly suitable for applications where the depth of cut-out hole is limited,
ideal for cabin and compartment
• H ighly polished 304 stainless steel housing with frosted plastic lens or light diffusion plastic lens.
Lens is designed to vastly distribute the light illuminated from white LEDs at a viewing angle no less than 12 0 °
• New introduction of SMD2835 or SMD5050 LEDs, much brighter! Lighting color available in Warm White,
Neutral White and Cool White
• Circuit board is conformal coated to resist moisture, corrosion and vibration
• Rated for 12V , tested to 13.8V
• Also available in optional version of multi-voltage 10~30V operating range, or 24V version by special order only
2, Part# and Technical Information
|
Part No. |
Finish |
Input Voltage |
Light Color |
No. of LED ’ s |
LED Type |
CCT |
Luminous Flux |
Current Draw at 13.8V |
|
420018S |
Stainless |
12 V |
Cool White |
18 |
5 mm |
~7,000K |
90 lm |
0.12 A |
|
420018SW |
Stainless |
12 V |
Warm White |
18 |
5 mm |
~3,200K |
72 lm |
0.12 A |
|
420309SN |
Stainless |
12 V |
Neutral White |
9 |
SMD5050 |
~4,500K |
120 lm |
0.36 A |
|
420309SB |
Stainless |
12 V |
Blue |
9 |
SMD5050 |
Blue |
NA |
0.36 A |
|
420309SR |
Stainless |
12 V |
Red |
9 |
SMD5050 |
Red |
NA |
0.36 A |
|
420512SN |
Stainless |
12 V |
Neutral White |
12 |
SMD2835 |
~4,500K |
190 lm |
0.17 A |
|
420512SB |
Stainless |
12 V |
Blue |
12 |
SMD2835 |
Blue |
NA |
0.36 A |
|
420512SR |
Stainless |
12 V |
Red |
12 |
SMD2835 |
Red |
NA |
0.36 A |

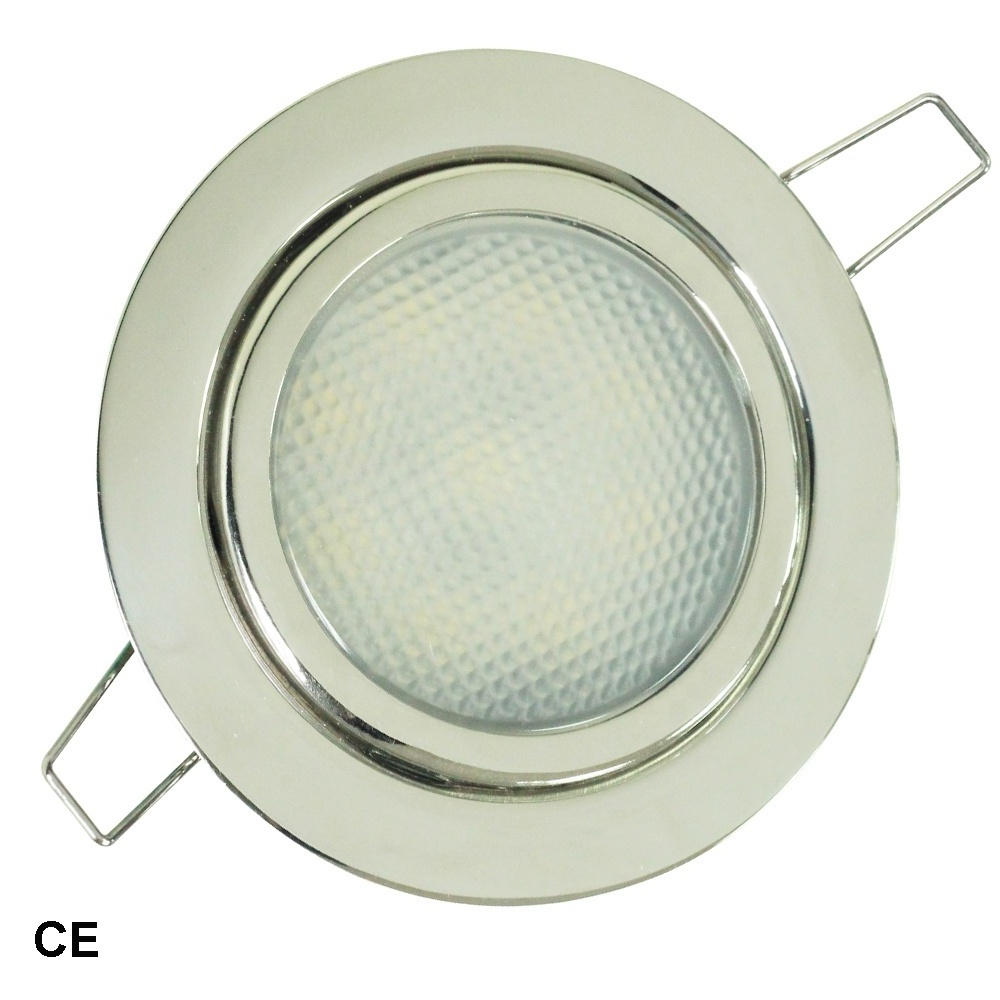

3, Product Picture s
4 , Dimension s
