Quick Details
-
Brand Name:
-
Gxcom
-
Model Number:
-
ITS8200-4G-1G
-
Place of Origin:
-
Guangdong, China
-
Interface:
-
5 X 10/100/1000Mbps RJ45 Ports
-
Product Name:
-
Gigabit5 Port Industrial Switch Din Rail
-
PoE Pin definition:
-
1,2(+)/3,6(-);
-
Output Voltage:
-
DC48-57V
-
Applications:
-
Support PoE IP Cameras
-
Protection Grade:
-
IP40
-
Wide Working Temperature:
-
40-85 Celsius
-
Power Input:
-
DC10-57V
-
Max Power Per Port:
-
30W; IEEE802.3af/at
-
Certification:
-
CE,FCC,Rohs
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16Gbps
-
Brand Name:
-
Gxcom
-
Model Number:
-
ITS8200-4G-1G
-
Place of Origin:
-
Guangdong, China
-
Interface:
-
5 X 10/100/1000Mbps RJ45 Ports
-
Product Name:
-
Gigabit5 Port Industrial Switch Din Rail
-
PoE Pin definition:
-
1,2(+)/3,6(-);
-
Output Voltage:
-
DC48-57V
-
Applications:
-
Support PoE IP Cameras
-
Protection Grade:
-
IP40
-
Wide Working Temperature:
-
40-85 Celsius
-
Power Input:
-
DC10-57V
-
Max Power Per Port:
-
30W; IEEE802.3af/at
-
Certification:
-
CE,FCC,Rohs
Product Description

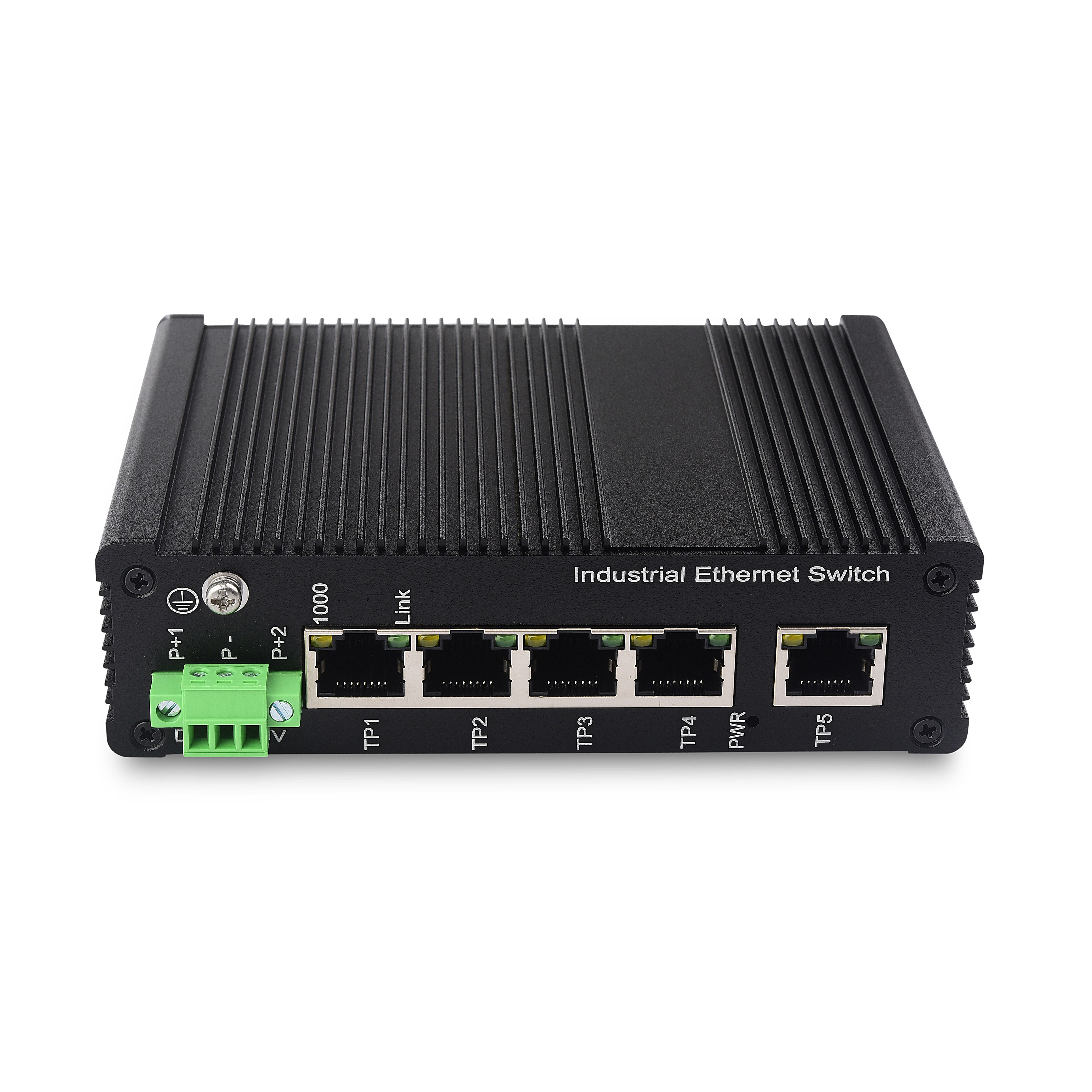

Unmanaged Gigabit 5 Port Industrial Ethernet Switch
ITS8200-4G-1G is a 5*10/100/1000M industrial ethernet switch, and are used in Ethernet switch devices in the field of industrial control. It adopts a wide temperature design. It has good openness, wide application, and has strong anti-electromagnetic interference, anti-salt spray, and strong shock resistance. It' ideal for large-scale network communication systems such as high-speed monitoring systems and hydroelectric power generation systems must use industrial-grade switches.
Features:
Support DC 10~58V input range.
Industrial-grade, IP40 protection grade.
Build in signal Enhance & VLAN switch.
Innovative design, customized metal case with better heat dissipation and corrosion resistance.
Support DC 10~58V input range.
Industrial-grade, IP40 protection grade.
Build in signal Enhance & VLAN switch.
Innovative design, customized metal case with better heat dissipation and corrosion resistance.
Longer lifespan than normal poe switch.
8KV lightning protection, adapt to various harsh environments.
Specification:
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Port number: 5 port 10/100/1000M RJ45
Data rate: 10/100/1000Mbps
Forwarding rate: 10 Mbps/14,880 pps,100 Mbps/148,800 pps,1000 Mbps/148,8000 pps
LED Indicator: 10/100Mbps(Link/Act, speed),Power, enhance Indicator
Power Input: DC10V-58V
Power Consumption:1.5W max
Wide working Temperature: -40 -85 Celsius(-40°F to 176°F)
Storage Temperature: -40-85 Celsius(-40°F to 176°F)
Relative Humidity: 5%-90%(non-condensing)
Dimension: 118*80*30mm/4.64*3.14*1.18''
Note:
DC10V-58V, Any set of power input is ok, please note the power polarity, it is recommended to use 12V/ 0.2A power adapter.
Power Adapter is NOT included in the package.
Recommend Products
Gigabit Maneged PoE Gigabit Unmanaged PoE Managed Industrial PoE Unm anaged Industrial PoE
Customer review
Application
Packing & Delivery
Package Type:
1. Standard Box (54cm*34cm*9cm)
2.One standard set including 1 device, 1 charger, 1 manual instruction, 1 certificate and 1 warranty card.
3. Shipping terms: DHL/UPS/TNT/FedEx/EMS etc.., please contact supplier to get latest shipping time to your country.
4. Enough Stocks, but for large quantities, please contact supplier to get accurate leading time
Packing Details : Standard Box(54cm*34cm*9cm), Gross Weight : 4.2KG
Delivery Details : Delivery Terms: DHL/TNT/UPS/Fedex/EMS
