Quick Details
-
Total power:
-
Max 2500W
-
Heater power:
-
Upper temp.zone 1200W,Down temp.zone 1200W
-
Electrical material:
-
Driving motor+ smart temp.controller+color touch screen
-
Locating way:
-
V shape slot,PCB support jigs can adjust
-
PCB size:
-
Max 140*160mm Min 5*5 mm
-
Applicable chips:
-
Max 80*80mm Min 1*1 mm
-
Color:
-
Blue+White Mini BGA rework station
-
Nozzles:
-
4 top,1 bottom
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Guangdong, China
-
After-sales Service Provided:
-
Overseas service center available, Online support
-
Type:
-
Other
-
Total power:
-
Max 2500W
-
Heater power:
-
Upper temp.zone 1200W,Down temp.zone 1200W
-
Electrical material:
-
Driving motor+ smart temp.controller+color touch screen
-
Locating way:
-
V shape slot,PCB support jigs can adjust
-
PCB size:
-
Max 140*160mm Min 5*5 mm
-
Applicable chips:
-
Max 80*80mm Min 1*1 mm
-
Color:
-
Blue+White Mini BGA rework station
-
Nozzles:
-
4 top,1 bottom
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
CE ISO

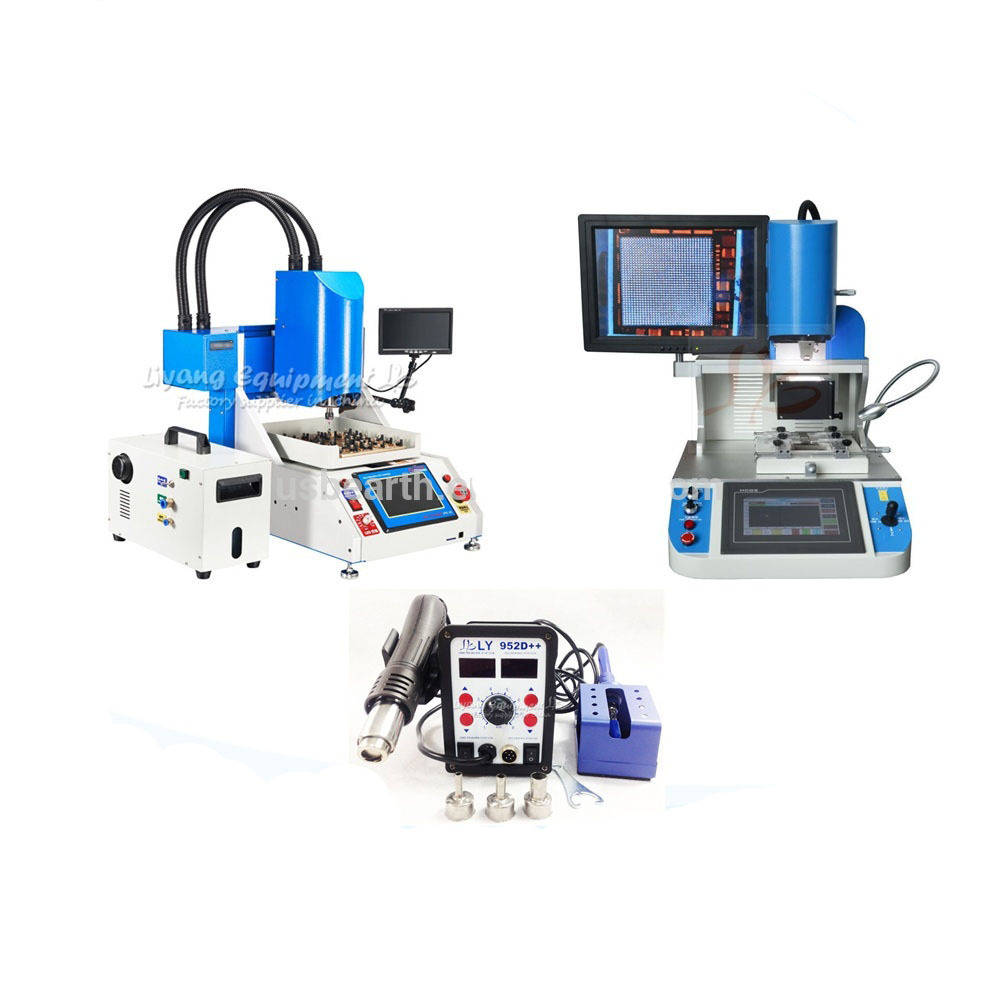

LY Mobile motherboard rework 3 in 1 platinum pack IC router align rework station smd 2 in 1 solder station
1.LY 1001 IC router
Due to mobile IC usually with strong glue attached by original factory,so use bga tech to take off ic is more hard,the successful rate is less than professional ic router 1001.
Specs:
|
Machine Dimensions |
580X560X750mm |
|
Mould size |
190X230 mm |
|
Engraving area |
200X200X100 mm |
|
Rail type |
Linear guide |
|
Type of screw |
Ball screw 1605, Pitch 4mm |
|
Spindle moto |
800W water cooling spindle , 0-24000r/min |
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|
Repeat positioning Accuracy |
0.01mm |
|
Communication interface |
Not need computer SD Card |
|
Software Compatability |
Firmware v1.o |
|
Machine weight |
65kg |
|
|
|
|
|
|
Packing list:
1× IC CNC Machine
1× one Mould
( the Mould total 6 models,but in pack only 1 mould 8 in 1 for 4,4s,5,5c,5s, others for optional as follows:
IPAD mini 1,mini 2,IPAD 2 (1pc);IPAD 3,4(1pc);IPAD 5,6(1pc);IP6 and IP6+(1pc);IP6S and IP6S+(1pc)
And we accept EX-OEM works for other mobiles,but need customer provide motherboard,every mobile mould we can do.
1× SD Card
1× CCD System ( luxury optional , simple model not include!)
1× vacuum cleaner ( luxury optional , simple model not include!)
Video: https://www.youtube.com/watch?v=uOF1kI3wmgc&feature=youtu.be
---------------------------------------------------------------------------------------------------------------------------------
2.LY 5300 align rework station
Due to mobile IC is small,and the solder ball & base is not easy to see clearly,so with align tech to install new IC will raise successful rate,professional Mobile align rework station LY 5300 can do it well.
Specs:
|
Power supply |
AC 220V±10% 50/60Hz |
|
|
3 |
Total power |
Max 2500W |
|
4 |
Heater power |
Upper temp.zone 1200W,Down temp.zone 1200W |
|
5 |
Electrical material |
Driving motor+ smart temp.controller+color touch screen |
|
6 |
Temperature controlling |
(high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1 |
|
7 |
Locating way |
V shape slot,PCB support jigs can adjust |
|
8 |
PCB size |
Max 140×160mm Min 5×5 mm |
|
9 |
Applicable chips |
Max 80×80mm Min 1×1 mm |
|
10 |
Overall dimension |
L450×W470×H670mm |
|
11 |
Temperature Interface |
1 pcs |
|
12 |
Weight of machine |
40KG |
|
13 |
Color |
Blue+White Mini BGA rework station |
Nozzles : 3 top,1 bottom(Top 18*18mm,12*12mm,14*20mm,Bottom 25*25mm)
Video: https://youtu.be/cO5RII03_bU
---------------------------------------------------------------------------------------------------------------------------------
3.LY 952D++ lead-free SMD solder station
It’s a really helpful manual tool in mobile reworks process,with energy saving and auto-sleep function,big power.
Specs:
Model: LY 952D++
Power <= 700W
Size:L 150 X W 100 X H 130MM +- 5MM
Weight:3KG
Work circumstance: 0-40 degree /32-104F
Storage circumstance: -20-80 degree/-4-176F
Storage humidity:35%-45%
Solder iron:
Power:60W
Auto sleep gap time: 10 minutes
Auto sleep maintain temperature:200 dgree
Awaken method: Make it leave stand & shake it slightly
Temperature range:200-480 Degree/392-896F
Tempareture stability:+-1 dgree
Heat element: Big power imported
Solder tip voltage against ground:<2MV
Solder tip resistance against ground:<20hm
Hot air gun:
Power: 650W
Auto drop to 100 degree then stop blow when put on hot air gun stand
Temperature range:100-480 degree/282-896F
Tempareture stability:+-1 dgree
Output air type:brushless soft air
Out put air cube:120L/Min
Packing list:
LY 952D++ X 1 (220V or 110V)
Solder handle x 1
Hot air gun x 1
Solder iron dock x 1
High temperature-proof sponge x 1
Wrech x 1
Hot air nozzle x 3 (5mm,8mm,10mm)
Manual x 1
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
