Quick Details
-
Rolling thinckness:
-
0.3-0.6mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Forward
-
Voltage:
-
380V/3phases/50Hz
-
Dimension(L*W*H):
-
11m*1.4m*1m
-
Weight:
-
4T
-
Marketing Type:
-
Hot Product 2020
-
Color of Roll Forming Machine:
-
Grey or as your request
-
Forming Speed:
-
12-15 m/min
-
Roller Station:
-
9/ 11
-
Shaft Diameter:
-
70mm Solid
-
Shaft Material:
-
45# hard steel
-
Under Frame:
-
300 H-beam
-
Sidewall Thickness:
-
16 mm
-
Transmission:
-
1 inch chain
-
Certification:
-
CE/ISO9001
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Glazed Steel
-
Production Capacity:
-
Other
-
Rolling thinckness:
-
0.3-0.6mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Forward
-
Voltage:
-
380V/3phases/50Hz
-
Dimension(L*W*H):
-
11m*1.4m*1m
-
Weight:
-
4T
-
Marketing Type:
-
Hot Product 2020
-
Color of Roll Forming Machine:
-
Grey or as your request
-
Forming Speed:
-
12-15 m/min
-
Roller Station:
-
9/ 11
-
Shaft Diameter:
-
70mm Solid
-
Shaft Material:
-
45# hard steel
-
Under Frame:
-
300 H-beam
-
Sidewall Thickness:
-
16 mm
-
Transmission:
-
1 inch chain
-
Certification:
-
CE/ISO9001

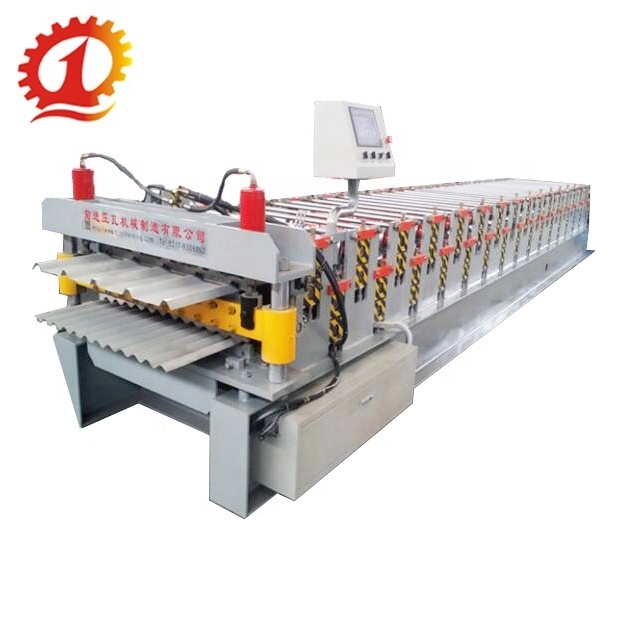

Roof Sheet Making Aluminium Corrugated Roofing Sheets Making Machine
- Main Components:
Forming Speed: 12-15m/min
Voltage Standard: As customer's request
Motor Power: 3kw+3kw
Roller Station: 9/ 11
Shaft Diameter: 70mm Solid
Shaft Material: 45# hard steel
Roller Material: 45# hard steel
Under Frame: 300 H-beam
Sidewall Thickness: 16 mm
Transmission: 1 inch chain
Pre-cutter Material: Cr12Mov
Cutting Type: Hydraulic Stop to post & Post to cut
Cutting Die Material: Cr12Mov
Control Method: Touch screen +PLC
Auxiliary Device: 5t manual decoile r 3m exit rack
Coil Material: PPGI /PPGL
Coil Thickness: 0.3-0.6mm
Feeding Width: 1000mm
