Quick Details
-
Regulation of syle:
-
IEC 664
-
Material busbars:
-
E-CU-F25
-
Material of insulation:
-
PVC,PC/ABC
-
Cross-section of busbars:
-
6-10-13-16-22-33-45mm2
-
Disruptive strength:
-
36kV/mm
-
Clina stability:
-
IEC 68-2
-
Nominal voltage:
-
415V
-
Operating voltage:
-
max.500v
-
Surge voltage:
-
4kV
-
Degree of soiling:
-
2
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WEIWO
-
Model Number:
-
WL-303
-
Regulation of syle:
-
IEC 664
-
Material busbars:
-
E-CU-F25
-
Material of insulation:
-
PVC,PC/ABC
-
Cross-section of busbars:
-
6-10-13-16-22-33-45mm2
-
Disruptive strength:
-
36kV/mm
-
Clina stability:
-
IEC 68-2
-
Nominal voltage:
-
415V
-
Operating voltage:
-
max.500v
-
Surge voltage:
-
4kV
-
Degree of soiling:
-
2

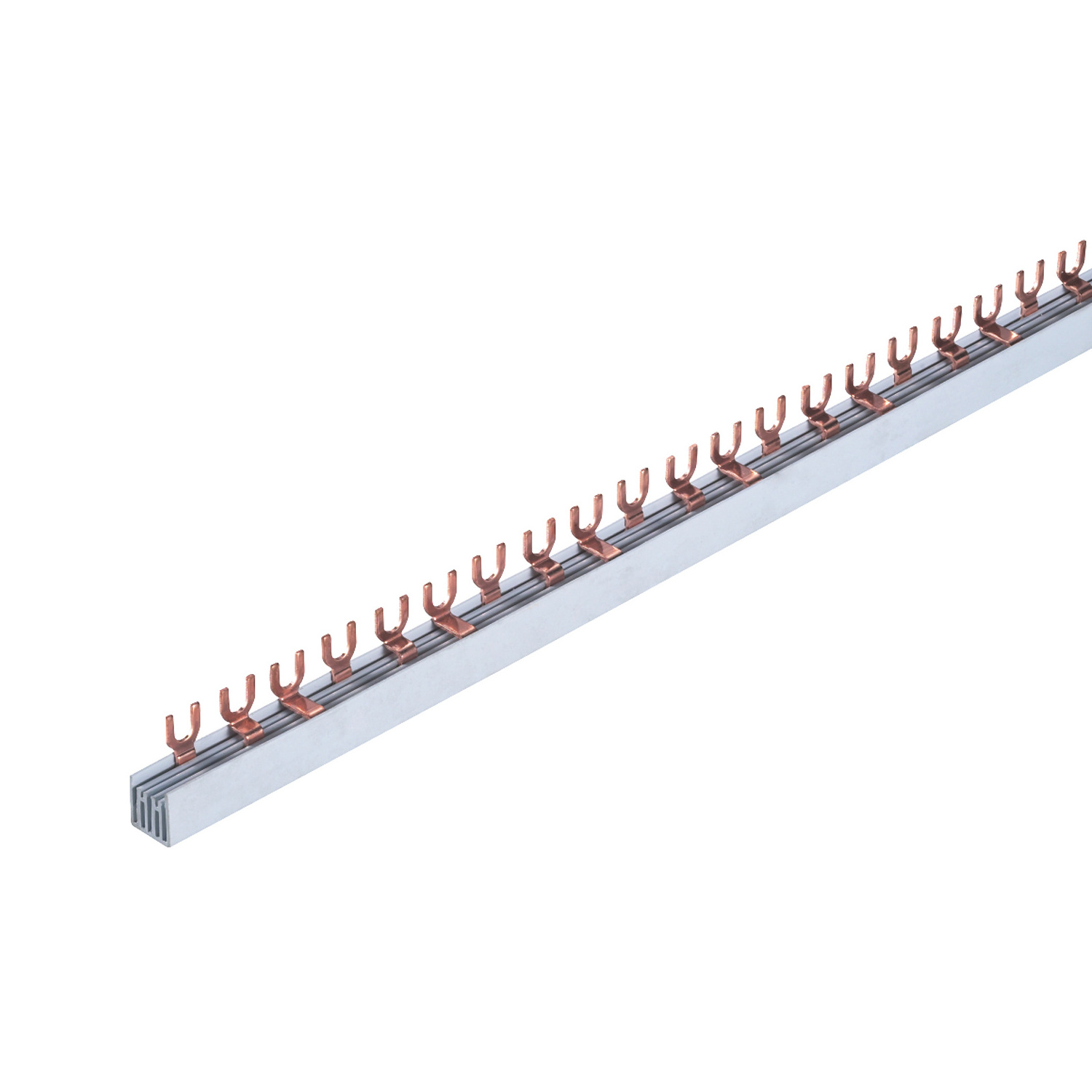

WL-203 Series Busbar for distribution box
The Present of Busbar changed the outdated connection ways of Miniature circuit breaker(MCB) to a new connection way with the characteristics of wider contact area, low power consumption and low temperature-rise.
Our company produces almost all kinds of busbars for MCB, which have good versatility and practibility and practibility. It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box, distribution box, illuminatde box and so on.
