Quick Details
-
Temperature Range:
-
-40-125°C
-
Power Supply:
-
3.0v to 5.5v
-
Accuracy:
-
±1%
-
Wire length:
-
1M, can be customized
-
Product name:
-

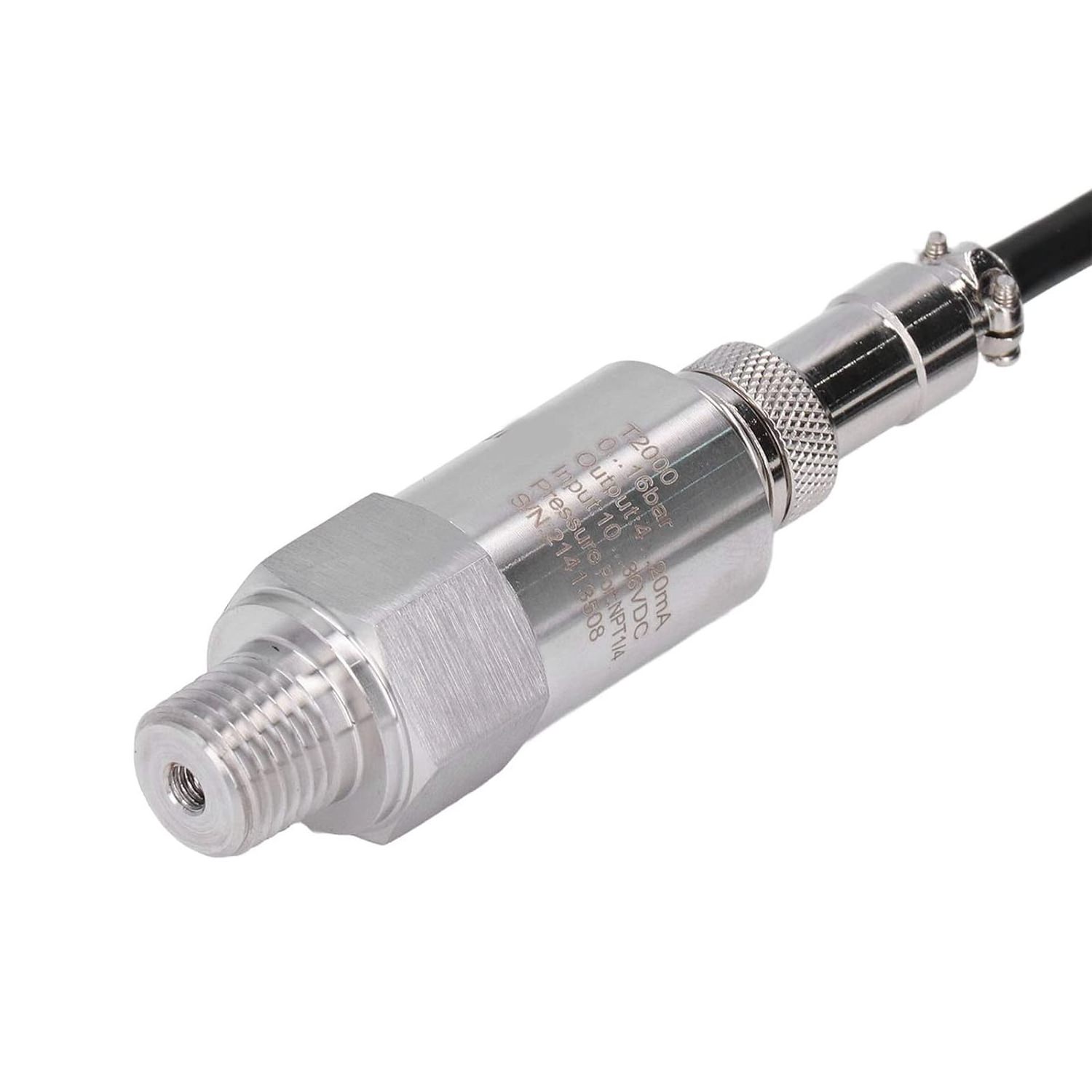

Pressure Transducer
-
Material:
-
Stainless Steel, customized
-
Output signal:
-
0.5-4.5V
-
Feature:
-
high accuracy and fast deliver
-
Sensor:
-
pressure sensor
-
Keywords:
-
pressure transmitter
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RPD
-
Temperature Range:
-
-40-125°C
-
Power Supply:
-
3.0v to 5.5v
-
Accuracy:
-
±1%
-
Wire length:
-
1M, can be customized
-
Product name:
-
Pressure Transducer
-
Material:
-
Stainless Steel, customized
-
Output signal:
-
0.5-4.5V
-
Feature:
-
high accuracy and fast deliver
-
Sensor:
-
pressure sensor
-
Keywords:
-
pressure transmitter
Products Description
Customized Made Parameters
|
|
|
|
|
|
||||
RPD Pressure Sensor Options
|
|
|
|
|
|
||||
Product number
|
|
OEM+ODM
|
|
|
|
||||
Pressure type
|
|
Gauge pressure, absolute pressure, sealed pressure
|
|
|
|
||||
Standard range
|
|
0~6…600 bar
|
|
|
|
||||
Signal output
|
|
4~20mA, 0.5~4.5VDC, 0~5VDC, 0~10VDC
|
|
|
|
||||
Supply voltage
|
|
9~30VDC, 5VDC (0.5~4.5V), 15~30VDC (0~10V)
|
|
|
|
||||
Accuracy
|
|
±0.5%FS, ±1%FS
|
|
|
|
||||
Temperature compensation
|
|
-10~+70℃
|
|
|
|
||||
Operating temperature
|
|
-40~+85℃
|
|
|
|
||||
Storage temperature
|
|
-40~+85℃
|
|
|
|
||||
Overload pressure
|
|
300%FS
|
|
|
|
||||
Breaking pressure
|
|
500%FS
|
|
|
|
||||
Protection level
|
|
IP65
|
|
|
|
||||
Electrical connections
|
|
Direct lead Packard connector M12 connector large/small Hessman
|
|
|
|
||||
Pressure port
|
|
M20X1.5 G1/4 NPT1/4 (others need to be customized)
|
|
|
|
