SYONG HDMI Matrix 4K 60hz 2.0v new HDMI Matrix 4x2 4 In 2 Out With Audio ARC out hdmi matrix

SYONG HDMI Matrix 4K 60hz 2.0v new HDMI Matrix 4x2 4 In 2 Out With Audio ARC out hdmi matrix

FOB Reference Price: Get Latest Price

≥10 Pieces

US $17.69

≥500 Pieces

US $17.01

≥1000 Pieces

US $16.33

≥5000 Pieces

US $14.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: HDMI Matrix 4x2

Material:: Aluminum Alloy

Input:: 4 HDMI

Output:: 2 HDMI

warranty:: 2 Year

Max working current:: 600mA

Power Supply:: DC 5V

Color:: Black

Quick Details

Brand Name:: SYONG, SYONG

Model Number:: S-SP-MAT-402, S-SP-MAT-402

Place of Origin:: Guangdong, China

Product name:: HDMI Matrix 4x2

Material:: Aluminum Alloy

Input:: 4 HDMI

Output:: 2 HDMI

warranty:: 2 Year

Max working current:: 600mA

Power Supply:: DC 5V

Color:: Black

Details Images

Product Performance Description

SYONG HDMI Matrix 4x2

SYONG HDMI Matrix Switch can connect four 4K HDR signal sources to TWO HD display or monitor，and it can also extract the HDMI input Audio signal with Toslink SPDIF optical fiber or 3.5mm stereo headphone output. This 4x2 HDMI Matrix can control by a IR remote
control. It allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors.

High Resolution

4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4. Support 18.5Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24/32/48bit. It supports HDCP 2.2, HDMI2.0b, 4K@60HZ, RGB4:4:4, 4K HDR

4x2 HDMI Matrix Switch Splitter With Audio Extraction

This 4x2 HDMI matrix is easy to set up and operate, it has built-in automatic equalization and amplification functions to ensure the best transmission without losing video/audio quality. Compatible with computer, Blu-ray player, DVD player, Roku streaming media player, TV Box, Play Station 3/4, Xbox One/360 or other HDMI compatible devices.

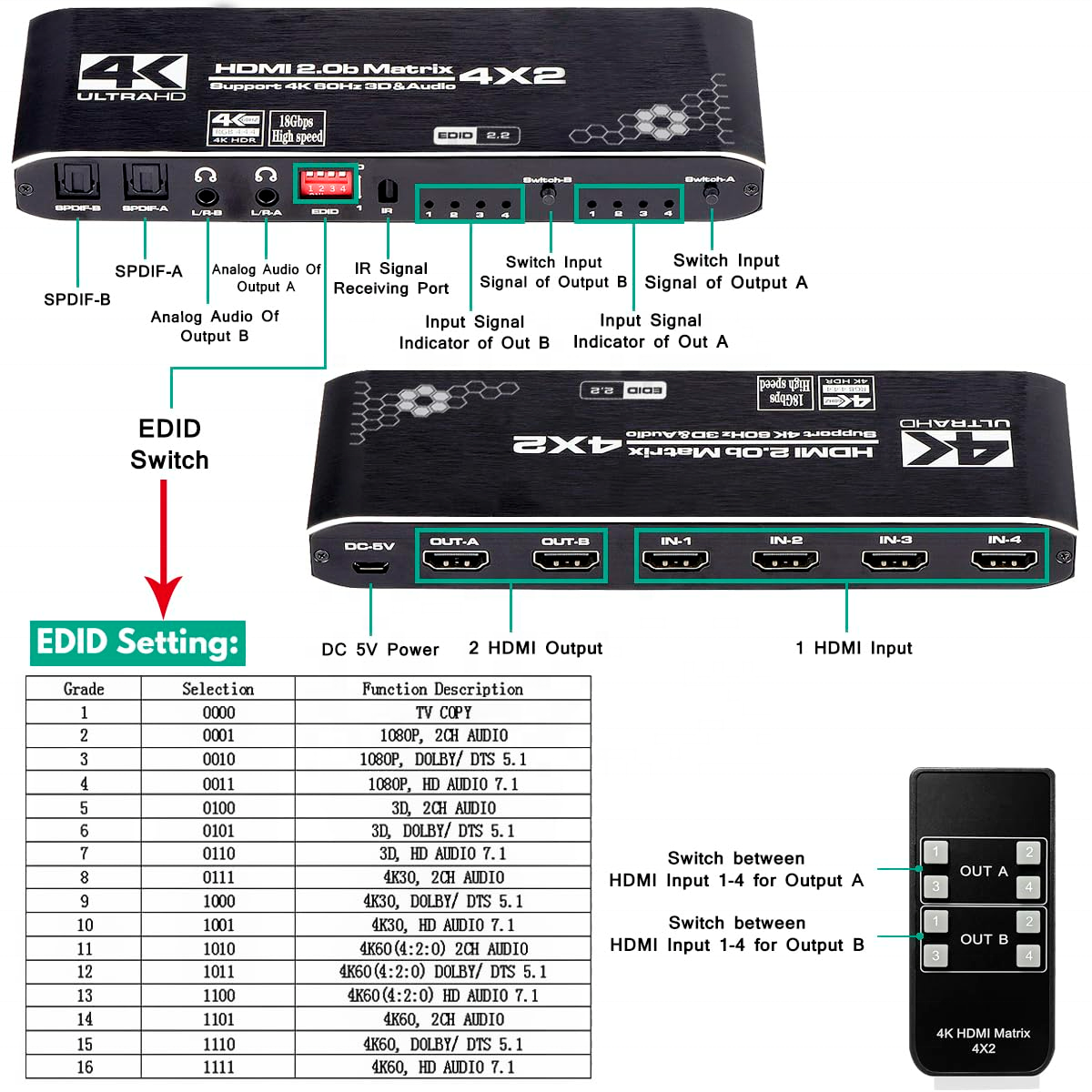

Scaler EDID and audio segmentation

EDID switch sets the video and audio mode of the HDMI source.
Flexible EDID switching provides 16 switching modes that can be met for different resolution needs.

Product Usage

HDMI Matrix 4x2

It can connect four 4K HDMI signal sources to two HD display or monitor, and it can also extract the HDMI input Audio signal with
Toslink SPDIF optical fiber or 3.5mm stereo headphone output. It supports HDCP 2.2, HDMI2.0b, 4K@60HZ, RGB4:4:4, 4K HDR. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right. After you had set the EDID, Please restart your HDMI Matrix Switch.

Packing&Shipping

WHAT YOU GET

1. HDMI Matrix 4x2*1
2. User Manual*1

3. Power Adapter*1

4.USB Type C power cable 1.5m*1

5. IR Remote Control*1

Product Paramenters

Brand	SYONG
Name	HDMI Matrix 4x2
Input Ports	HDMI*4
Output Ports	HDMI*2
HDMI resolution	4K@60Hz, 4K HDR, 3840*2160/60 Hz, RGB 4:4:4
Support audio format	LPCM / DTS5.1 / Dobly7.1
Support video format	8/10/12 bit dark
Max Bandwidth	600MHZ
Max Baud Rate	18.5Gbps
Material	Metal Shell
Power Adapter Format	DC5V/2A
Single Package size	2213.54.2cm
Single gross weight	0.34KG

Customization

Logo Customization

Package Customization

Port Customization

Port Color Customization

Product Logo Customization
