Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Long An, Vietnam
-
Brand Name:
-
Viet Mechanical
-
Model Number:
-
Steel Pallet
-
Depth:
-
as required
-
Weight Capacity:
-
500-2000 kg
-
Width:
-
as required
-
Height:
-
as required
-
Size:
-
Customzied
Quick Details
-
Type:
-
Multi-Level
-
Material:
-
Stainless steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Long An, Vietnam
-
Brand Name:
-
Viet Mechanical
-
Model Number:
-
Steel Pallet
-
Depth:
-
as required
-
Weight Capacity:
-
500-2000 kg
-
Width:
-
as required
-
Height:
-
as required
-
Size:
-
Customzied

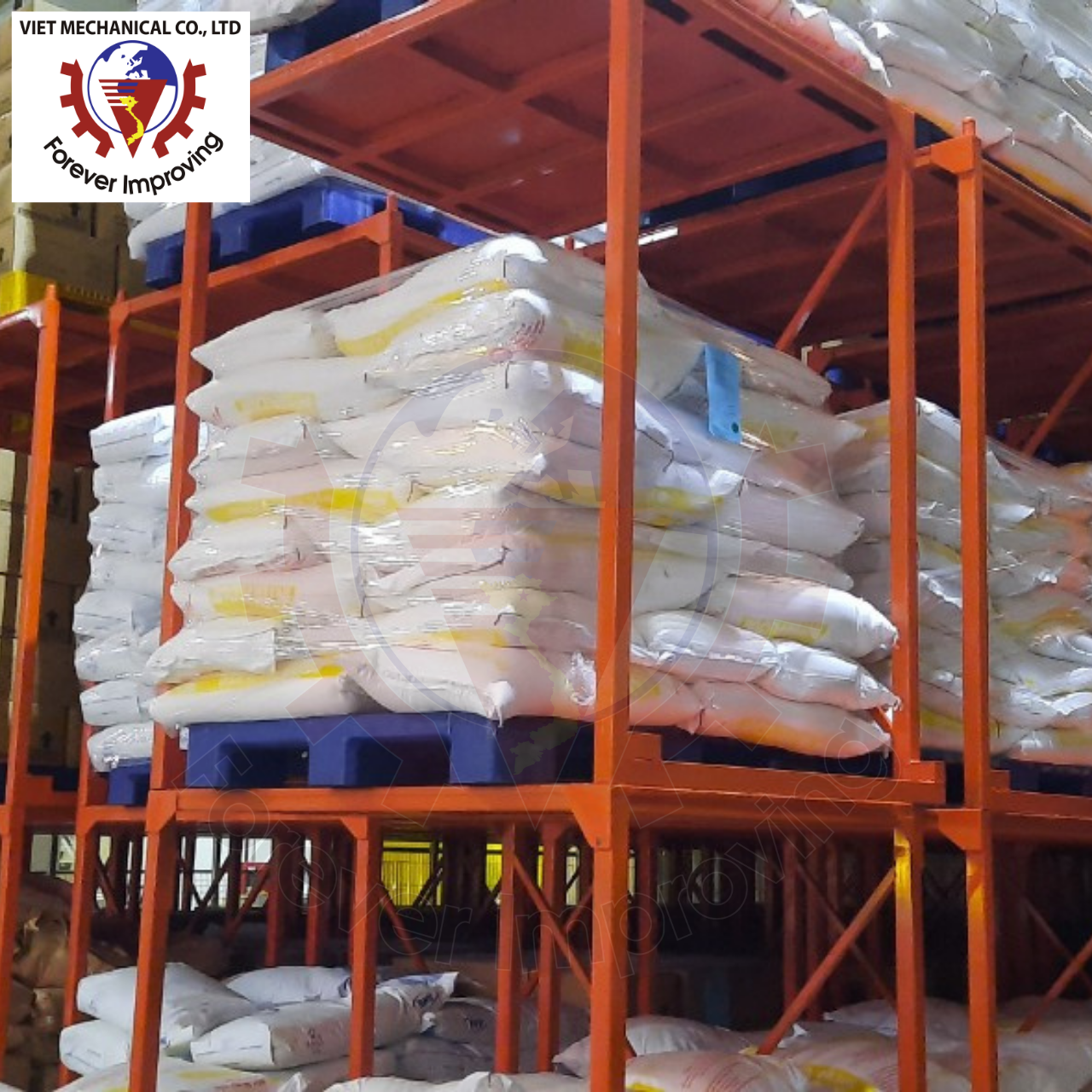

Stackable pallet
is another form of iron pallet, this pallet can be stacked and acts as a shelf for goods, has a fairly solid structure and can be stacked from 2 to 4 floors for the purpose of Save on investment costs on warehouse shelves.
Product Details
Advantages of pallet stacking
-
S
tackable pallets are
easy to lift, move to different locations
in the warehouse at will, reasonable purchase cost.
-
Folds away
when not in use.
-
Some types of stacking pallets when not in use
can be stacked or folded, put in a corner
of the warehouse to
save space for the warehouse
. Convenient for moving goods and returning warehouse space.
-
High stacking.
-
Not only has a high load capacity, but this type of pallet can also be
stacked to form a solid block from 2-3 floors
, both
saving space
and improving storage capacity many times, semi-permanent can be moved. move at any time.
-
In addition
, can be combined with other types of racks to increase storage efficiency, selective iron pallet racking is an ideal choice, storing large quantities and making it easier to manage.
-
Keeping goods safe.
-
Goods will be stored in each well-ventilated pallet to
avoid environmental damage
, and the
goods will be fixed during storage
.
-
Flexible to use.
-
Stacking pallets can be moved from one location to another, even some can be disassembled to make a normal pallet. Because of this
"multi-purpose"
nature, stacked pallets are often preferred by customers.
Durable
-
Steel material according to
JIS . standard
-
The whole is powder coated,
good anti-rust
-
Ensures best use even
in harsh conditions such as cold storage
.
-
High storage density
-
Can be stacked into several floors, depending on the height of the warehouse,
increasing the storage capacity of goods
.
-
Load capacity 500 - 3000kg/pallet frame
.
-
Save space, investment costs
-
Fold or nest when not in use.
-
Can be
nested into stacks of 8 pieces
, effectively saving space.
General Structure & Specifications
There are many different types of stacked pallets, but in general, they are all composed of two main parts, the bottom for storing goods and the side by the iron frame, in which:
The bottom and the pallet surface:
the bottom of the pallet is made of high-grade steel, linked together by welding to form a load-bearing flat surface, this is the main bearing part of the pallet. The bottom surface will be reinforced with details to help the pallet stack or fold. The storage surface on the pallet can be made from steel frame panels, tole liner or board.
Facade:
the two-sided frame is made of solid steel bars and will be linked to the bottom by screws to be rotated, creating stability and helping pallets stack more safely.
Depending on the needs and the type of goods stored on it, this type of stacked iron pallet will be individually designed and customized to accommodate the stored goods.
Co
mmon size of stacking pallet
D1000 x R1000 x C1500 (mm)
D1200 x R1100 x C1500 (mm)
D1100 x R1000 x C1500 (mm)
D1200 x R1200 x C1500 (mm)
D1300 x R1400 x C1500 (mm)
D1500 x R1500 x C1700 (mm)
Above are the basic stacked iron pallet sizes, which can be customized in size, style and color according to the individual needs of each customer
.
Specifications
Design load 500 - 3000kg/pallet. When stacked into a warehouse shelf with a load of up to 12 tons, equivalent to 4 pallet floors.
Made of high quality steel, powder coated. In some cases, zinc coating can be applied to match the customer's product.
Color: Blue, Gray, Black, ... depending on the color required by the customer.
Automatic welding at Viet Long An Mechanical factory - Duc Hoa Industrial Park, Long An
Going through a lots of process from welding and coating to testing system, bringing you the best quality with the most reasonable price is our top policy. Using only Steel with high standard and automatic coating system. Moreover, it can be dismantled to save space when not needed.
