Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2800 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhonggong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3600*2200*1950
-
Power (kW):
-
9
-
Weight (KG):
-
2600
-
Product name:
-

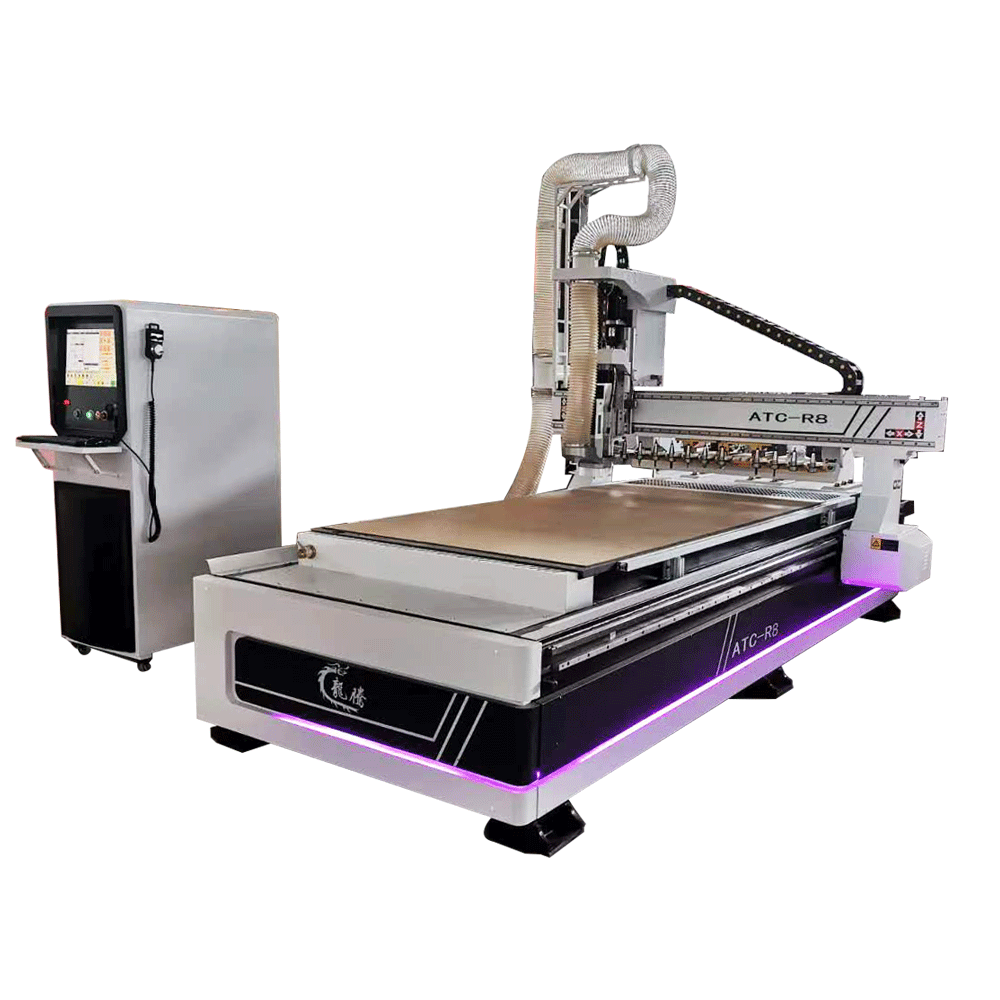

Longteng third-generation R8-speed cutting cnc machine equipment
-
Spindle power:
-
GDZ Big Power 9KW Air Cooling Spindle
-
Motor:
-
Leadshine 1500W pure servo motor
-
Control System:
-
Import Taiwan LNC control system
-
Machine Table:
-
Vacuum Machine Table,7.5KW Adsorption pump
-
Dust Collector:
-
5.5KW Dust Collector with two bags
-
transmission:
-
Genuine original 25 square gauge
-
Slider:
-
Genuine original 25 slinder
-
Tool setting method:
-
Automatic tool setting
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2800 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhonggong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3600*2200*1950
-
Power (kW):
-
9
-
Weight (KG):
-
2600
-
Product name:
-
Longteng third-generation R8-speed cutting cnc machine equipment
-
Spindle power:
-
GDZ Big Power 9KW Air Cooling Spindle
-
Motor:
-
Leadshine 1500W pure servo motor
-
Control System:
-
Import Taiwan LNC control system
-
Machine Table:
-
Vacuum Machine Table,7.5KW Adsorption pump
-
Dust Collector:
-
5.5KW Dust Collector with two bags
-
transmission:
-
Genuine original 25 square gauge
-
Slider:
-
Genuine original 25 slinder
-
Tool setting method:
-
Automatic tool setting
-
After-sales Service Provided:
-
Field installation, commissioning and training

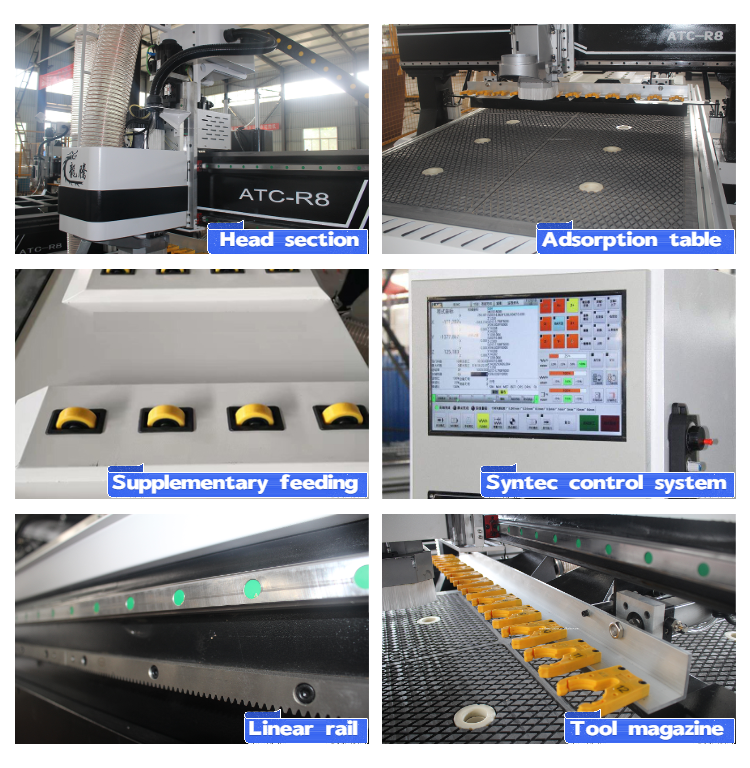

Good Offer CNC ATC 1328 Linear 12 Tools Panel Cutting CNC ATC Fast Speed CNC ATC
|
Working operation |
1220*2440*200mm(suport 2800mm custom) |
|
Speed of spindle |
0-24000/min |
|
Spindle |
GDZ 9KW air cooling spindle |
|
Speed of tool changing |
Top speed |
|
Inverter |
11KW Hpmant |
|
Control system |
Taiwan MW system |
|
The transmission track |
Y axis original Taiwan Hiwin 25 linear rail |
|
Slider |
Y axis original Taiwan Hiwin 25 slider |
|
Cable |
High flexible shielded towing chain cable |
|
Limit |
Special for cutting machine |
|
Rack |
Original HICK |
|
Electric elements |
Original Zhengtai |
|
Reducer |
Motovario reducer |
|
Travel speed |
120000mm/min |
|
Operate speed |
35000mm/min |
|
Adsorb pump |
Water cycle 7.5kw |
|
Dust collector |
double bag 5.5kw |
|
Working Voltage |
AC380 v |
|
Machine body |
Heavy aging treatment welding bed(five face milling and drilling precision 0.02mm) |
|
Feed positioning |
Double-sided all-package positioning cylinder with aluminum strip |
|
Auto unloading |
Fully automatic tiled horizontal push blanking belt auxiliary aluminum bar stop function |
|
Dusting method |
Automatic spindle partitioning integrated dust removal and secondary dust removal. |
|
Machine appearance |
Third generation patent structure, independence controller cabinet |
|
Z axis module |
Z axis motor locking function, Z axis integrated motor screw support seat |
|
Gantry instruction |
Beam thick wall square pipe and steel belt welding synchronous bed processing technology, the column integral casting structure
|
