Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
XXR-M158.75 9BB-22%
-
Product name:
-
Solar Cells 9bb Mono 22% 22.2% 23% Tab Wire Pv Cells
-
material:
-
monocrystalline silicon
-
color:
-
dark blue
-
size:
-
158.75*158.75mm
-
busbar:
-
9BB
-
weight:
-
2 kg /120pcs
-
power watt:
-
5.51w
-
efficiency:
-
22%
-
158.75mm solar cell stock:
-
300K pcs stock
-
Warranty:
-
5YEARS
Quick Details
-
Type:
-
PERC
-
Cell Efficiency:
-
22%
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
OEM
-
Model Number:
-
XXR-M158.75 9BB-22%
-
Product name:
-
Solar Cells 9bb Mono 22% 22.2% 23% Tab Wire Pv Cells
-
material:
-
monocrystalline silicon
-
color:
-
dark blue
-
size:
-
158.75*158.75mm
-
busbar:
-
9BB
-
weight:
-
2 kg /120pcs
-
power watt:
-
5.51w
-
efficiency:
-
22%
-
158.75mm solar cell stock:
-
300K pcs stock
-
Warranty:
-
5YEARS

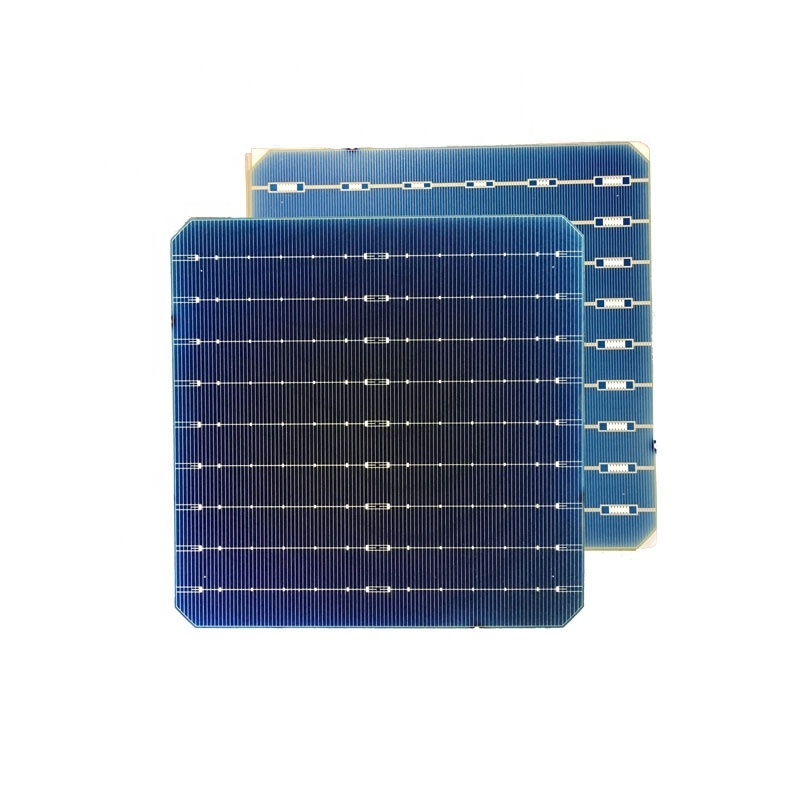

158.75*158.75mm Solar Cells 9bb Mono 22% 22.2% 23% Tab Wire Pv Cells In Good Price
158.75*158.75mm Solar Cells 9bb Mono 22% 22.2% 23% Tab Wire Pv Cells In Good Price
|
Product name |
158.75*158.75mm Solar Cells 9bb Mono 22% 22.2% 23% Tab Wire Pv Cells In Good Price |
|
size |
158.75*158.75 |
|
material |
monocrystalline silicon |
|
color |
dark blue
|
|
busbar |
9BB continuous busbar |
|
power watt |
5.51w
|
| efficiency | 22% |
|
Vmpp
|
0.53V |
| Impp | 10.39A |
1158.75*158.75mm Solar Cells 9bb Mono 22% 22.2% 23% Tab Wire Pv Cells In Good Price
datasheet
| Efficiency Code | 2150 | 2160 | 2180 | 2190 | 2200 | 2210 | 2220 | 2230 | 2240 |
| Efficiency(%) | 21.5 | 21.6 | 21.8 | 21.9 | 22.0 | 22.1 | 22.2 | 22.3 | 22.4 |
| Pmax(W) | 5.390 | 5.415 | 5.465 | 5.490 | 5.515 | 5.540 | 5.565 | 5.590 | 5.615 |
| Vmp(V) | 0.510 | 0.510 | 0.510 | 0.510 | 0.515 | 0.515 | 0.515 | 0.520 | 0.520 |
| Imp(A) | 10.568 | 10.617 | 10.716 | 10.765 | 10.709 | 10.758 | 10.806 | 10.751 | 10.799 |
| Voc(V) | 0.602 | 0.602 | 0.602 | 0.602 | 0.608 | 0.608 | 0.608 | 0.614 | 0.614 |
| Isc(A) | 11.097 | 11.148 | 11.252 | 11.303 | 11.245 | 11.296 | 11.347 | 11.288 | 11.339 |
If you are not sure whether it is what you need,you need our support
CLICK HERE
DETAILED IMAGES
---------§-------- -
PYSICAL
CHARACTERISTIC
| Dimension |
156mm X156mm ± 0.25mm
|
|||||
| Solar Cell Thickness | 180µm ± 20µm | |||||
| Front(-) |
Three 1mm wide bus bars (silver) with distance 52mm
|
||||||||||
| Back(+) | 1.5mm wide silver/aluminum soldering pads, aluminum local back surface field. | |||||||||||
TYPICAL TEMPERATURE
COEFFICIENTS
| Voltage | -0.309mV/K |
| Current | +3.50 mA/K |
| Power | -0.342%/K |
CONDUCTOR
PATTERNS
