Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Weight:
-
3Kg/sq.m
-
Chemical Composition:
-
Al Mg Mn Cu P S
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Trizip
-
Model Number:
-
Trizip25-330
-
Color:
-
RAL colors
-
Certificate:
-
ISO:9001:2008/FM Approvals
-
Thickness:
-
0.7-1.2mm
-
Length:
-
prefabricate-1m-11.5m; on site fabricate-customized
-
Surface:
-
PVDF coated; PE coated; Stucco
-
Effective Width:
-
330mm
-
Rib Height:
-
25mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Weight:
-
3Kg/sq.m
-
Chemical Composition:
-
Al Mg Mn Cu P S
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Trizip
-
Model Number:
-
Trizip25-330
-
Color:
-
RAL colors
-
Certificate:
-
ISO:9001:2008/FM Approvals
-
Thickness:
-
0.7-1.2mm
-
Length:
-
prefabricate-1m-11.5m; on site fabricate-customized
-
Surface:
-
PVDF coated; PE coated; Stucco
-
Effective Width:
-
330mm
-
Rib Height:
-
25mm
Product Information
|
Product Description:

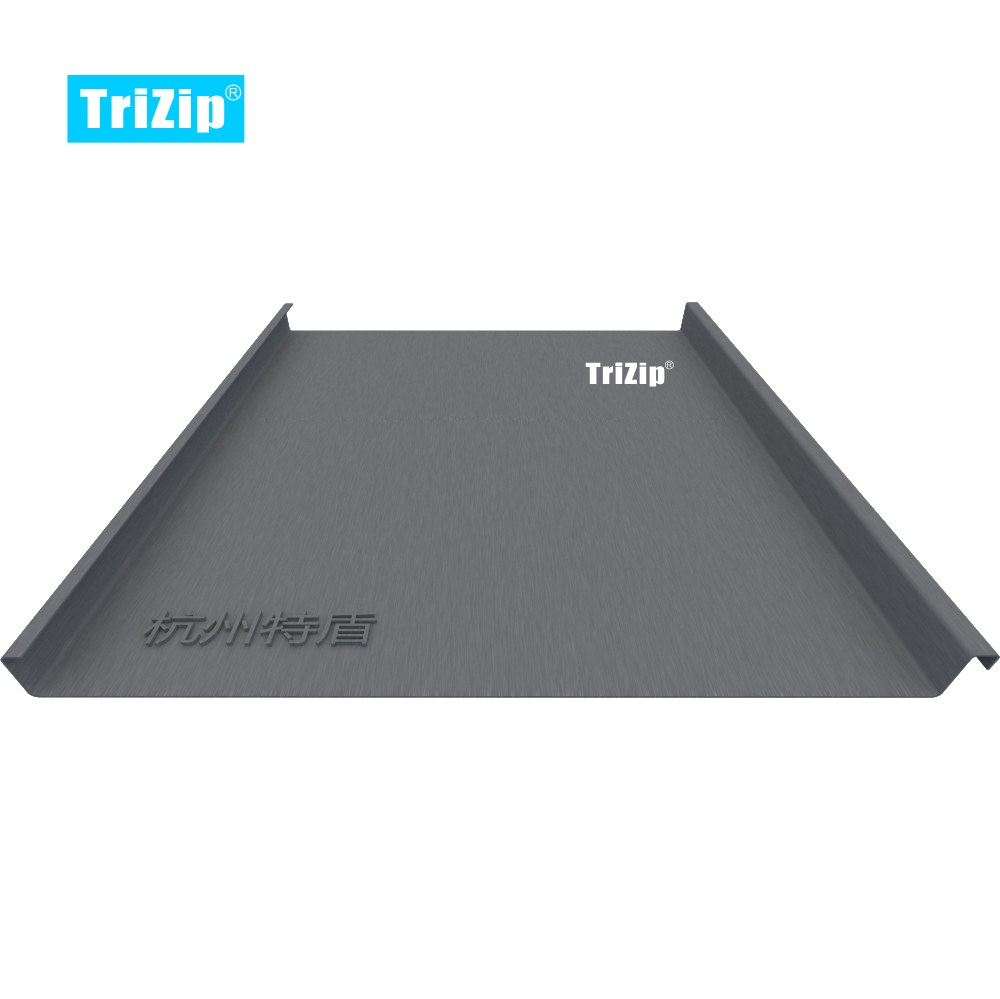

Triseam Double Lock Standing Seam Roofing, Facade, Cladding System
Product Type:
Triseam25-330
Rib Height:
25mm
Effective Width:
330mm
Common Raw Material:
Aluminum Alloy
Common Thickness:
0.7mm-1.2mm
Material Surface Finishing:
PVDF, PE, Stucco
Service Life:
More than 50 years in common climate condition
Product Application:
Roofing, Cladding, Facade System
for
Villa, Resort, Hotel, Hospital, School, Apartment, Park, etc.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Outstanding Features and Key Advantages
|
Triseam Double Lock Standing Seam Roofing/Façade System
was developed from Europe Standing Seam techniques which had been widely
implemented from mid-19 century. Standard panel seam height 25mm, panel connects panel by the rib seam zipped by special machine. This seam zipping technique fulfills various architecture shapes. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Triseam Double Lock Standing Seam Roofing System
is a very flexible, high-performance product which forms a robust water-proofing
surface for the architectures with many outstanding advantages: 1. No hole, no punching installation 2. No connection point or overlapping 3. Can fixed vertically 4. Multiple choice of different raw materials and panel shapes 5. Maintenance-free 6. Curved panel producible 7. Water-proof & ventilated 8. No rely on sealant or adhesive 9. Hidden installation clips absorb the thermal expansion 10. On-site fabrication enable extra-long panel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Structural/Functional Diagram of Roofing System
|
Water-proof & Ventilated Layer:
Suggest to apply waterproof breathable membrane to prevent the vapor inside the building penetrates into the roofing system. The membrane need to be laid to the side of higher temperature. Be careful for the punching area handling to enable airtightness.
Sound Proof Layer: Our roofing system meets acoustic design requirements, to enable better sound insulation, we apply rigid mineral insulation board to increase sound insulation density. The application of perforated inner panel and insulation board in the roofing system helps reducing the echo and reverberation inside the building. Thermal Insulation Layer: Our insulation layer meets the project and L2 level requirements, the new standard of BRE requires enhancing the thermal insulation for all architectures by applying the minimum U value. Under the coordination of the business partners and our experts, we build the feasible model for our roofing system and the surrounding details. Often laying the mineral insulation cotton between the metal inner board and roof panel to form a sandwiching layer which prevents the heat transmission during metal materials, the insulation materials affects the whole system U value. Welding: Special on site welding technique can ensure a better water proof effect, no adhesive or sealant needed. Lightning Protection: Metal roofing can form an effective lightning arrester |
|
|
|
|
||||
Special Pattern of Trizip
Various Colors Options
Standing Seam Cases Done by Trizip
