- Product Details
- {{item.text}}
Quick Details
-
Luminous Efficacy(lm/w):
-
125
-
Luminous Intensity:
-
6000-7000mcd
-
Luminous Flux(lm):
-
2600lm,3750lm,4800lm
-
Optical Attenuation(%):
-
2
-
Power Dissipation:
-
0.72
-
Viewing Angle(°):
-
80*150°,150*80°
-
Color Temperature:
-
3000K4000k500K5700K6500K
-
Operating Temperature(℃):
-
-40 - 50
-
Storage Temperature(℃):
-
-20 - 50
-
Place of Origin:
-
Jiangsu, China
-
Materials:
-
Aluminum + Optical PC
-
Input Current:
-
750mA, 1000mA, 1250mA
-
Luminous Efficiency:
-
130lm/w 125lm/w 120lm/w
-
LED:
-
3030
-
Input Voltage:
-
34~38v
-
Applications:
-
Street lighting, tunnel lighting, high/low bay lighting, flood light
-
Product Dimensions:
-
298*70*38mm
-
working temperature:
-
-40~50 degree
-
Lamp Luminous Efficiency(lm/w):
-
125
-
Certification:
-
ce RoHS
Quick Details
-
Color Temperature(CCT):
-
5000K (Daylight)
-
Warranty(Year):
-
5-Year
-
Support Dimmer:
-
Yes
-
Luminous Efficacy(lm/w):
-
125
-
Luminous Intensity:
-
6000-7000mcd
-
Luminous Flux(lm):
-
2600lm,3750lm,4800lm
-
Optical Attenuation(%):
-
2
-
Power Dissipation:
-
0.72
-
Viewing Angle(°):
-
80*150°,150*80°
-
Color Temperature:
-
3000K4000k500K5700K6500K
-
Operating Temperature(℃):
-
-40 - 50
-
Storage Temperature(℃):
-
-20 - 50
-
Place of Origin:
-
Jiangsu, China
-
Materials:
-
Aluminum + Optical PC
-
Input Current:
-
750mA, 1000mA, 1250mA
-
Luminous Efficiency:
-
130lm/w 125lm/w 120lm/w
-
LED:
-
3030
-
Input Voltage:
-
34~38v
-
Applications:
-
Street lighting, tunnel lighting, high/low bay lighting, flood light
-
Product Dimensions:
-
298*70*38mm
-
working temperature:
-
-40~50 degree
-
Lamp Luminous Efficiency(lm/w):
-
125
-
Certification:
-
ce RoHS

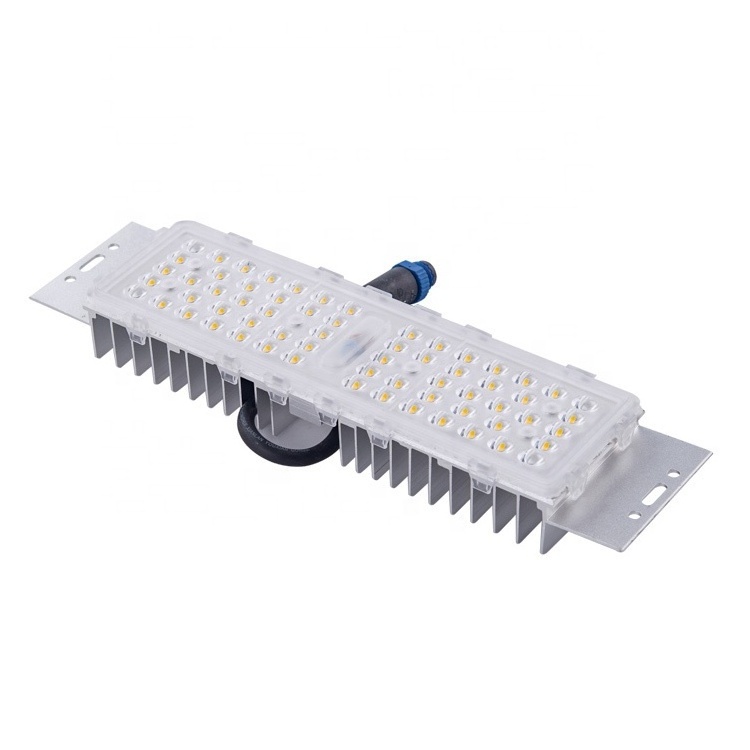

30W 40W 50W IP68 Outdoor 3030 high power led module LED Retrofit Kits led flood light module
Main parameter:
| LED Light Source | 3030 60pcs |
| Output Power | 30W,40W, 50W |
| Luminous Flux | 2600lm,3750lm, 4800lm |
| Input Current | 750mA, 1000mA, 1250mA |
| Input Voltage Range | 34~38Vdc |
| Lighting Distributions | 80*150°,150*80° |
| CCT | 3000K,4000K,500K,5700K,6500K |
| IP Class | IP68 |
| Product Fixture Size | 298*70*38mm |
| Packing Details | xx*xx*xxmm (20pcs), 15kgs |
Mechanical Drawing:
More requirement about the item,Please send quote request
Light distribution:
More requirement about the item,Please send quote request
More requirement about the item,Please send quote request
Why Choose the module instead of using whole light?
More requirement about the item,Please send quote request
Application:
More requirement about the item,Please send quote request
