Wintop WS-3 the outer and inner layer of drums are made of carbon steel. When gas is ignited, hot air fills full in gap between the outer and inner layers, the hot air is around the inner drum, this avoid the beans in drum closest to the burner are subjected to higher temperature than beans away from the burner,this gives very even heat to the coffee beans. Even heat can maximize the rich flavor from your roasted coffee beans.
- Product Details
- {{item.text}}
Quick Details
-
Function:
-
temperature control
-
Power (W):
-
500
-
Voltage (V):
-
220
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wintop/Santoker
-
Model Number:
-
WS-3
-
Model No.:
-
WS-3
-
Color:
-
Red, Black, White
-
Drum Material:
-
Double Walled Carbon steel
-
Roasting Capacity:
-
500g-3200g
-
Data logger:
-
Mobile Phone WIFI , USB computer
-
Roasting Time:
-
10-15 minutes
-
Heating source:
-
LPG/NG/PROPANE/ELECTRIC
-
Certificate:
-
CE
-
Damper:
-
Manual damper
-
Motor:
-
4pcs
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Hotel, Commercial
-
Type:
-
Commercial, Drum Coffee Roaster
-
Function:
-
temperature control
-
Power (W):
-
500
-
Voltage (V):
-
220
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wintop/Santoker
-
Model Number:
-
WS-3
-
Model No.:
-
WS-3
-
Color:
-
Red, Black, White
-
Drum Material:
-
Double Walled Carbon steel
-
Roasting Capacity:
-
500g-3200g
-
Data logger:
-
Mobile Phone WIFI , USB computer
-
Roasting Time:
-
10-15 minutes
-
Heating source:
-
LPG/NG/PROPANE/ELECTRIC
-
Certificate:
-
CE
-
Damper:
-
Manual damper
-
Motor:
-
4pcs
Product Description

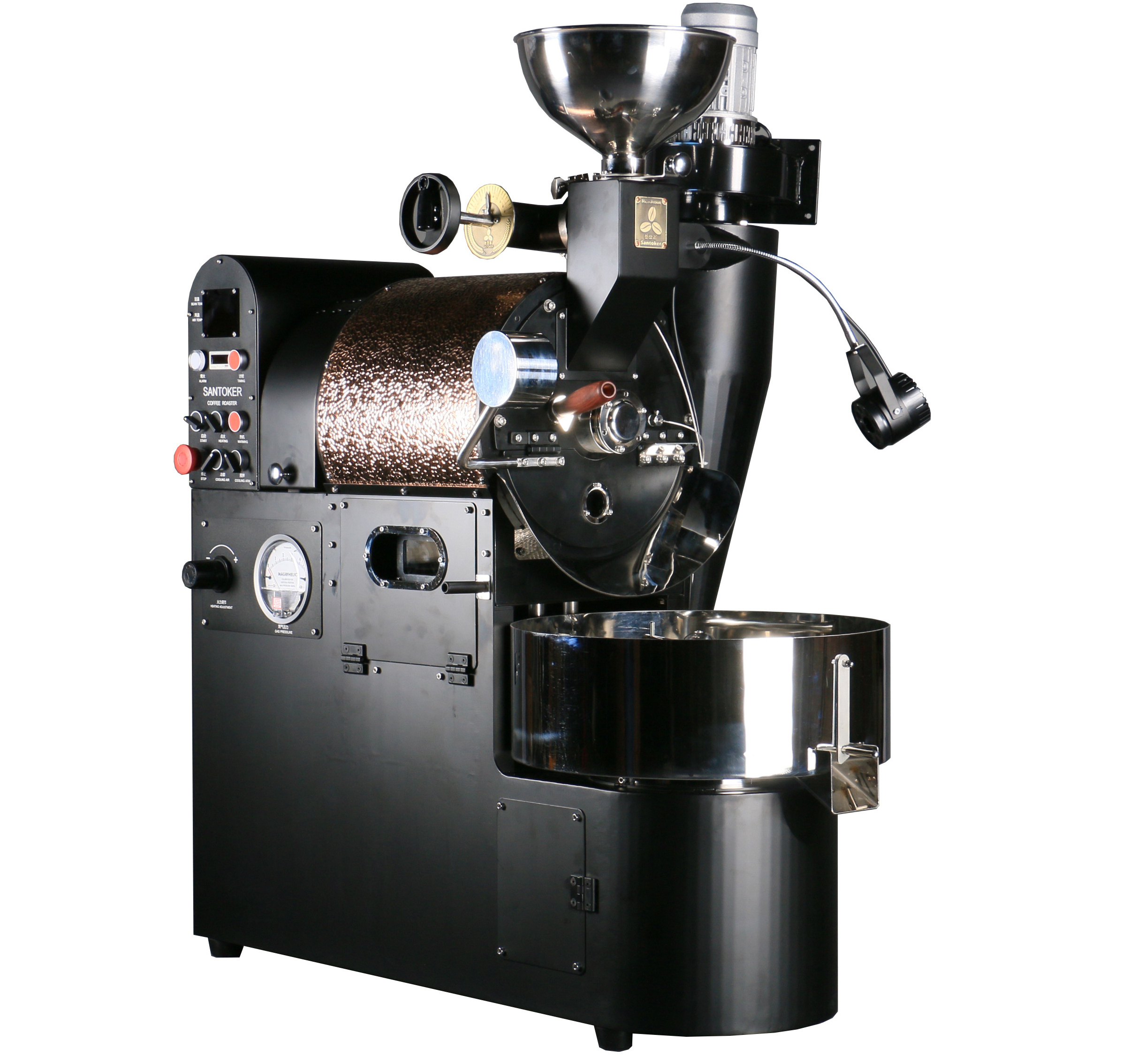

Wintop Santoker 3kg specialty commercial shop coffee roaster
If you compared coffee roasters (2-3kg) with several suppliers already, but still don't know how to select a coffee roaster in high performance but an affordable price?
WS series 3 kg coffee roaster is your answer, it is built with first-class craftsmanship and best raw materials from around the world, It is the most popular item selected by coffee shop owners. It can evenly roast coffee beans from 500g to 3500g.
|
WS-3 3kg Specality Coffee Roaster Specifications
|
|
|
|
|||
|
Heating Source
|
LPG/NG/Propane
|
Electric
|
|
|||
|
Model No.
|
WS-3
|
WS-3
|
|
|||
|
Heating Type
|
Semi - hot air
|
Semi- Hot Air
|
|
|||
|
Voltage
|
Single Phase 220V, 50/60HZ
|
Single Phase 220V, 50/60HZ
|
|
|||
|
Power
|
500W
|
8000W
|
|
|||
|
Roasting Capacity
|
500g- 3200g
|
500g - 3200g
|
|
|||
|
Data Logger
|
Mobile Phone Bluetooth &Computer USB
|
Mobile Phone Bluetooth & Computer USB
|
|
|||
|
Machine Dimension
|
112*73*125 cm
|
112*73*125 cm
|
|
|||
|
Weight
|
180kg
|
180kg
|
|
|||
Outstanding Features
1) WS-3 coffee roaster is availabe by both gas and electric types.
2) WS-3 is made of double walled carbon steel drum which is the best materials for coffee roasting.
3) WS-3 is available in Manual and Automatic types.
4) All coffee roasters can achieve both USB computer work with Aristan and Mobile Phone Bluetooth connection for data logger
5) Manual Dampers for all capacity roasters
6) Precise temperatures and hot air volume control
7) Vacuume pressure gauge for options
8) 3kg come with gas gauge knob lock function wihich avoid any possible mis-operation
9) one key warming up function attached
Detailed Images
Why Double-walled Drum?
Smoke Exhaust System
Hot air volume adjust in precision by hand operation; The chaff cyclone connects to the coffee roaster unit simply by a hoop, the exhaust smoke pipe is parallel to ground and shortest between the chaff cyclone and main unit, that greatly improve the hot air working efficiency.
Advantages:
● Easy to install and uninstall
● Easy to clean and mainten
● Get a large volume smoke out of the drum in fastest way to avoid coffee beans get smoky flavor
● Safe
Mobile Phone APP Application
Forget your handwriting roasting table, forget your computer data logger. Now you can watch and record your roasting profile details on your mobile phone. Just download" gangs of roasters" from your mobile phone APP store, then connect to WS-3 by Bluetooth to enjoy and share your own roast with friends immediately.
You can also use USB computer work with Artisan software for data logger.
High Performance Burner
Santoker team work hard for developing the high performance heating burner. it is achieved gentle and evenly heating to the drum, plus the durable insulation layer around the drum, you can maximum use the heat only for beans which saves the fuel.
Gas Gauge Locking Function
WS-3 Gas gauge is more precise and the gas pressure knob can be locked.
After you adjusted gas pressure value, you can push the gas pressure knob into machine to lock the operation and avoid someone else touching or misoperating it.
Drum Speed Control.
If you are not satisfied with constant drum roasting, and you want to develop more tastes from the roasting beans, you can try to roast the coffee beans under different drum speeds, that will bring you more surprise.
Adjust Range: 0-100RPM
On Trade Fair
Customers Good Feedback
Cerfications
Package And Delivery
|
Packaging
|
|
|
|
100Size
|
Main unit: 116 (L) * 67(W) * 85 (H)cm
Chaff Collector: 105(L)*30(W)*50(H) cm
|
|
|
Weight
|
230kg
|
|
|
Packaging Details
|
The package material: Plywood box
WS-3 will be packed in 2 crates, the package dimension is :
Main unit: 116 *67*85 cm
Chaff Collector: 105 * 30 * 50 cm
Main Unit Gross Weight is : 195kg
Chaff Collector Gross Weight is :35kg
Total Gross Weight: 230kg
|
|
