Quick Details
-
Applicable Industries:
-
SPRING
-
Wire diameter:
-
9-20mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WNJ
-
Weight (KG):
-
35000
-
Applicable Industries:
-
SPRING
-
Wire diameter:
-
9-20mm
PRODUCT PARAMETERS
1. Pitch and Z axis separate control.
2. Three axis can work in high speed separately or synchronously.
3. Computer interface displayed in English make which the operation easy.
4. Equipped with right or left-handed winding blade rest.
5. Make sample by hand.
2. Three axis can work in high speed separately or synchronously.
3. Computer interface displayed in English make which the operation easy.
4. Equipped with right or left-handed winding blade rest.
5. Make sample by hand.
PRODUCT SPECIFICATIONS
|
Item Name
|

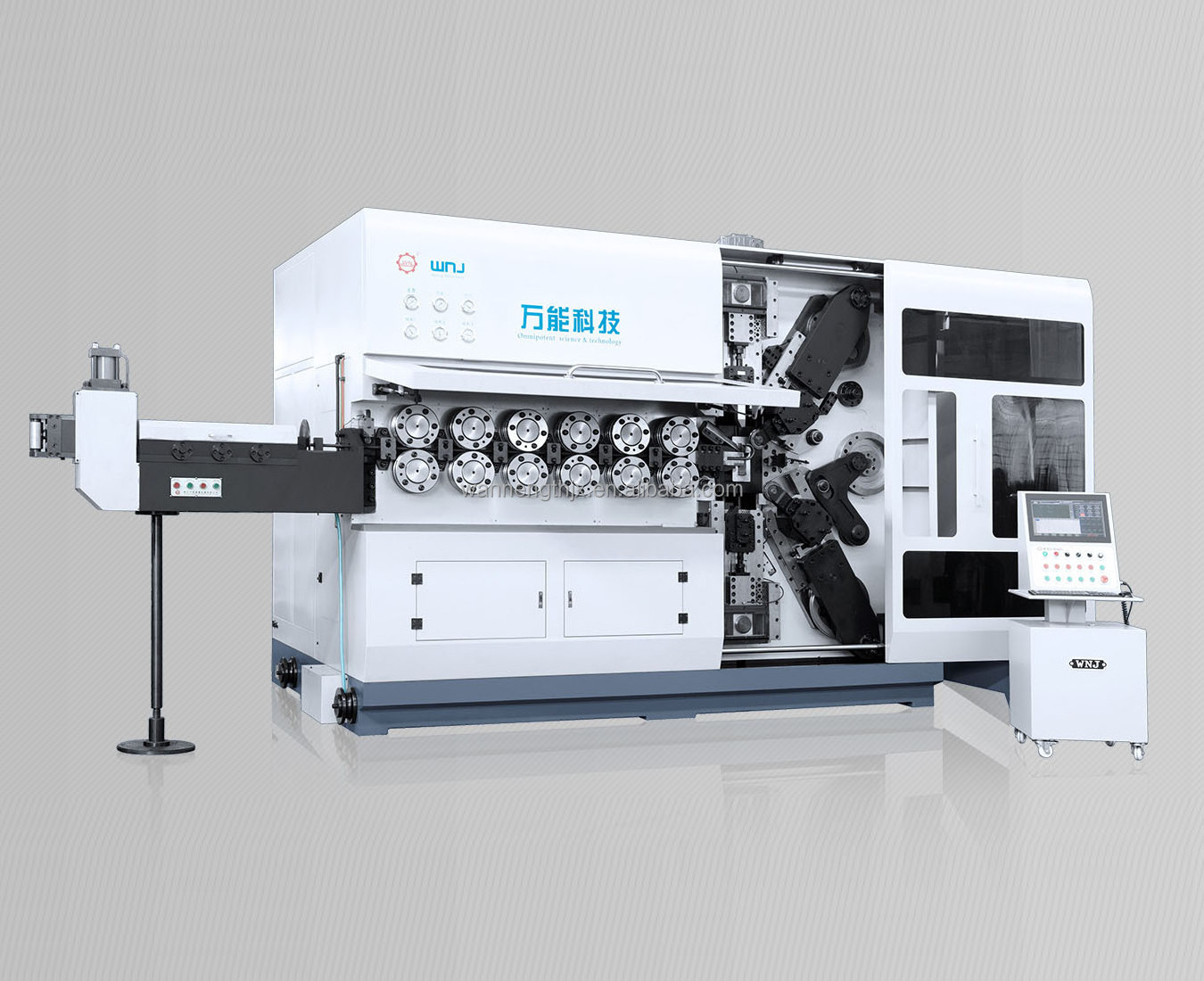

Spring Coiling Machine
|
|
Style
|
TK-7200
|
|
Color
|
Grey/Blue
|
|
Machining Wire Diameter (mm)
|
Φ9- Φ20
|
|
Maximum Machining Outside Diameter(mm)
|
Φ260
|
|
Number of The CNC Axis
|
Seven axis(wire feed,space,outside diameter,up-cut axis,down-cut axis)
|
|
Length of The Feeding Wire
|
no limitation
|
|
Speed of The Wire Feed
|
87m/min
|
|
Rotation
|
left or right
|
|
Forming Way
|
double points
|
|
Number of The Wire Feed Wheel
|
6pairs
|
|
Cam Axis Motor
|
15
|
|
Pitch Axis Motor (KW)
|
11
|
|
Wire Feed Axis Motor KW)
|
16*6
|
|
Up-cut Blade Axis Motor (KW)
|
42
|
|
Down-cut Blade Axis Motor (KW)
|
42
|
|
Machine Size (mm)
|
6800*4000*3000
|
|
Machine Weight(kg)
|
35000
|
|
Power
|
Three phase 380V.AC.50HZ
|
PRODUCT CONFIGURATION
Spring Coiling Machine
Machine Knives
Coiling
Spring
