Quick Details
-
After-sales Service Provided:
-
Video technical support, Online support, Engineers available to service machinery overseas
-
Clamp Force(Ton):
-
50~1000
-
Injection Volume(cc):
-
500~10000
-
Injection Pressure(kgf/xm2):
-
1800
-
Platen Size(mm):
-
300*300~1200*1200
-
Plunge Stroke(mm):
-
300~500
-
Heater Capacity(kw):
-
8.4~42
-
Gross Weight(Ton):
-
5.5~21
-
Clamping Force (kN):
-
200
-
Certification:
-
CE ISO9001
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Video technical support, Online support, Engineers available to service machinery overseas
-
Clamp Force(Ton):
-
50~1000
-
Injection Volume(cc):
-
500~10000
-
Injection Pressure(kgf/xm2):
-
1800
-
Platen Size(mm):
-
300*300~1200*1200
-
Plunge Stroke(mm):
-
300~500
-
Heater Capacity(kw):
-
8.4~42
-
Gross Weight(Ton):
-
5.5~21
-
Clamping Force (kN):
-
200
-
Certification:
-
CE ISO9001
Full Automatic Energy-Saving Overmolding Machine

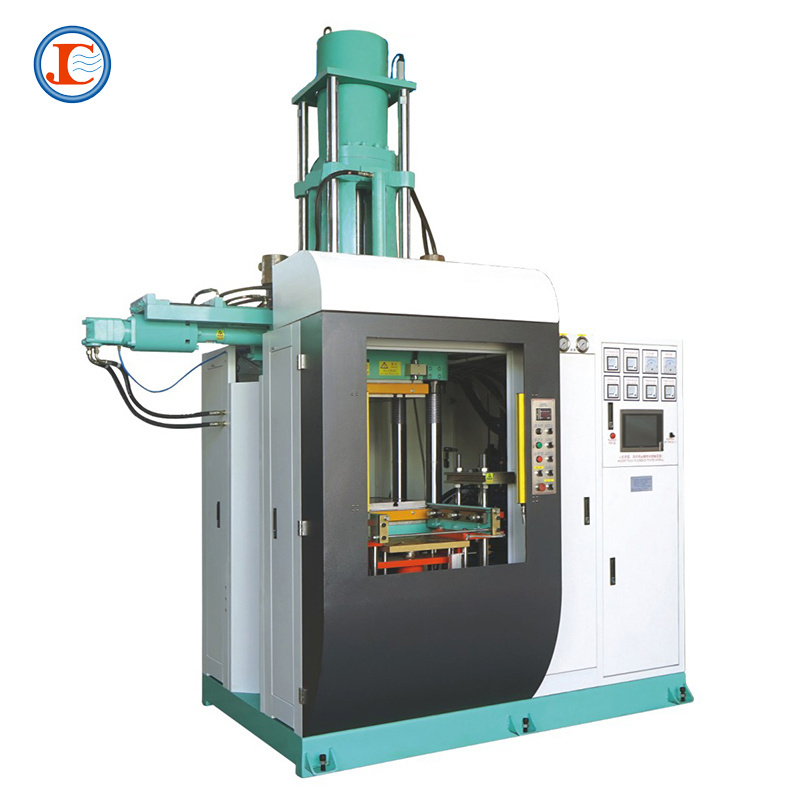

VI-AO Series Vertical "all-in-out" Silicone/Ssynthetic Rubber Injeciton Molding Machine
Feature:
• Suitable for automotive and electronic ru bber parts, high/co ld temp precision rubber parts, especially NBR products
• All-in-out structure, sprue l ess injection without material loss contro l lable injecting material temperature
• Excellent for high precision molding part
• 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g
• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
• Servo-Controlled system -Up to 40% energy saving
• Proportional backpressure controlling characteristic
| Model | Unit | 50VI-AO | 100VI-AO | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO | 800VI-AO | 1000VI-AO |
| Clamping Force | Ton | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Injection Capacity | cc | 500 | 500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 300*300 | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 50 | 50 | 100 | 100 | 100 | 100 | 150 | 150 |
| Plunger stroke | mm | 300 | 350 | 400 | 400 | 400 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 350~450 | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 | 650~800 | 650~800 |
| Distance of Tie bar | mm | 400*140 | 515*230 | 640*310 | 820*395 | 820*395 | 970*500 | 1140*600 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper Mold-Lower Mold | ||||||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5 | 10 | 15 | 15 | 15 | 20 | 20 | 25 |
|
Electric Heating Power |
Kw | 8.4 | 10 | 15.3 | 24 | 24 | 29.75 | 35 | 42 |
| Total Power | Kw | 16.9 | 20.5 | 30.3 | 39 | 39 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 5.5 | 6 | 7.5 | 9 | 10 | 14.2 | 17.5 | 21 |
|
Dimension (L*W*H) |
mm |
2000*1500 *H2800 |
2400*1650 *3200 |
2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
L3450*W2750 *H4500 |
3750*3050 *5000 |
