Quick Details
Quick Details
-
Max. Voltage:
-
500V
-
BRAND:
-
HF-SHAW or OEM
HF-Shaw Electronic
APPLICATION

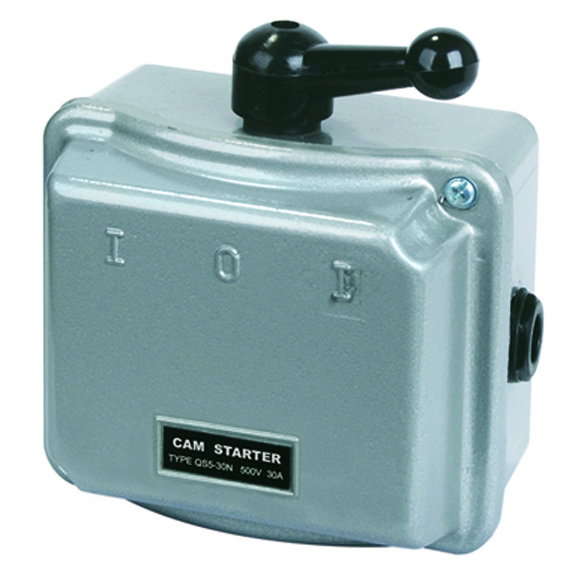

QS5 cam starter is mainly used to start forward or backward and stop directly three-phase asynchronous electric motor with AC 50Hz, voltage up to 500V and capacity up to 7.5kW-30KW.It can also be used for changeover from one kind of circuit to another.
SPECIFICATION
| Model | Mark | Rated current | Motor control | Electrical life | Mechanical life | Frequency of | Applications | Position of |
| (A) | capacity(HP) | (times) | (per hr) | operation(per hr) | lever | |||
| QS5-15A | I-O | 15 | 5.5 | 100000 | 250000 | 200 | ON-OFF | 0-60 |
| QS5-30A | 30 | 10 | Switching | |||||
| QS5-15N | I-O-I | 15 | 5.5 | Forward | 60-0-60 | |||
| QS5-30N | 30 | 10 | & reverse | |||||
| QS5-15P/3 | I-O-II | 15 | 5.5 | for 3 pole | 0-60 | |||
| QS5-30P/3 | 30 | 10 | two circuits | |||||
| QS5-63A | I-O | 63 | 22 | 80000 | 200000 | 180 | ON-OFF | 0-60 |
| QS5-100A | 100 | 30 | Switching | |||||
| QS5-63N | I-O-I | 63 | 22 | Forward | 60-0-60 | |||
| QS5-100N | 100 | 30 | & reverse | |||||
| QS5-63P/4 | I-O-II | 63 | 22 | for 3 pole | 60-0-60 | |||
| QS5-100/P4 | 100 | 30 | two circuits |
