7. Steering tires
8. Ground operation panel
9. Power unit box
10. Fixed brake wheel
11. Entrance stairs
12. Boom
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
4.5kw
-
Min. Lifting Height:
-
4m
-
Table Size:
-
2300*1130mm
-
Overall Dimensions:
-
2475*810*2158mm
-
Weight:
-
2000 kg
-
Product name:
-
Self-propelled battery power hydraulic aerial work scissor lift table
-
Key words:
-
self-propelled battery power scissor lift table
-
Load capacity:
-
223-500kg for self-propelled battery power scissor lift table
-
Lift Drive:
-
Hydraulic and electric
-
Operation way:
-
Ground Control and platform control
-
Material:
-
Q345B Manganese Steel
-
Lifting height:
-
6-14m for self-propelled battery power scissor lift table
-
Color:
-
Orange red for self-propelled battery power scissor lift table
-
Platform size:
-
0.9x0.7m for self propelled scissor lift
-
Origin:
-
China Original
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Welift
-
Power:
-
4.5kw
-
Min. Lifting Height:
-
4m
-
Table Size:
-
2300*1130mm
-
Overall Dimensions:
-
2475*810*2158mm
-
Weight:
-
2000 kg
-
Product name:
-
Self-propelled battery power hydraulic aerial work scissor lift table
-
Key words:
-
self-propelled battery power scissor lift table
-
Load capacity:
-
223-500kg for self-propelled battery power scissor lift table
-
Lift Drive:
-
Hydraulic and electric
-
Operation way:
-
Ground Control and platform control
-
Material:
-
Q345B Manganese Steel
-
Lifting height:
-
6-14m for self-propelled battery power scissor lift table
-
Color:
-
Orange red for self-propelled battery power scissor lift table
-
Platform size:
-
0.9x0.7m for self propelled scissor lift
-
Origin:
-
China Original
Products Description

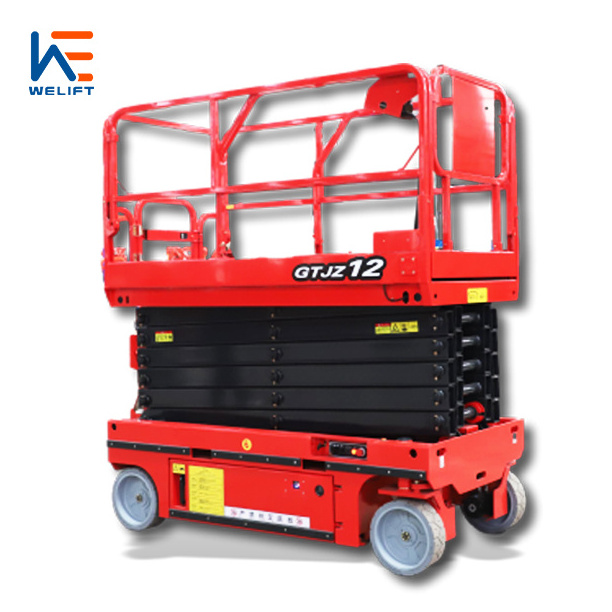

300kg 6-14m Self-propelled battery power hydraulic aerial work scissor lift table with Four tires
·
Scissor Aerial Work Platform Features: lifting mechanism of high-strength
·Manganese steel rectangular tube production. With a safety device to prevent
·Overloading of the lift. Provided to prevent hydraulic line rupture safety
·Protection valve. Emergency lowering device in case of a power outage.
Advantages of Scissor lift
1. Platform entrance door
2. Platform entry bar
3. Platform guardrail
4. Lanyard fixing point
5. Platform extension
6. Platform extension release pedal
Details Images
|
Model
|
Platform height
|
Working height
|
Platform size
|
Dimension size
|
Weight
|
|
GTJZ-6A
|
6m
|
8m
|
2260*810mm
|
2475*810*2158mm
|
1850kg
|
|
GTJZ-6
|
6m
|
8m
|
2260*1130mm
|
2475*1150*21580mm
|
2060kg
|
|
GTJZ-8A
|
8m
|
10m
|
2260*810mm
|
2475*810*2286mm
|
1980kg
|
|
GTJZ-8
|
8m
|
10m
|
2260*1130mm
|
2475*1150*2286mm
|
2190kg
|
|
GTJZ-10
|
10m
|
12m
|
2260*1130mm
|
2475*1150*2414mm
|
2430kg
|
|
GTJZ-12
|
12m
|
14m
|
2260*1130mm
|
2475*1150*2542mm
|
2960kg
|
|
GTJZ-14
|
14m
|
16m
|
2260*1130mm
|
2840*1390*2590mm
|
3320kg
|
Product Paramenters
1. Quiet and convenient devices
This scissor lift takes storage battery as the power source, and makes low noise and no emission when working, so it can be used indoor occasions, such as workshops, warehouse, hotels, etc
2. Scissor structure
The scissor structure are made by advanced CNC machine, which make every lift parts extremely precise and can cut-max 20 mm thickness steel structure and error will be less than three-thousandths of a millimetre.
3. Flexible
The steering wheel can make a 90°turn in situ, can runin both high and low speeds, and can be used in small place.
4. Larger working space
The platform can extend on one side, which can enlarge the working space.
5. Easy understanding control box-on the platform.
Each control button has the instruction mark, the user can understand how it works and easy to operate.
6. Emergency stop value and charger hole, and the voltage can be made as your local supply.
7.Each lift will be fully tested before factory, we will assure every part works and make the video for the customer.
