CS series horizontal lathe is suitable for all kinds of turning work, such as turning internal and external cylindrical surfaces,conical surfaces, and other back and end faces. It can also process all kinds of common threads, such as metric, British, modulus,diameter pitch threads, as well as drilling, reaming, tapping, broaching trunking, etc.
- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
9 - 1600 r.p.m
-
Width of bed (mm):
-
390
-
Max. Turned Length (mm):
-
2950 mm
-
Spindle Motor Power(kW):
-
7.5
-
Year:
-
2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MINGXU
-
Model Number:
-
CS6240/3000
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4632*1000*1230
-
Weight (KG):
-
2850 KG
-
Swing dia. over bed:
-
400
-
Swing dia. over cross slide:
-
200
-
Max. swing dia. over gap:
-
630
-
Effective length in gap:
-
240
-
Max. workpiece length:
-
3000
-
Max. turning length:
-
2950
-
Guideway width:
-
390
-
Spindle through hole dia.:
-
52
-
Taper of spindle bore:
-
Morse taper No. 6
-
Max. travel of compound rest:
-
145
Quick Details
-
Max. Length of Workpiece (mm):
-
3000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
52
-
Range of Spindle Speed(r.p.m):
-
9 - 1600 r.p.m
-
Width of bed (mm):
-
390
-
Max. Turned Length (mm):
-
2950 mm
-
Spindle Motor Power(kW):
-
7.5
-
Year:
-
2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MINGXU
-
Model Number:
-
CS6240/3000
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4632*1000*1230
-
Weight (KG):
-
2850 KG
-
Swing dia. over bed:
-
400
-
Swing dia. over cross slide:
-
200
-
Max. swing dia. over gap:
-
630
-
Effective length in gap:
-
240
-
Max. workpiece length:
-
3000
-
Max. turning length:
-
2950
-
Guideway width:
-
390
-
Spindle through hole dia.:
-
52
-
Taper of spindle bore:
-
Morse taper No. 6
-
Max. travel of compound rest:
-
145
Products Description
The above price is a deposit, and you need to contact customer service for quotation.

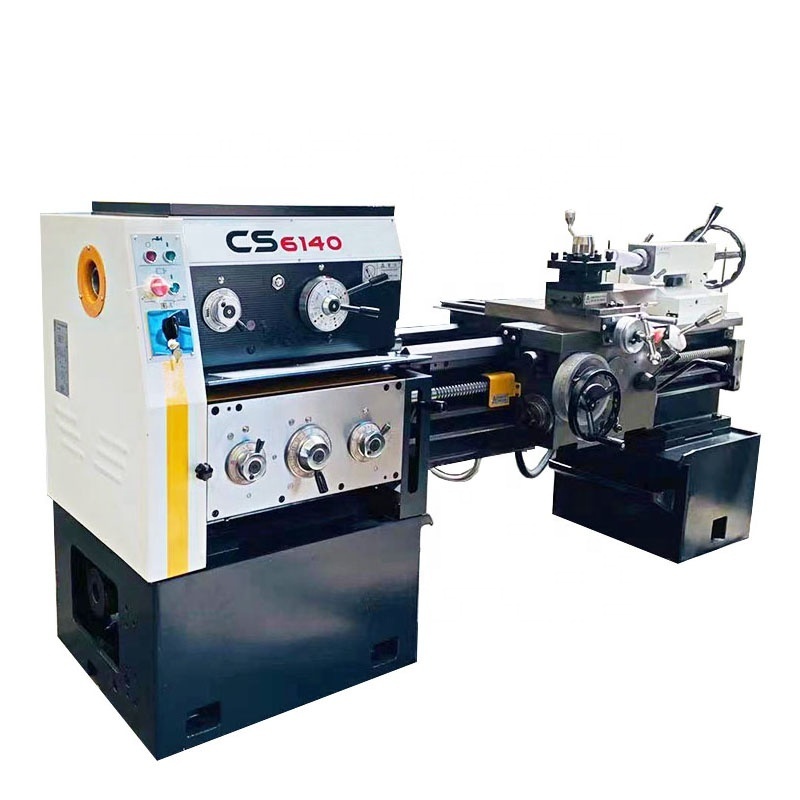

Horizontal Lathe
1.The high torsional water plane bed is carefully made of high-quality cast iron, and the guide rail surface is subject to medium
frequency induction quenching and precision treatment;
2.The guide rail pair composed of polytetrafluoroethylene guide rail soft belt has good wear resistance, vibration absorption and precision retention;
3.The spindle adopts three support structure, with good
rigidity, high precision and strong cutting;
4.Wide speed regulation range and reasonable speed can be selected;
5.It can directly turn metric and inch threads;
6.Saddle lathe can not only complete conventional turning work, but also turn all kinds of flat and special-shaped parts;
7.There are more complete special parts for users to choose.
Product Paramenters
|
SPECIFICATIONS
|
MODEL
|
|
|
|
||||
|
ITEMS
|
CS6240/3000
|
|
|
|
||||
|
CAPACITY
|
|
|
|
|
||||
|
Swing dia. over bed
|
φ400mm
|
|
|
|
||||
|
Swing dia. over cross slide
|
φ200mm
|
|
|
|
||||
|
* Max. swing dia. over gap
|
φ630mm
|
|
|
|
||||
|
* Effective length in gap
|
240mm ( Gap-bed Lathe )
|
|
|
|
||||
|
Max. workpiece length
|
3000mm
|
|
|
|
||||
|
Max. turning length
|
2950mm
|
|
|
|
||||
|
Guideway width
|
390mm
|
|
|
|
||||
|
HEADSTOCK
|
|
|
|
|
||||
|
Spindle nose
|
ISO702/III No.6 Bayonet lock;
|
|
|
|
||||
|
Spindle through hole dia.
|
φ52mm;
|
|
|
|
||||
|
Taper of spindle bore
|
Morse taper No. 6;
|
|
|
|
||||
|
Spindle speeds
|
9-1600rpm, 24steps;
|
|
|
|
||||
|
FEEDS AND THREADS
|
|
|
|
|
||||
|
Max. travel of compound rest
|
145mm
|
|
|
|
||||
|
Max. travel of cross slide
|
320mm
|
|
|
|
||||
|
Z-axis leadscrew pitch
|
12mm or 2TPI
|
|
|
|
||||
|
Section of tool
|
25x25mm(1x1")
|
|
|
|
||||
|
X-axis feedrate
|
1.9m/Min, 50Hz; 2.3m/Min, 60Hz
|
|
|
|
||||
|
Z-axis feedrate
|
4.5m/Min, 50Hz; 5.4m/Min, 60Hz
|
|
|
|
||||
|
X-axis feeds
|
0.012-2.73mm/rev, 93kinds;
|
|
|
|
||||
|
Z-axis feeds
|
0.028-6.43mm/rev, 93kinds;
|
|
|
|
||||
|
Metric threads
|
0.5 - 224 mm, 48 kinds;
|
|
|
|
||||
|
Inch threads
|
72 - 1/8 TPI, 46 kinds;
|
|
|
|
||||
|
Module threads
|
0.5 - 112 π mm, 42 kinds;
|
|
|
|
||||
|
Diametric pitch threads
|
56 - 1/4 DP, 45 kinds;
|
|
|
|
||||
|
TAILSTOCK
|
|
|
|
|
||||
|
Dia. of tailstock sleeve
|
φ75mm
|
|
|
|
||||
|
Taper of tailstock sleeve
|
Morse taper No.5
|
|
|
|
||||
|
Travel of tailstock sleeve
|
150mm
|
|
|
|
||||
|
Cross adjustment
|
±15mm
|
|
|
|
||||
|
MOTOR
|
|
|
|
|
||||
|
Main motor
|
7.5KW (10HP)
|
|
|
|
||||
|
Rapid traverse motor
|
300-370W (1/2HP)
|
|
|
|
||||
|
Coolant pump motor
|
120W (1/6HP)
|
|
|
|
||||
|
Available voltage / cycle
|
220V, 380V, 400V, 420V, 440V, 575V, 600V / 50Hz or 60Hz / 3Ph
|
|
|
|
||||
|
DIMENSION AND WEIGHT
|
|
|
|
|
||||
|
Overall dimension (LxWxH)
|
463 * 100 * 123 cm
|
|
|
|
||||
|
Packing size (LxWxH)
|
480 * 115 * 190cm
|
|
|
|
||||
|
Net weight
|
2850 kg
|
|
|
|
||||
|
Gross weight
|
3400 kg
|
|
|
|
||||
|
* Marked as CS624 series proprietary parameter
|
|
|
|
|
||||
|
ITEMS
|
||||||
|
Swing dia. over bed
|
φ400mm
|
φ400mm
|
φ400mm
|
|||
|
Swing dia. over cross slide
|
φ200mm
|
φ200mm
|
φ200mm
|
|||
|
* Max. swing dia. over gap
|
φ630mm
|
φ630mm
|
φ630mm
|
|||
|
* Effective length in gap
|
240mm ( Gap-bed Lathe )
|
|
|
|||
|
Max. workpiece length
|
1000mm
|
1500
|
2000
|
|||
|
Max. turning length
|
950mm
|
1450
|
1950
|
|||
|
Guideway width
|
390mm
|
390mm
|
390mm
|
|||
|
HEADSTOCK
|
|
|
|
|||
|
Spindle nose
|
ISO702/III No.6 Bayonet lock
|
|
|
|||
|
Spindle through hole dia.
|
φ52mm
|
|
|
|||
|
Taper of spindle bore
|
Morse taper No. 6
|
|
|
|||
|
Spindle speeds
|
9-1600rpm, 24steps
|
|
|
|||
|
FEEDS AND THREADS
|
|
|
|
|||
|
Max. travel of compound rest
|
145mm
|
|
|
|||
|
Max. travel of cross slide
|
320mm
|
|
|
|||
|
Z-axis leadscrew pitch
|
12mm or 2TPI
|
|
|
|||
|
Section of tool
|
25x25mm(1x1")
|
|
|
|||
|
X-axis feedrate
|
1.9m/Min, 50Hz; 2.3m/Min, 60Hz
|
|
|
|||
|
Z-axis feedrate
|
4.5m/Min, 50Hz; 5.4m/Min, 60Hz
|
|
|
|||
|
X-axis feeds
|
0.012-2.73mm/rev, 93kinds;
|
|
|
|||
|
Z-axis feeds
|
0.028-6.43mm/rev, 93kinds;
|
|
|
|||
|
Metric threads
|
0.5 - 224 mm, 48 kinds;
|
|
|
|||
|
Inch threads
|
72 - 1/8 TPI, 46 kinds;
|
|
|
|||
|
Module threads
|
0.5 - 112 π mm, 42 kinds;
|
|
|
|||
|
Diametric pitch threads
|
56 - 1/4 DP, 45 kinds;
|
|
|
|||
|
TAILSTOCK
|
|
|
|
|||
|
Dia. of tailstock sleeve
|
φ75mm
|
|
|
|||
|
Taper of tailstock sleeve
|
Morse taper No.5
|
|
|
|||
|
Travel of tailstock sleeve
|
150mm
|
|
|
|||
|
Cross adjustment
|
±15mm
|
|
|
|||
|
MOTOR
|
|
|
|
|||
|
Main motor
|
7.5KW (10HP)
|
|
|
|||
|
Rapid traverse motor
|
300-370W (1/2HP)
|
|
|
|||
|
Coolant pump motor
|
120W (1/6HP)
|
|
|
|||
|
Available voltage / cycle
|
220V, 380V, 400V, 420V, 440V, 575V, 600V / 50Hz or 60Hz / 3Ph
|
|
|
|||
|
DIMENSION AND WEIGHT
|
|
|
|
|||
|
Overall dimension (LxWxH)
|
263*100*123 cm
|
313 * 100 *123 cm
|
363 * 100 *123 cm
|
|||
|
Packing size (LxWxH)
|
280*115*190 cm
|
330 * 115 * 190cm
|
380 * 115 * 190cm
|
|||
|
Net weight
|
2050
|
2250
|
2450
|
|||
|
Gross weight
|
2400
|
2600
|
2900
|
|||
|
* Marked as CS624 series proprietary parameter
|
|
|
|
|||
Tool Box
Tailstock bodywith bearing
Chip Tray
Chute Box
Knife Holder
Fast Moving Mechanism
