Quick Details
-
Range of Spindle Speed(r.p.m):
-
80 - 1600 r.p.m
-
Max. Turned Length (mm):
-
500 mm
-
Spindle Motor Power(kW):
-
2.2
-
Year:
-
New
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMTCNC
-
Model Number:
-
CJM250
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1160x640x580mm without stand
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
New Product 2022
-
Product Name:
-

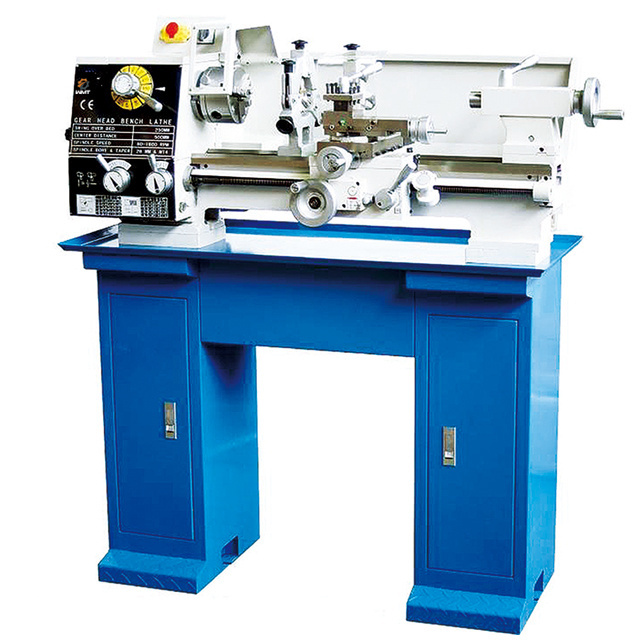

Mini Manual Lathe CJM250
-
Automatic Grade:
-
Manual
-
Spindle Bore:
-
26mm
-
Spindle Taper:
-
MT4
-
Distance between Centers:
-
500mm
-
Swing over Bed:
-
250mm
-
Power:
-
750w
-
Weight:
-
200kgs
-
Certification:
-
CE
-
After-sales Service Provided:
-
Online support
Quick Details
-
Max. Length of Workpiece (mm):
-
500 mm
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
26
-
Range of Spindle Speed(r.p.m):
-
80 - 1600 r.p.m
-
Max. Turned Length (mm):
-
500 mm
-
Spindle Motor Power(kW):
-
2.2
-
Year:
-
New
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMTCNC
-
Model Number:
-
CJM250
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1160x640x580mm without stand
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
New Product 2022
-
Product Name:
-
Mini Manual Lathe CJM250
-
Automatic Grade:
-
Manual
-
Spindle Bore:
-
26mm
-
Spindle Taper:
-
MT4
-
Distance between Centers:
-
500mm
-
Swing over Bed:
-
250mm
-
Power:
-
750w
-
Weight:
-
200kgs
-
Certification:
-
CE
-
After-sales Service Provided:
-
Online support
Mini Manual Lathe Main Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 80-1600rpm.
6. Easy operating gear box has various feeds and thread cutting function.
7. With or without cabinet according to requirement.
|
Specifications
|
CJM250
|
|
Max. swing over the bed
|
250mm
|
|
Max. length of work piece
|
500mm
|
|
Max. swing over cross slide
|
150mm
|
|
Max. cross slide travel
|
130mm
|
|
Max. longitudinal stroke over tool post:
|
60mm
|
|
Spindle bore
|
26mm
|
|
Spindle taper
|
MT4
|
|
Spindle speeds range
|
12 steps: 80-1600r/min
|
|
Metric thread kinds
|
9
|
|
Metric pitches
|
0.25-2.5mm
|
|
Inch threads kinds
|
15
|
|
Inch pitches
|
12-96TPI
|
|
Longitudinal-feed range
|
0.025-0.250mm/r
|
|
Cross-feedrange
|
0.0125-0.125mm/r
|
|
Max. travel of tailstock taper
|
60mm
|
|
Tailstock sleeve taper:
|
MT3
|
|
Motor
|
750W
|
|
Net weight (without base)
|
180/200kg
|
|
Packing size (without stands): (L×W×H)
|
1160*640*580mm
|
Standard accessores:
3-jaw chuck(125mm)
V-Belt
Dead center
Splash guard
Toolbox and tools
