Quick Details
-
Printing speed:
-
0-8000mm/Min
-
PCB thickness:
-
0-100mm
-
Power supply:
-
1P AC220V, 50/60HZ
-
Platfrom height:
-
880mm
-
Repeatability:
-
(+/-0.01mm)
-
Table fine-tuning:
-
Front/back±10mm Right/Left±10mm
-
Printing accuracy:
-
±0.05mm
-
Machine repeatability:
-
±0.02mm
-
Use air pressure:
-
4-7kg/cm2
-
Positioning mode:
-
Outside/Reference hole
Quick Details
-
Weight (KG):
-
270
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CENSTAR
-
Printing speed:
-
0-8000mm/Min
-
PCB thickness:
-
0-100mm
-
Power supply:
-
1P AC220V, 50/60HZ
-
Platfrom height:
-
880mm
-
Repeatability:
-
(+/-0.01mm)
-
Table fine-tuning:
-
Front/back±10mm Right/Left±10mm
-
Printing accuracy:
-
±0.05mm
-
Machine repeatability:
-
±0.02mm
-
Use air pressure:
-
4-7kg/cm2
-
Positioning mode:
-
Outside/Reference hole
Product Description
Description

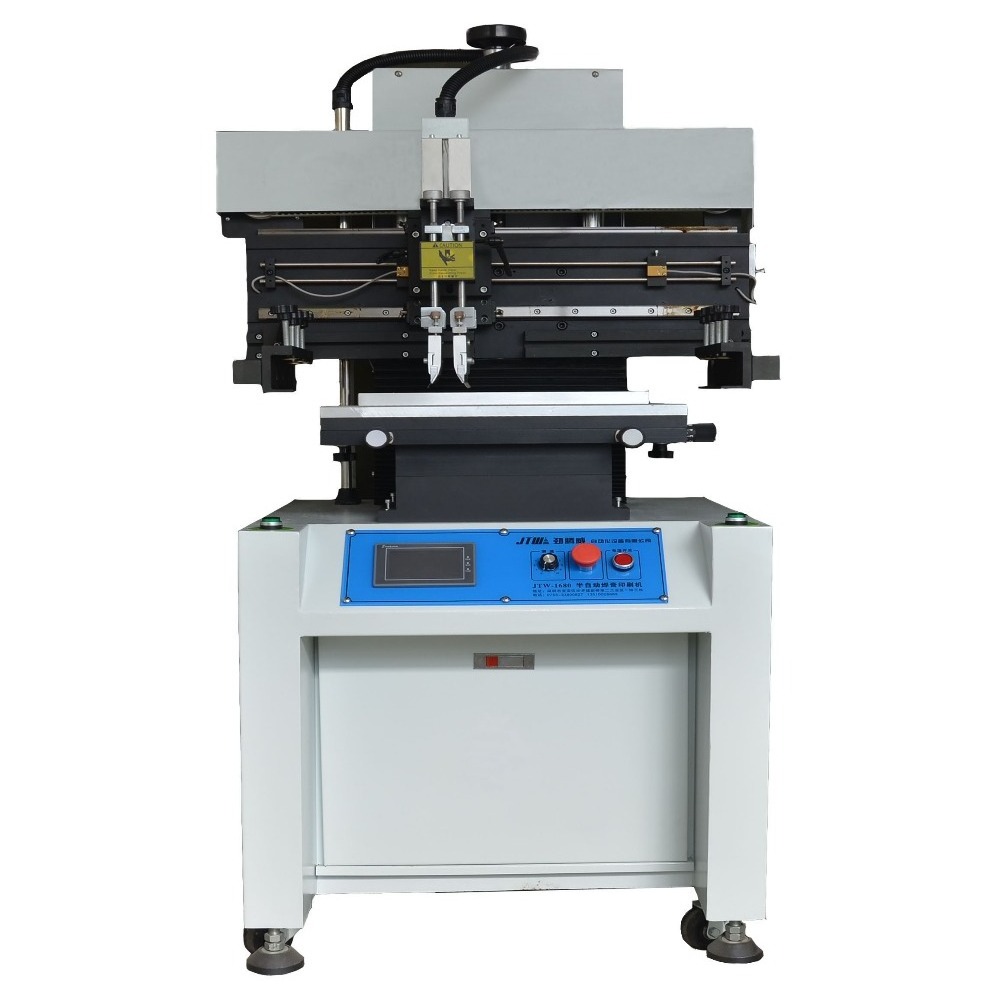

This equipment is used for the solder paste and red glue printing of PCB boards in the SMT production line hindrance
Features
1.Applies to Korean guide rail,printing precise is up to 0.2mm IC.
2.PLC + touch screen display, more stable and easy to operate.
3.Magnetic thimb + honeycomb board , more suitable for the double sides PCB and easier to find the empty space of the PCB.
4.Scrape angle ,pressure,trave length can be adjust,flexible.
5.The printing plate can be fine tuning X.Y axis,higher precise.
6.Automatic counting function, easy to statistics and arrange production.
7.Automatic alarm of cleaning the stencil , convenient for cleaning stencil in time and ensure the printing quality.
8.Suitable for long LED PCB , such as 600mm/1200mm/1500mm length PCB(make to order)
|
Technical Parameters
|
|
|
|
|||
|
Model
|
OB-P618
|
OB-P618A
|
OB-618E
|
|||
|
Dimension
|
850*670*1550mm
|
1005*670*1550mm
|
1650*670*1550mm
|
|||
|
Platform size
|
320*400mm
|
320*600mm
|
320*1300mm
|
|||
|
PCB size
|
300*400mm
|
300*550mm
|
300*1250mm
|
|||
|
Stencil size
|
550*680mm
|
550*835mm
|
550*1480mm
|
|||
|
Printing speed
|
0-8000mm/Min
|
|
|
|||
|
PCB thickness
|
0-100mm
|
|
|
|||
|
Power supply
|
1P AC220V, 50/60HZ
|
|
|
|||
|
Platfrom height
|
880mm
|
|
|
|||
|
Repeatability
|
(+/-0.01mm)
|
|
|
|||
|
Table fine-tuning
|
Front/back±10mm
Right/Left±10mm
|
|
|
|||
|
Printing accuracy
|
±0.05mm
|
|
|
|||
|
Machine repeatability
|
±0.02mm
|
|
|
|||
|
Use air pressure
|
4-7kg/cm2
|
|
|
|||
|
Positioning mode
|
Outside/Reference hole
|
|
|
|||
|
Weight
|
270kg
|
290kg
|
380kg
|
|||
Related Product
Machine can be customized according to your pcb size.Such as length, width, with cooling fan, with touch screen, Auto width adjustment...
Packing & Delivery
Packing & Delivery
Packing Details ：Plywood case, for export!
Port:：Shenzhen
Delivery Details :：10-15days
Our Company
Company
Shenzhen Censtar Technology Co., Ltd.Expert in making customized high quality PCB inspection Conveyor，PCB Loader，PCB Unloader，PCB Buffer，Wave Solder Infeed ，Wave Solder Outfeed，PCB Surface Cleaning Machine，PCB Transform Track Conveyor with more than 10 years experience! We help many customers to set up factories in led, tv, mobile phone, dvb, ems and other industries all over the world.
Production workshop
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
Successful Experience
1. Censtar's customer in 37 countries around the world
2. We have been helping customers to build a lot of new factories around the world.
3. Training more than 450 experts and technician for customers.
4. Became the most reliable Chinese partner for you.
Honor Customers
Our Certifications
FAQ
Q: What can we do for you?
A:
We can provide PCB inspection Comveyor，PCB Loader，PCB Unloader，PCB Buffer，Wave Solder Infeed ，Wave Solder Outfeed，PCB Surface Cleaning Machine，PCB Transform Track Conveyor , etc. Professional technical support and service.
Q:When is your delivery date?
A: The delivery date is about 5-7 working days after receipt of payment.
Q: What are your payment terms?
A: TT 100% advance payment.
Q: Is this machine easy to use? If I have no experience, can I operate it well?
A: Yes, our machine is easy to use. Usually you need 1 day to learn how to operate. If you are a technician, learning will be faster.
Q: Do you provide user manuals and operating videos to support us?
A: We will provide English user manual for free, and provide operation video. Our software is all in English.
Q: If we come to your factory, will you provide free training?
A: Yes, you are warmly welcome to visit our factory and we will arrange free training for you. Q: When we encounter problems during operation,
Q：what services can you provide?
A: We can invite our engineers to your company for guidance, but you are responsible for the air
tickets and accommodation, and we can also provide remote guidance
tickets and accommodation, and we can also provide remote guidance
Q: What is the payment method?
A: We accept payment methods: T/T, WesterUnion.
