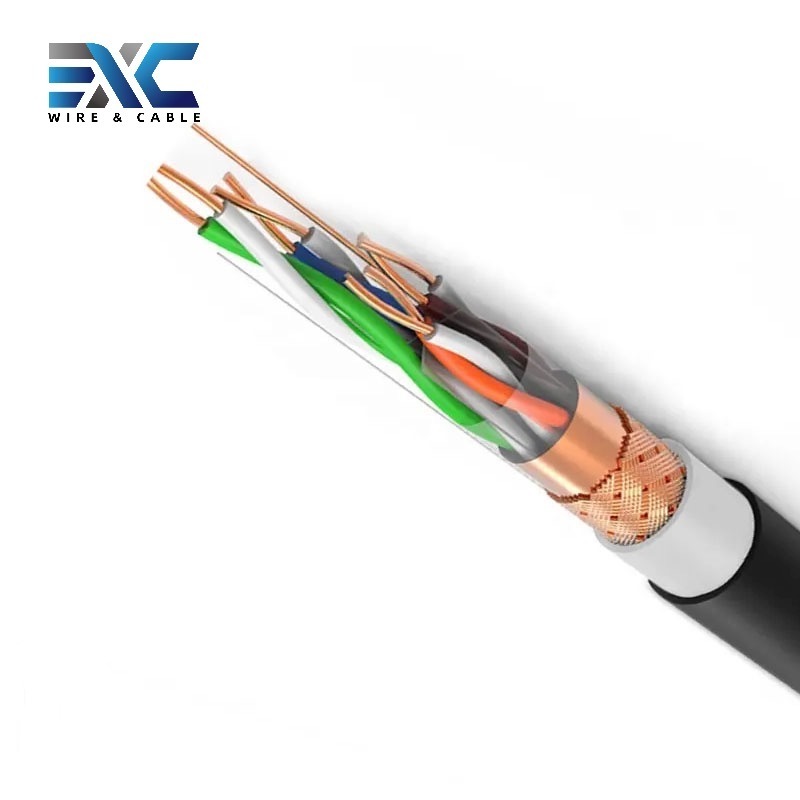

Good quality waterproof Direct buried 10gbps sftp cat6 lan cable outdoor 1000ft

Good quality waterproof Direct buried 10gbps sftp cat6 lan cable outdoor 1000ft

FOB Reference Price: Get Latest Price

≥1 Rolls

US $0.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand name:: EXC (Welcome OEM)

AWG (Gauge):: 23AWG or According to your request

Conductor Material:: CCA/CCAM/CU

Shiled:: SFTP

Color:: Different color is available

Certification:: CE/ROHS/ISO9001

Application:: PC,ADSL,Network Module Plate,Wall Socket,etc

Package:: 1000ft 305m per roll,other lengths is OK.

Marking On Jacket:: Optional (Print your brand)

Operating Temperature:: -20 °C - +75 °C

Quick Details

Brand Name:: EXC

Model Number:: EXC-SFTP Cat6

Type:: Cat6

Place of Origin:: Guangdong, China

Brand name:: EXC (Welcome OEM)

AWG (Gauge):: 23AWG or According to your request

Conductor Material:: CCA/CCAM/CU

Shiled:: SFTP

Color:: Different color is available

Certification:: CE/ROHS/ISO9001

Application:: PC,ADSL,Network Module Plate,Wall Socket,etc

Package:: 1000ft 305m per roll,other lengths is OK.

Marking On Jacket:: Optional (Print your brand)

Operating Temperature:: -20 °C - +75 °C

Welcome EXC Industry (shenzhen) Co., Ltd.

Our Services(17 years experience in the production and processing of ethernet cables)
1.Supply the lan cable packing in accordance with your requirement.
2.Professional design team and QC team ensure quick OEM cable order.
3.High quality and best price promise profitable products and long relationship.
4.We have CE& ROHS compliant.
5. Provide free samples, quality refunds.
6.Customized designs are accepted, small order are accepted.

Products Description

Type	Cat6 Ethernet Cable
Brand name	EXC (Welcome OEM)
AWG (Gauge)	23AWG or According to your request
Conductor Material	CCA/CCAM/CU
Shiled	SFTP
Jacket Material	1. PVC Jacket for Cat6 indoor cable 2. PE Single jacket for Cat6 outdoor cable 3. PVC + PE double jacket Cat6 outdoor cable
Color	Different color is available
Operating Temperature	-20 °C - +75 °C
Certification	CE/ROHS/ISO9001
Fire Rating	CMP, CMR, CM, CMG, CMX
Application	PC,ADSL,Network Module Plate,Wall Socket,etc
Package	1000ft 305m per roll，other lengths is OK.
Marking On Jacket	Optional (Print your brand)

Electrical Specifications

1.Characteristic Impedance:100±15Ω(1-550MHz)
2.Nominal Velocity of Propagation(NVP):CMX,CM,CMR,LSZH 69%,CMP 72%
3.Maximum Mutual Capacitance:5.6nF/100m
4.Maximum Capacitance Unbalance:330pF/100m
5.Maximum DC Resistance:7.5Ω/100m
6.Maximum Resistance Unbalance:3%
7.Maximum Propagation Delay Skew:30ns/100m
8.Maximum Propagation Delay:536ns/100m@100MHz
9.Minimum Bending radius: 10×Overall Diameter
10.Voltage Rating:80V rms
11.Maximum Pulling Load: 80N
12.Flame Retardant: IEC 60332-1(FRPVC&LSZH Jacket); IEC 60332-1; IEC 60332-3C(LSFROH Jacket)

Frequency MHz	RL ≥dB	Attenuation ≤dB/100m	NEXT ≥dB/100m	PHASE DELAY≤ ns	ELFEXT ≥dB/100m	PS NEXT ≥dB/100m	PS ELFEXT ≥dB/100m
1	20.0	2.03	74.3	570	67.8	72.3	64.8
4	23.0	3.78	65.3	552	55.7	63.3	52.8
8	24.5	5.32	60.8	546.73	49.7	58.8	46.7
10	25.0	5.95	59.3	545.38	47.8	57.3	44.8
16	25.0	7.55	56.2	543	43.8	54.2	40.7
20	25.0	8.47	54.8	542.05	41.8	52.8	38.8
25	24.3	9.51	53.3	541.2	39.8	51.3	36.8
31.25	23.6	10.67	51.9	540.44	37.9	49.9	34.9
62.5	21.5	15.38	47.7	538.55	31.8	45.4	28.8
100	20.1	19.8	44.3	537.6	27.8	42.3	24.8
200	18.0	28.98	39.8	536.54	21.8	37.8	18.8
250	17.3	32.85	38.3	536.27	19.8	36.3	16.8
