Quick Details
-
Size:
-
C/C 500mm
-
Product name:
-
Retractable seating
-
Material:
-
HDPE plastic seat & retractable steel base
-
Application:
-
Sports Center
-
Function:
-
indoor stadium seats
-
Payment:
-
T/T:30% Deposite
-
Feature:
-
Anti-UV Fire-proof
-
Certificate:
-
CE, ISO9001
-
Delivery:
-
45 Days
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STUNITY
-
Model Number:
-
STRSTERRIGAL
-
Size:
-
C/C 500mm
-
Product name:
-
Retractable seating
-
Material:
-
HDPE plastic seat & retractable steel base
-
Application:
-
Sports Center
-
Function:
-
indoor stadium seats
-
Payment:
-
T/T:30% Deposite
-
Feature:
-
Anti-UV Fire-proof
-
Certificate:
-
CE, ISO9001
-
Delivery:
-
45 Days
Stunity ® high school gym bleachers
O ur high school gym bleachers are widely recognized and trusted by users and can meet continuously changing economic and social needs.
! Attention : We only posted a part of our products on Alibaba web. Pls, contact us to show you more amazing products.
The specification of the high school gym bleachers
| Model | Name | Application | Description | Dimension (CM) |
|
STRSTERRIGAL |
high school gym bleachers | Indoor stadium/ sports centers/ auditorium/ lecture hall/ church |
Material: * PP plastic chair or HDPE plastic chair, Padded chair * Compatible chairs items: Terrigal Terrigalplus Tumbi Tacoma * Retractable steel metal structure * Metal type: Q235 and Q345
|
Customized size as per dimension of the venue
|
* The dimensions of the high school gym bleachers are measured in the unit of "centimeter" (cm)
| Test Report No. | Organization | Type | Date & Time | Test Performed | Test requested |
| AJD201205462 | SGS | Stadium seating | 2013 | SELECTED TEST(S) AS REQUESTED BY APPLICANT | EN 12727:2000 FURNITURE-RANKED SEATING -TEST METHODS AND REQUIREMENTS FOR STRENGTH AND DURABILITY (FOR SEVERE USE) |
| Test Item | Test Method | Test Principles & Requirements | Test result |
| Seat and Back Static Load Test |
DIN EN 12727:2000
Clause 6.3 |
There shall be no fracture on the sample when applying load of 2000N at seat and applying back load of 760N at back for 10 times, maintaining the load for 10 seconds each cycle. | PASS |
|
Horizontal Forward Static
Load to Back |
DIN EN 12727:2000
Clause 6.4 |
There shall be no fracture on the sample when applying a horizontal forward static load of 760N at back for 10 times,
maintaining the load for 10 seconds each cycle. |
PASS |
| Vertical Static Test on Back |
DIN EN 12727:2000
Clause 6.5 |
There shall be no fracture on the sample when applying downwards force of 900N to the top of the back for 10 times, maintaining the load for 10 seconds each cycle. | PASS |
| Arm Downwards Static Load Test |
DIN EN 12727:2000
Clause 6.7 |
There shall be no fracture on the sample when applying downwards vertical force of 1000N to the arm for 10 times,
maintaining the load for 10 seconds each cycle. |
PASS |
| Combined Seat and Back Durability Test |
DIN EN 12727:2000
Clause 6.8 |
There shall be no fracture on the sample when applying load of 950N at seat and applying load of 330N at back for 200000 cycles. | PASS |
| Seat Front Edge Durability Test |
DIN EN 12727:2000
Clause 6.9 |
There shall be no fracture on the sample when applyingertical load of 950N alternately on two points each 80 mm from the front edge and side of the seat with number of 200000cycles. | PASS |
| Seat Impact Test |
DIN EN 12727:2000
Clause 6.11 |
There shall be no fracture on the sample when an impactor falls freely from the height of 300 mm onto seat for 10 times. | PASS |
STUNITY® KINDLY REMINDER ALL OUR CERTIFICATIONS ARE REAL ONE. NOT FAKE, NOT FAKE, NOT FAKE!!! PLEASE CONTACT US TO SHOW YOU!!

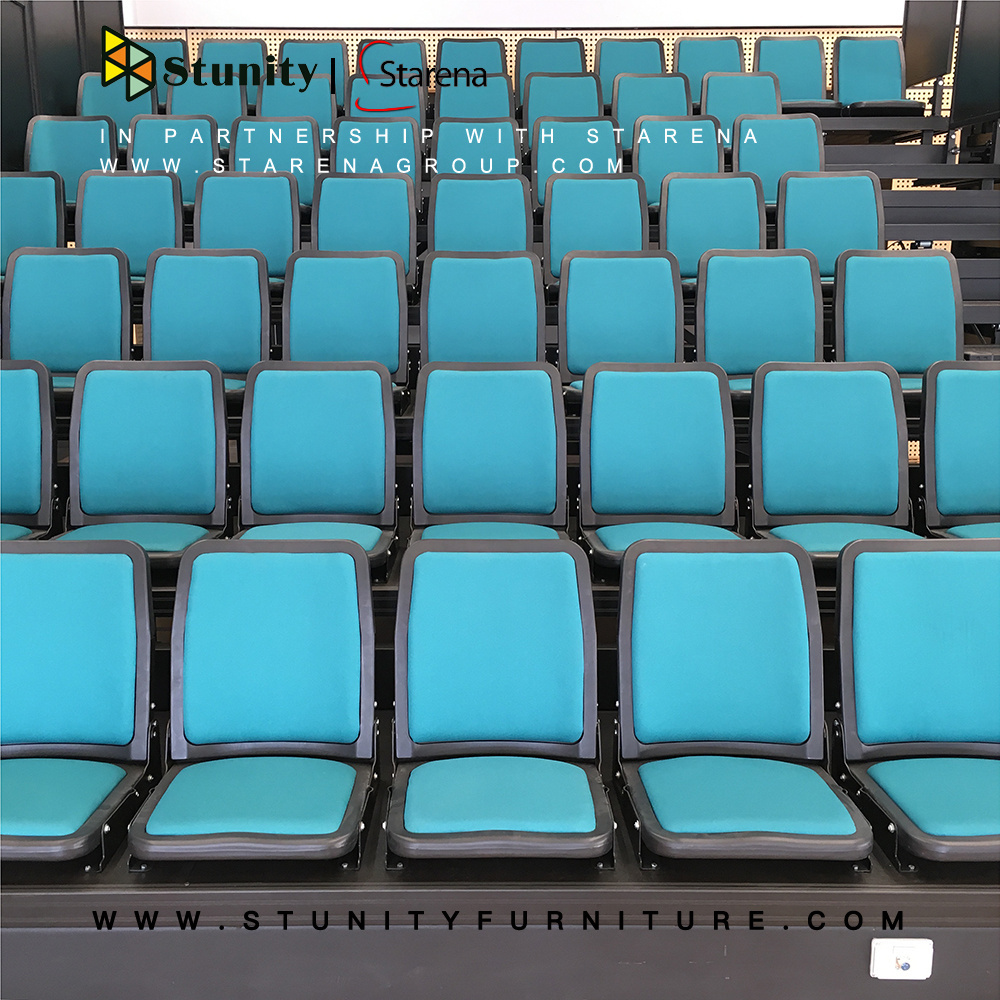

C ase A in 2017
Our fantastic high school gym bleachers and retractable stands are used in Carrara indoor stadium, Gold coast sports and leisure center, Australia in 2017. This project has Stunity® working in partnership with Starena.
C ase B in 2017
Our fantastic high school gym bleachers are used for in Waverley Christian College, Melbourne, Australia in 2017. This Project has Stunity® working in partnership with Starena.
C ase C in 2017
Our fantastic high school gym bleachers and retractable stands are used in Montevideo, Uruguay in 2017.
C ase D in 2017
Our fantastic high school gym bleachers and retractable stands are used in Shellharbour Anglican College, New South Wales, Australia in 2017.
Blowing plastic product Operation
A. Preparing HDPE
B. Filling HDPE
C . Blowing
D. Finish product
E. Stamping line
F. Welding line
G . Powder coating line
H. Packing
I. Shipping
I nner Packing
of our high school gym bleachers.
O uter Packing
of our high school gym bleachers.
W arehouse
for stocking the high school gym bleachers package. And then waiting for loading.
L oading & shipping
for our high school gym bleachers order.
