Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YiLaide
-
Dimension(L*W*H):
-
510*390*260MM
-
Weight (KG):
-
20 KG
-
Air Conditioning Units Carrier:
-
Industry
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling Capacity:
-
2.7-1.8KW
-
Heating Capacity:
-
4.2KW
-
DB/WB:
-
27℃ / 19.5℃
-
Water in/out:
-
7℃ / 12℃
-
Motor:
-
DC brushless motor
-
Application:
-
Indoor Unit
-
Noise:
-
Low Noise
Quick Details
-
Type:
-
FAN COIL UNIT
-
Mounting:
-
CELLING MOUNT
-
Airflow:
-
510m3/h, 200-1700 CFM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YiLaide
-
Dimension(L*W*H):
-
510*390*260MM
-
Weight (KG):
-
20 KG
-
Air Conditioning Units Carrier:
-
Industry
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling Capacity:
-
2.7-1.8KW
-
Heating Capacity:
-
4.2KW
-
DB/WB:
-
27℃ / 19.5℃
-
Water in/out:
-
7℃ / 12℃
-
Motor:
-
DC brushless motor
-
Application:
-
Indoor Unit
-
Noise:
-
Low Noise
Product Overview

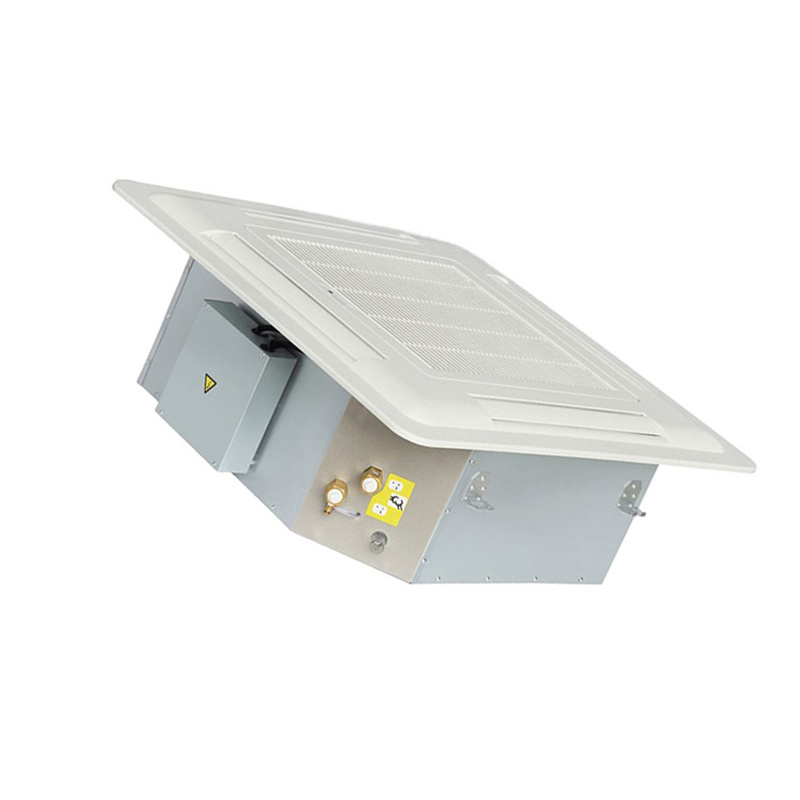

Specifications 2-pipe 4-way Cassett A series
Controal system
> Wireless remote controller is standard; Wired wall controller is optional;
> Auto reset, operation mode control; with room sensor & coil sensor;
> Dailytimerorweeklytimer
> Auto-diagnose, protections and error code display; jumpers configurations on electronic board
> RS485 ModBus, master-slave network control-Optional
Suitable for hot/chilled water system, ceiling installation;
Design features
1 Unit Body
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation.
2 Panel Assembly
Aesthetic panel design, in ABS material with synthetic washable and removal air filter, auto-swing.
3 Plastic Wheel-Quite running
One-time injection forming, no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less vibration, low noise on the wheels and motors. Each wheel will be balanced under G0.5mm/s.
4 Fresh air intake
Fresh air intake is optional.
5 High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 3obar(3Mpa) air pressure. with 3/4” pipe connections and air bleed vent.
6 Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a condensates draining pump and a safety float.
7 Drain pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor.
PRODUCT SPECIFICATIONS
Dimensions
Specifications 2-pipe 4-way Cassett A series
|
Specifications 2-pipe 4-way Cassett A series
|
|
|
|
|
|
|
||||||
|
Model:M4KM*AP-A(E)
|
|
|
|
M4KM
200AP |
M4KM
300AP |
M4KM
450AP |
||||||
|
CFM
|
|
|
|
240
|
300
|
500
|
||||||
|
Air Flow Rate
|
|
H
|
m3/h
|
340
|
510
|
800
|
||||||
|
|
|
M
|
m3/h
|
280
|
390
|
580
|
||||||
|
|
|
L
|
m3/h
|
180
|
260
|
390
|
||||||
|
Cooling
|
Total Capacity
|
H
|
KW
|
2
|
2.3
|
4.5
|
||||||
|
|
|
M
|
KW
|
1.8
|
2.3
|
3.8
|
||||||
|
|
|
L
|
KW
|
1.6
|
1.8
|
2.8
|
||||||
|
|
Sensible Capacity
|
H
|
KW
|
1.5
|
1.9
|
2.9
|
||||||
|
|
|
M
|
KW
|
1.3
|
1.7
|
2.9
|
||||||
|
|
|
L
|
KW
|
1.2
|
1.4
|
1.9
|
||||||
|
|
Water Flow Rate
|
|
L/H
|
345
|
470
|
720
|
||||||
|
|
Water Pressure Drop
|
|
kPa
|
7
|
9
|
14
|
||||||
|
Heating
|
Heating Capacity
|
H
|
KW
|
2.8
|
4.2
|
6.3
|
||||||
|
|
Heating Capacity
|
M
|
KW
|
2.5
|
3.4
|
5.5
|
||||||
|
|
Heating Capacity
|
L
|
KW
|
2
|
2.7
|
4.5
|
||||||
|
Power Supply
|
|
|
|
220~240V/1PH/50Hz(or 60HZ)
|
|
|
||||||
|
Power Input
|
|
|
W
|
39
|
52
|
68
|
||||||
|
Sound Pressure
|
|
|
dB(A)
|
37
|
39
|
42
|
||||||
|
Fan
|
Type
|
|
|
Centrifugal Fan
|
|
|
||||||
|
|
Model
|
|
MM
|
315
|
315
|
315
|
||||||
|
|
Quantity
|
|
|
1
|
|
|
||||||
|
Motor
|
Type
|
|
|
3-speed Motor
|
|
|
||||||
|
|
Quantity
|
|
|
1
|
|
|
||||||
|
Coil
|
Coil Rows
|
|
|
2
|
|
|
||||||
|
|
Max. Working Pressure
|
|
mPa
|
1.6
|
|
|
||||||
|
|
Tube Diameter
|
|
Inch
|
3/8”
|
|
|
||||||
|
Dimensions
|
Unit Body
|
|
MM
|
580x580x250
|
|
|
||||||
|
|
Panel Assembly
|
|
MM
|
680x680x30
|
|
|
||||||
|
Connection
|
Water Inlet/Outlet Pipe
|
|
Inch
|
ZG3/4”/ZG3/4”
|
|
|
||||||
|
|
Condensate Discharge
|
|
Inch
|
26
|
|
|
||||||
|
Weight(with feet, with casing)
|
|
|
KG
|
20
|
|
|
||||||
|
1.Cooling: inlet air temp. DB+27oC/WB+19.5oC, water inlet/outlet temp. +7oC/+12oC
2.Heating: +21oC, water inlet temp. +60oC; Same water flow rate as for the cooling |
|
|
|
|
|
|
||||||
