Quick Details
-
Model Number:
-
LD040D-VA34012-M30
-
Output Frequency:
-
50-60HZ
-
Product Name:
-
Dimmable Led Driver
-
Type:
-
Constant Voltage
-
Dimming mode:
-
Traic Dimmable
-
Application:
-
Led Strip
-
IP Rate:
-
IP65
-
Power Factor:
-
0.5
-
Efficiency:
-
82%
-
Keyword:
-
LED Strip Driver
-
Case material:
-
Plastic Case
-
Certification:
-
UL FCC CE ROHS
Quick Details
-
Warranty(Year):
-
3-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ES
-
Model Number:
-
LD040D-VA34012-M30
-
Output Frequency:
-
50-60HZ
-
Product Name:
-
Dimmable Led Driver
-
Type:
-
Constant Voltage
-
Dimming mode:
-
Traic Dimmable
-
Application:
-
Led Strip
-
IP Rate:
-
IP65
-
Power Factor:
-
0.5
-
Efficiency:
-
82%
-
Keyword:
-
LED Strip Driver
-
Case material:
-
Plastic Case
-
Certification:
-
UL FCC CE ROHS
Products Description
Features:
Hot sale in stocks, Quick lead time
Input range from 108 to132 VAC
Constant Voltage design (C .V mode)
Flicker Free design
For forward phase, magnetic low voltage and triac dimmers.
Junction metal box available
3 years warranty.
UL LISTED UL CUL FCC CE certification
Fully Potted suitable for dry and damp location applications.
Protections : Over current / Short Circuit /Over Voltage/Over Temperature
|
Model No.
|
|
LD040D-VA34012-M30
|
LD040D-VA17024-M30
|
LD040D-VA34012-M30X
|
LD040D-VA17024-M30X
|
|||
|
Output
|
DC Voltage Range
|
12V
|
24V
|
12V
|
24V
|
|||
|
|
DC Current Max
|
0~3400mA
|
0~1700mA
|
0~3400mA
|
0~1700mA
|
|||
|
|
Rated Max. Power
|
40W
|
40W
|
40W
|
40W
|
|||
|
|
Dimming Range
|
5%-100%
|
5%-100%
|
5%-100%
|
5%-100%
|
|||
|
|
Voltage Tolerance
|
±5%
|
±5%
|
±5%
|
±5%
|
|||
|
|
Ripple & Noise (Max.) note.2
|
2.6 Vp-p
|
2.6 Vp-p
|
2.6 Vp-p
|
2.6 Vp-p
|
|||
|
|
Efficiency note.1 full load
|
>82%
|
>82%
|
>82%
|
>82%
|
|||
|
|
Set up Time (Max)
|
0.5S / 120Vac at full load
|
|
|
|
|||
|
Input
|
Rated Voltage
|
108 - 132VAC
|
|
|
|
|||
|
|
Frequency Range
|
50/60Hz
|
|
|
|
|||
|
|
AC Current (Max.)
|
0.66A at 120Vac
|
|
|
|
|||
|
|
Power Factor
|
> 0.5 at 120Vac with full load.
|
|
|
|
|||
|
|
Inrush Current (Max.)
|
≤ 30A at 120Vac
|
|
|
|
|||
|
|
Leakage Current
|
< 1mA / 120Vac
|
|
|
|
|||
|
Others
|
MTBF
|
100K hours min. @Ta=25℃
|
|
|
|
|||
|
|
Dimension (L*W*H)
|
107.5 * 43.5 * 32 mm (M30 only)
|
|
|
|
|||
|
|
|
303 * 62 * 39 mm (M30X only)
|
|
|
|
|||
|
|
Packing (L*W*H) / Carton
|
31.7 * 29 * 23.5 CM;100pcs/16.0kg (M30 only);
|
|
|
|
|||
|
|
|
34 * 36 * 20 CM; 15pcs/12.0kg (M30X only)
|
|
|
|
|||
The
M30 series
is one
UL 40
W AC-DC
Constant Voltage
mode single output LED driver
40 watts
with Triac dimmable. It accepts the input voltage
120V AC
and provides
2
models with different output voltage,
12V,24V,
that led applications employ the most frequently. Also exploiting Class 2 power supply design and adopting plastic case. The
IP65
waterproof level allows this series drivers to fit both indoor and outdoor LED light applications.

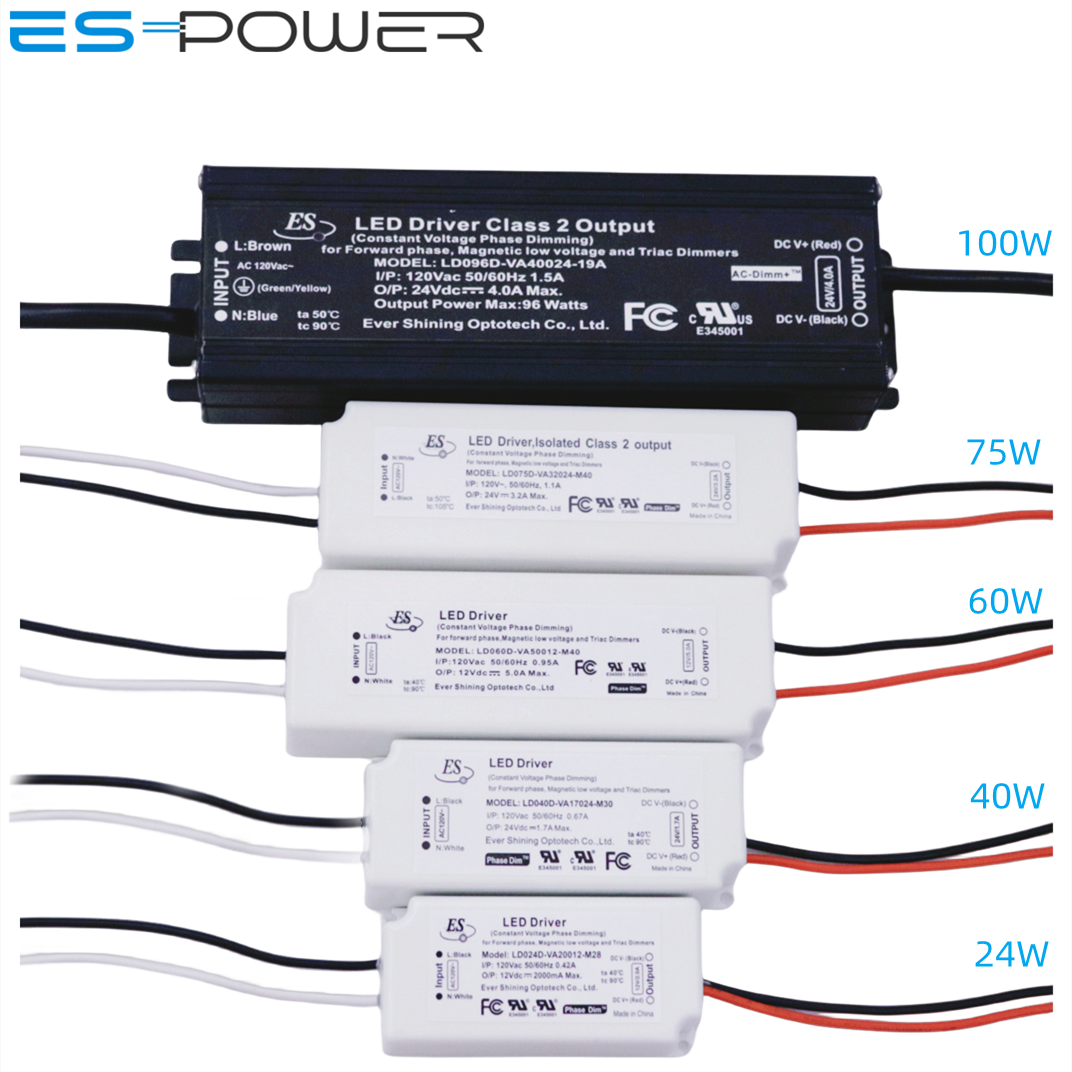

Meanwhile, we also providing
the constant voltage Triac dimming led drivers
from
24W,40W,60W,75W,96W,240W
to meet worldwide market demands. Please kindly look at below table.
If you have any question or inquiry,
Please directly conatct us!
To meet world wide market,
Ever Shining also manufacturing 230VAC version
，as below datas,
If you have any questions or new inquiry, please let us know, hope to work together with you soon!
Our Advantages
1.
ODM
and
OEM
service are available.
2. We supplying LED DRIVER power supply from
1W to 600W
, Both constant current and constant voltage mode, including Non Dimming and
TRIAC/ELV
Dimming led driver,
0/1-10V
Dimmable led drivers ,
DALI
Dimming led driver,etc.
3.
Quality Assurance
, Passed
UL CUL CE FCC TUV CCC KC CB SAA
Certification;
3
years-5 years warranty
;
4.On Time Delivery, 1 weeks For Samples; And 3-4 Weeks For Bulk Orders;
