Quick Details
-
Surface treatment:
-
Hot dip galvanized /plated
-
Material:
-
Mild steel Q235
-
Connection method:
-
Bolts and Nuts Included
-
Door opening method:
-
One Swing Rear Door
-
Overall dimensions (ft):
-
6x4x2
-
Dimension of Grid(mm):
-
50x75x3.6
-
Loaded in 1*40'HQ:
-
384 pcs
-
Application:
-
Fits most standard 6 x 4 metal box trailers
-
Packing:
-
4 mesh faces are individually Flat packaged
-
Feature:
-
Easy Installation
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ESWIRES
-
Model Number:
-
ES14-TC-01
-
Surface treatment:
-
Hot dip galvanized /plated
-
Material:
-
Mild steel Q235
-
Connection method:
-
Bolts and Nuts Included
-
Door opening method:
-
One Swing Rear Door
-
Overall dimensions (ft):
-
6x4x2
-
Dimension of Grid(mm):
-
50x75x3.6
-
Loaded in 1*40'HQ:
-
384 pcs
-
Application:
-
Fits most standard 6 x 4 metal box trailers
-
Packing:
-
4 mesh faces are individually Flat packaged
-
Feature:
-
Easy Installation

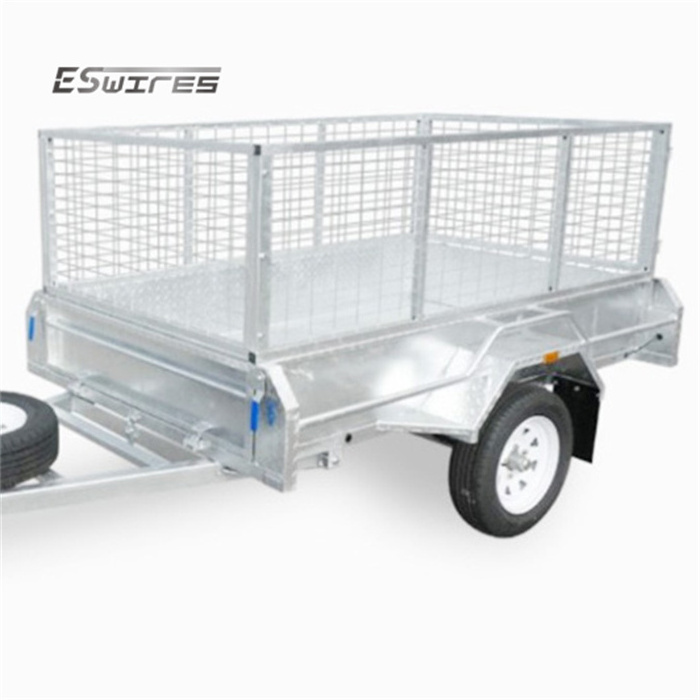

Trailer Parts And Accessories Heavy Duty Sturdy Hot-Dip Galvanized Steel 6'X4'X2' Trailer Cage
Trailer cages come in an extensive range of sizes starting with 6 x 4 and moving through to the more common 7 x 4 or 7 x 5. The Cages can be fitted to new or existing trailers.
| Item number | ES114-TC-01 | |||
| LxWxH | 6x4x2 ft | |||
| Dimension of Grid | 50x75x3.6 mm | |||
| Square Tube | 30x30x1.5&25x25x1.5 mm | |||
| Loaded in 1*40'HQ | 384 sets | |||
| Features |
1. Easy to Fit
2. Safety and Security 3. Low Maintenance |
|||
| Finish | hot dip galvanized (customized Zinc/powder coating) | |||
| Packing | Flat Packed, Iron Pallet, or customized | |||
|
Different Sizes Model |
LxWxH(ft) | Dimension of Grid(mm) | Finish | Loaded in 1*40'HQ(sets) |
| ES114-TC-02 | 6x4x3 | 50x75x3.6 | hot dip zinc | 304 |
| ES114-TC-03 | 7x5x2 | 50x75x3.6 | hot dip zinc | 315 |
| ES114-TC-04 | 7x5x3 | 50x75x3.6 | hot dip zinc | 204 |
| ES114-TC-05 | 8x5x2 | 50x75x3.6 | hot dip zinc | 252 |
| ES114-TC-06 | 8x5x3 | 50x75x3.6 | hot dip zinc | 173 |
Trailer cage sides of this type can be fitted into any of our platform trailers to special order.
These trailer cages take less than 10 minutes to install . Comes with all mounting hardware required to attach to your trailer. And give you extra capacity to carry more.
Easy loaded and unloaded by forklift.
Our QC team will have serious inspections from the raw material to trailer cage final loading.
