The anvil of forging hammer can be selected according to different products processed and forged. Generally, we will provide customized drawings of anvil for selection, or we can customize according to the customized drawings of anvil provided by customers. This can largely solve the problem of forging different shapes without corresponding anvil. In the figure are some customized figures. Please contact me for more shapes.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V single phase /380V three phase
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1100x500x1300
-
Weight (KG):
-
1700
-
Usage:
-
Mental Forging Press
-
Function:
-
Wrought Iron Processing
-
Key words:
-
Air Forging Hammer
-
Application:
-
Power Hammer Blacksmith
-
Product name:
-
C41 Series Blacksmith Air Hammer
-
Keyword:
-
Forging Hammer
-
Machine Name:
-
Cold Forging Machine
-
Application in:
-
Metalsmith
-
Advantage:
-
Stable Working
-
COLOR:
-
Customer's Require
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wadley
-
Machine Type:
-
pneumatic
-
Voltage:
-
220V single phase /380V three phase
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1100x500x1300
-
Weight (KG):
-
1700
-
Usage:
-
Mental Forging Press
-
Function:
-
Wrought Iron Processing
-
Key words:
-
Air Forging Hammer
-
Application:
-
Power Hammer Blacksmith
-
Product name:
-
C41 Series Blacksmith Air Hammer
-
Keyword:
-
Forging Hammer
-
Machine Name:
-
Cold Forging Machine
-
Application in:
-
Metalsmith
-
Advantage:
-
Stable Working
-
COLOR:
-
Customer's Require
Production Description
Green air hammer.
Blue air hammer.
.
Grey air hammer.
.
C41 25kg/40kg/65kg/75kg Pneumatic Hammer Power Hammer Forging Hammer
Blacksmith forging hammer introduction: It is a kind of free forging equipment. The air is compressed by the compressor cylinder and sent to the working cylinder through the distribution valve to drive the piston and the hammer head to move up and down for hammering. The operation is flexible. This model is suitable for various free forging, such as extension, upsetting, punching, shearing, forging welding, torsion, bending, etc. It can be used for various open die forging. The characteristics are as follows:
1. Driven by compressed air, the striking force and frequency can be controlled by adjusting the air pressure to meet the needs of safety production
2. The machine body is made of cast iron, and the large tonnage air hammer anvil is made of cast steel
3. The mechanism is simple and not easy to be damaged
Product Specification
|
Model
|
C41-20
|
C41-25
|
C41-40
|
C41-55
|
C41-75
|
|
Max hit energy(KJ)
|
0.22
|
0.27
|
0.52
|
0.7
|
1
|
|
Height of working area(mm)
|
200
|
240
|
245
|
266
|
300
|
|
hit number(min)
|
270
|
250
|
245
|
230
|
210
|
|
dimension of top and bottom die
|
90*50
|
100*50
|
120*50
|
120*55
|
145*65
|
|
max round steel can be
|
35
|
45
|
68
|
68
|
85
|
|
max square steel can be
|
30*30
|
40*40
|
55*55
|
52*52
|
65*65
|
|
rate power(kw)
|
2.2
|
3/2.2
|
4.5
|
5.5
|
7.5
|
|
speed of motor(r.p.m)
|
1440
|
1440
|
1440
|
1400
|
1400
|
Product Details
Customized A
nvil Of F
orging Hammer
.

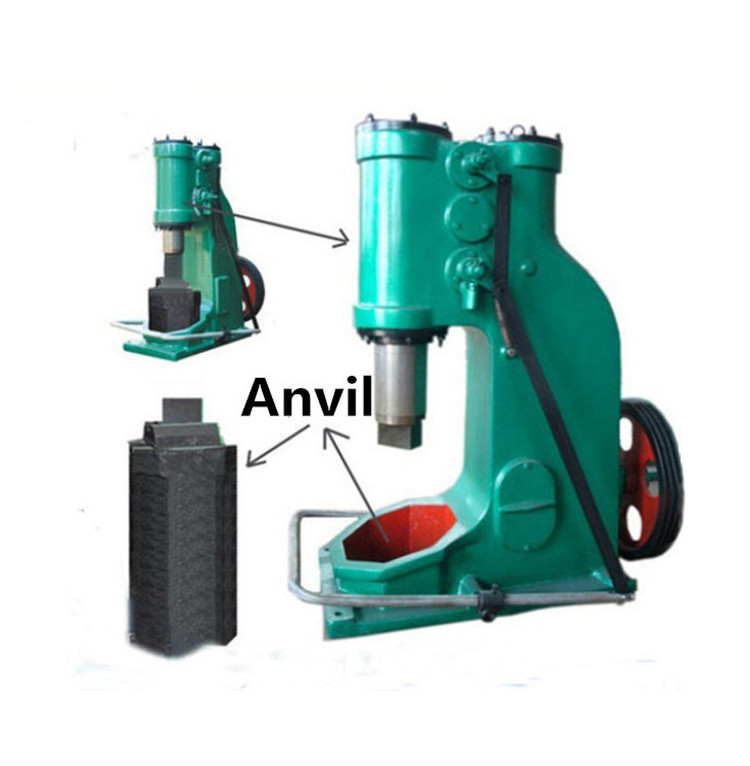

Anvil Of Forging Hammer
The anvil of forging hammer can be customized. The anvil pad and lower anvil are installed on the anvil. In order to meet the stability of forging, the quality of the anvil is required to be 12-15 times of the weight of the falling part. It is installed on a solid reinforced cement foundation, with a cushion wood between it, which can eliminate the vibration caused by hammering. At the same time, there are two options for iron felt: split type and integrated type
Transmission Mechanism Of Forging Hammer
The transmission mechanism of blacksmith forging hammer includes reducer, crankshaft and connecting rod system. It transforms the rotary motion of the motor into the up and down reciprocating motion of the compression piston. The belt pulley is driven by the motor and fully rotated. It is equipped with foot lever for better forging.
Features Of The Blacksmith Forging Power Hammer .
The pneumatic hammer is strong power, low noise, simple structure, convenient operation, flexible motion, and convenient
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
2, the air cyclinder has the lubricating device , before starting the machine , just shake the lubricating shank to lubricate.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.
C41 25kg/40kg/65kg/75kg Pneumatic Hammer Power Hammer Forging Hammer
This air pneumatic hammer machine is a very useful tool for general forging, it has many functions, such as: upsetting,
extending,continuous upsetting, punching, heat cutting, weldforging, twisting and bending.the machine uses open pad moulds can undertake all kinds of die forging, and it is widely used in hardware tools, medical equipment, gold and silver processing, manufacturing, agricultural machinery and copper tube factory, etc.
Customization anvil
Physical anvil
