Quick Details
-
Dimension(L*W*H):
-
Customiaztion
-
Weight:
-
3000 KG
-
Place of Origin:
-
Shanghai, China
-
Voltage:
-
220V/380V
-
Key Machines:
-
potato chips making machine
-
Product Type:
-
potato chips making machine
-
Application:
-
Crisp Chips production line
-
Function:
-
Injection molding
-
Material:
-
304 Stainless Steel
-
Power Source:
-
Electric/Gas/Oil
-
Showroom Location:
-
Egypt
-
Video outgoing-inspection:
-
Provided
-
Machinery Test Report:
-
Provided
-
Warranty of core components:
-
2 years
-
Warranty:
-
5 years
Quick Details
-
Machinery Capacity:
-
300
-
Brand Name:
-
Junyu
-
Year:
-
Customiaztion
-
Dimension(L*W*H):
-
Customiaztion
-
Weight:
-
3000 KG
-
Place of Origin:
-
Shanghai, China
-
Voltage:
-
220V/380V
-
Key Machines:
-
potato chips making machine
-
Product Type:
-
potato chips making machine
-
Application:
-
Crisp Chips production line
-
Function:
-
Injection molding
-
Material:
-
304 Stainless Steel
-
Power Source:
-
Electric/Gas/Oil
-
Showroom Location:
-
Egypt
-
Video outgoing-inspection:
-
Provided
-
Machinery Test Report:
-
Provided
-
Warranty of core components:
-
2 years
-
Warranty:
-
5 years

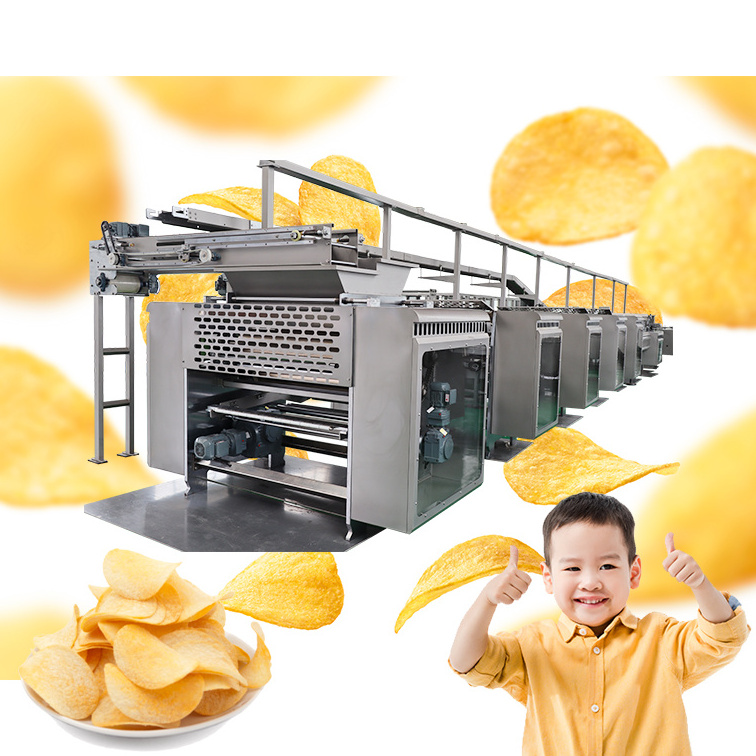

Baked Potato Chips
Making Machine
We can provide you turnkey project with a humanized and reasonable quotation scheme, as raw material processing, packaging, consumption to energy, simple to fully automatic equipment.
|
Model
|
JYB-280
|
JYB-400
|
JYB-600
|
JYB-800
|
JYB-1000
|
JYB-1200
|
|
Production capacity(kg/h)
|
100
|
250
|
500
|
750
|
1000
|
1250
|
|
Total length(mm)
|
29600
|
64500
|
85500
|
92500
|
125000
|
125000
|
|
Baking temp(℃）
|
190-240
|
190-240
|
190-240
|
190-240
|
190-240
|
190-240
|
Product Overview
Dough Feeder
✔
Digital display of dough thickness;
✔
Alloy steel roll;
✔
Stable transmission;
✔
T9 scraper;
✔
Eccentric plate thickness adjustment structure;
✔
Pneumatic tension, pneumatic rectifying device.
Roll Sheeting Machine
✔
Adjustment range of surface clearance: 5-15mm.
✔
Roller diameter: Φ300 ×820mm, 2, smooth rollers, made of alloy chilled cast iron.
✔
Separate power, separate speed regulation.
✔
Adjust the gap of the bottom roll. The gap of the roll is adjusted by the hand wheel, and the import positive driving indicator is adopted to display the relative gap of the roll.
✔
Adjustable gap at both ends of the roll.
Relaxing Machine
✔
Stainless steel support plate, side plate or carbon steel baking paint.
✔
Transmission bandwidth 600mm.Self-weight tensioning, double roll manual deviation.
✔
The conveyor belt input end interface can be adjusted back and forth, and the output end height can be adjusted.
✔
Conveyor belt alone power, separate speed regulation.
Dough Separating Machine
✔
Adopt side mounted motor reducer, motor power 2.2KW, linear speed 40m/min adjustable (pneumatic deviation correction device);
✔
Back-mounted motor reducer is adopted for vertical recovery. The motor power is 0.55KW, and the conveyor belt linear speed is 15m/min (the motor can rotate positively and negatively).
