Quick Details
-
Brand Name:
-
DIDLINK
-
Design confirms:
-
API 609, BS EN 593, MSS SP-67, BS5155
-
Top Flange:
-
ISO5211 or factory standard
-
Tightness check:
-
API 598, ISO 5208, EN12266-1, DIN3230, BS5155
-
Face-to-face conform:
-
API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67, DIN3202
-
Suitable medium:
-
Petroleum, chemical industry, water, oil, gas etc.
-
Working temperature:
-
-45 to 200 Celsius
-
Body/Disc:
-
Cast Iron(CI): GG25,Ductile Iron(DI):GGG50
-
Stem:
-
Zinc Plated Carbon Steel; Stainless Steel: 316/304/410/420
-
Seat:
-
NBR, EPDM, Neoprene, PTFE, BUNA, Hypalon.
-
Bushing:
-
PTFE, Nylon, Lubricated Bronze
Quick Details
-
Port Size:
-
DN50-DN1200
-
Place of Origin:
-
China
-
Model Number:
-
Butterfly Valve
-
Brand Name:
-
DIDLINK
-
Design confirms:
-
API 609, BS EN 593, MSS SP-67, BS5155
-
Top Flange:
-
ISO5211 or factory standard
-
Tightness check:
-
API 598, ISO 5208, EN12266-1, DIN3230, BS5155
-
Face-to-face conform:
-
API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67, DIN3202
-
Suitable medium:
-
Petroleum, chemical industry, water, oil, gas etc.
-
Working temperature:
-
-45 to 200 Celsius
-
Body/Disc:
-
Cast Iron(CI): GG25,Ductile Iron(DI):GGG50
-
Stem:
-
Zinc Plated Carbon Steel; Stainless Steel: 316/304/410/420
-
Seat:
-
NBR, EPDM, Neoprene, PTFE, BUNA, Hypalon.
-
Bushing:
-
PTFE, Nylon, Lubricated Bronze

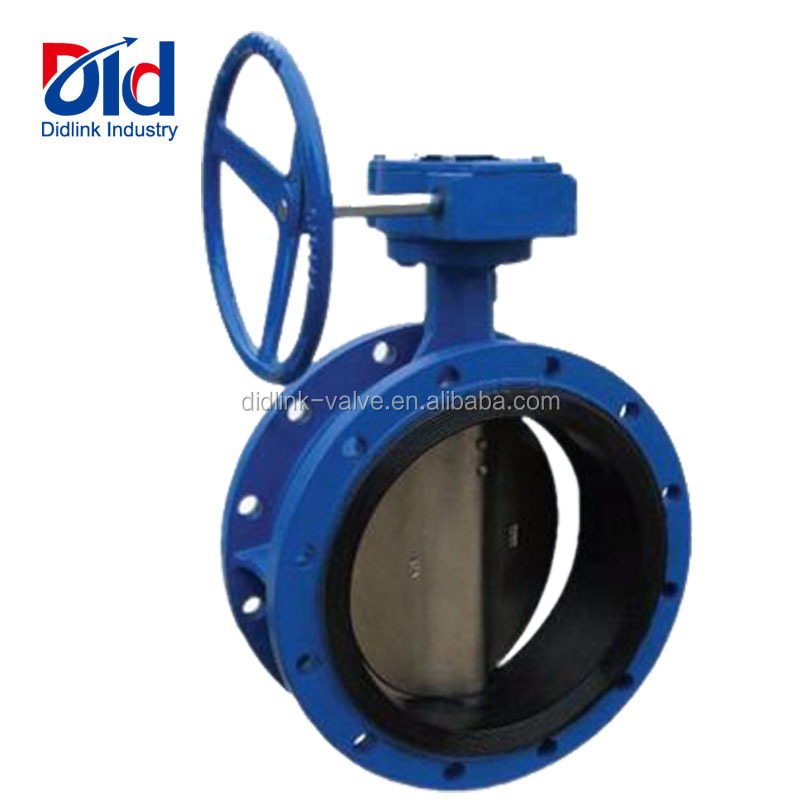

V Ball Fully Lugged Norri 100mm Cast Iron Epdm Seat Flanged Butterfly Valve Actuator Gear Box
| Brand | Didlink |
| Body | Cast iron |
Q1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q4. How to proceed an order for valve?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q6: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
