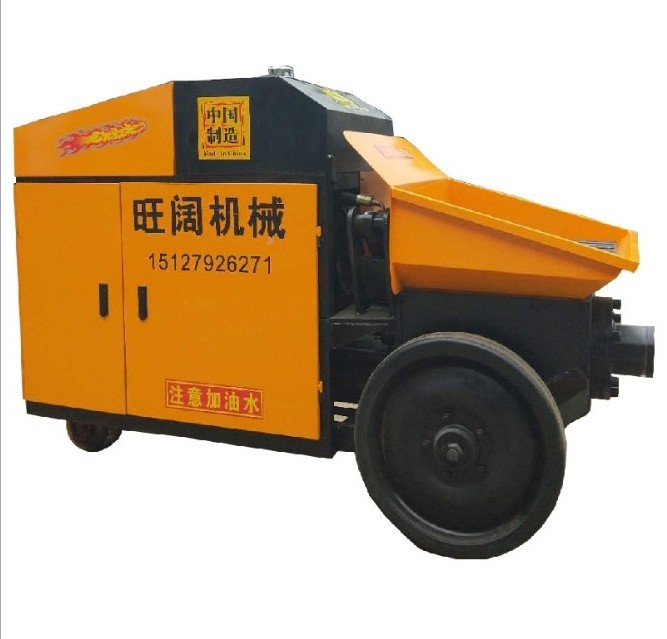

Factory construction machinery wall cement plaster mortar spraying machine
Factory construction machinery wall cement plaster mortar spraying machine
Factory construction machinery wall cement plaster mortar spraying machine
Factory construction machinery wall cement plaster mortar spraying machine
Factory construction machinery wall cement plaster mortar spraying machine
Factory construction machinery wall cement plaster mortar spraying machine
Factory construction machinery wall cement plaster mortar spraying machine
Factory construction machinery wall cement plaster mortar spraying machine

Factory construction machinery wall cement plaster mortar spraying machine

FOB Reference Price: Get Latest Price
≥10 Sets
US $3569
≥30 Sets
US $2698
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Plaster Spraying Construction
Place of Origin:
Hebei, China
Brand Name:
hanchuang
Dimension(L*W*H):
1600*450*750mm
Weight:
250 kg
Warranty:
2 Years
Power:
7.5kw
Marketing Type:
New Product 2023
WHATSAPP:
+86 13525551927
type:
cement putty mortar parget sprayer
Optimum jet distance:
30m
Jet width:
0.5m
Power form:
Electric airless sprayer
Applicable scope:
Mortar putty putty really stone paint
Through the particle size:
below 6mm
Delivery flow:
3m3/h
Matching air compressor:
0.3~0.6m3
power:
380v 7.5 kw

Quick Details

Max. vertical conveying distance:
5M
Max. horizontal conveying distance:
5M
Hopper Capacity:
5l
Application:
Plaster Spraying Construction
Place of Origin:
Hebei, China
Brand Name:
hanchuang
Dimension(L*W*H):
1600*450*750mm
Weight:
250 kg
Warranty:
2 Years
Power:
7.5kw
Marketing Type:
New Product 2023
WHATSAPP:
+86 13525551927
type:
cement putty mortar parget sprayer
Optimum jet distance:
30m
Jet width:
0.5m
Power form:
Electric airless sprayer
Applicable scope:
Mortar putty putty really stone paint
Through the particle size:
below 6mm
Delivery flow:
3m3/h
Matching air compressor:
0.3~0.6m3
power:
380v 7.5 kw

Factory construction machinery wall cement plaster mortar spraying machine

whatsapp:+86 13525551927

Product Description

Product Description

Mortar spraying machine and grouting machine suitable for: indoor and outdoor ceiling spray, expansion joints leaking, sinking leaking, subway leakage, tunnel leakage, mine plugging, air defense plugging works, dam leakage plugging, floor, cracks, Drum reinforcement, cement mortar spraying, dry mortar spraying, waterproof grouting and waterproof surface coating, waterproof spraying, grouting, ceiling spray, wall spraying, paint spraying, garden spraying, relief effect paint spraying, handicraft spraying, latex paint Paint, rockery spray, sculpture spray can be, sound-absorbing material spray.

Detail Data:

Delivery pressure 6Mpa
Conveying height 30m
Through the particle size <6mm
Delivery flow 3m3/h
water: cement: sand 0.7~1: 1: 3
Hopper volume 50L
Machine Weight

320kg

Matching air compressor

0.3~0.6m3

Supporting nozzle diameter

30mm

Power

2.2 KW  7.5KW

Voltage

380V

Product Operation:

1. Turn on the power, press the button, the screw pump that is working. If you turn the reverse, press the stop button to stop.

2. In the delivery hose into the injection of a small amount of water, or with a screw pump water wet delivery hose, and then the tube of water gradually discharged from the export. Drainage should be clean, the tube shall not be retained

3. Connect the duct to the mortar tube side by side. The air duct is connected to the gun.

4. Stir the material into the hopper (can be used with the powder machine).

5. Press the start button to start the shot. In the work, combined with the regulation of air volume, can make the best spray quality.

6. Adjustable speed of the screw pump, the output flow of 0-8 liters / min, at work, as long as the return to adjust the requirements to the construction requirements of the output speed can be.

7. The mixing material must be continuously added in the hopper to ensure the continuity of the spray.

Spray work to be suspended, press the stop button can be, can make the operation more convenient, you can use the following methods for remote control: the middle of the box to the left is the manual control switch.

8. Spray work before the end of the hopper to be left after the material spray, close the air pump, after the shutdown.

9. Remove the gun and remove the parts one by one clean.

10. In the hopper into the water, press the pump to clean the pump. When the nozzle flows out of the clear water, press the button to stop, remove the delivery hose and roll up

Construction Site

Newest Products

Newest Products

We will update new products, if had any interested, just notice this part.

Packaging & Shipping

Packaging & Shipping

1. Testing Machine before package

2. Package : Inside plastic bag, outside wooden case.

3. Shipping: By sea, By air.

By sea: if customer not urgently the machine, we advice by sea, even though by sea took time is long, but by sea reduce much money about the freight, and it is good for customer if the machine is heavy and big size.

By air: it is faster than by sea, but its freight is higher much than by sea, so this kind of type always suggest for light, small size and urgently demand machine.

Our Services

Pre-sale service
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.

3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.

After sale service :

1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
