High Speed Automatic Powder Capsule Filling Sealing Machine Nespresso Coffee Capsule K Cup Filling Sealing Packing Machine

High Speed Automatic Powder Capsule Filling Sealing Machine Nespresso Coffee Capsule K Cup Filling Sealing Packing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $7540

≥2 Sets

US $7380

≥3 Sets

US $7230

≥5 Sets

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: 99%

Voltage:: 110V, 220V, 380V

Place of Origin:: Guangdong, China

Weight:: 500 KG

Product name:: Coffee capsule packing machine

Packing speed:: 800-1000pieces/hour

filling volume:: 1-20g

Power:: 220V/380V, 50HZ

Machine size:: 1217*1015*1343mm

Advantage:: High Packaging Grade

Quick Details

Machinery Capacity:: 2000BPH, 1000BPH, 800BPH

Packaging Material:: Plastic, Aluminum

Filling Material:: Powder

Filling Accuracy:: 99%

Voltage:: 110V, 220V, 380V

Place of Origin:: Guangdong, China

Weight:: 500 KG

Product name:: Coffee capsule packing machine

Packing speed:: 800-1000pieces/hour

filling volume:: 1-20g

Power:: 220V/380V, 50HZ

Machine size:: 1217*1015*1343mm

Advantage:: High Packaging Grade

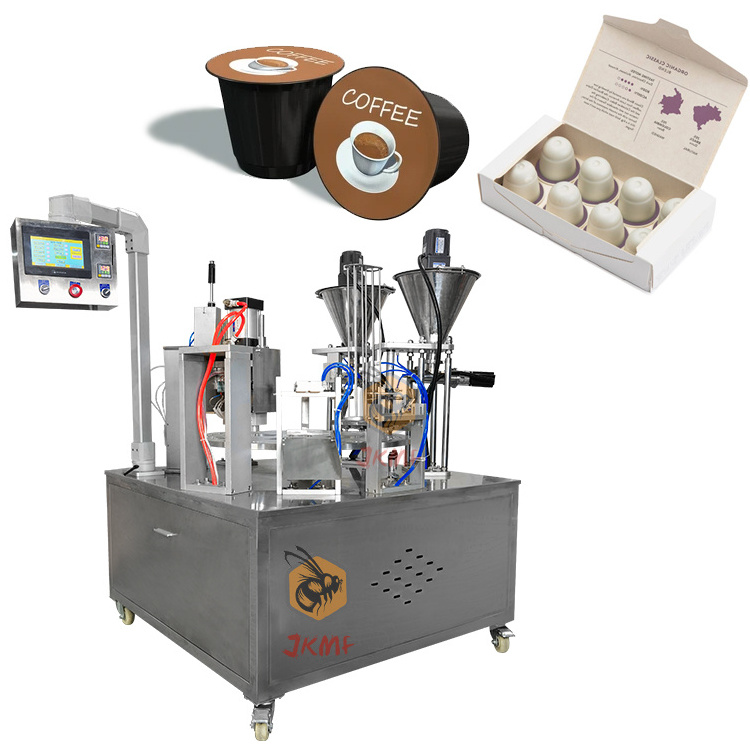

Automatic Powder Capsule / Cup Filling Sealing Machine

Products Description

Application

>What can this machine pack?

Rotary Type Coffee Capsule Filling Sealing Machine is suitable for filling various types of coffee capsules ( such as nesspresso / k-cup / lavazza).

Can automatically complete the capsule cup's automatic drop cup, automatic filling, automatic suction film, sealing, automatic cup and other functions. The machine uses the Japanese ohm long programmable logic controller, pneumatic control element, intelligent digital display temperature control system, with the features of high sealing strength, good sealing performance, low failure rate and small floor space.

Coffee Capsule Filling Sealing Machine
Model	JK-250HS	JK-320HS
Packing speed	800~1000 Pieces/Hour	1600~2000 Pieces/Hour
Filling volume	1~10g
Machine power	220V/380V，50HZ，4KW		220V, 50HZ
Machine size（LWH)	121710151343	125012501650
Machine weight	350KG	450KG

Main Features

1. Digital screen display with numerical setting and flexible operation.

2. Imported PLC control system and color touching screen, easy operation.

3. Imported film driving system and color sensor enable accurate position.

4. PID independent control of temperature, more suitable for different packaging material.

5. Multiple automatic alarming functions, maximum deduction the loss.
6. Dual encoders enable more stable performance.

Machine Working Process

1.Falling cup

2.Coffee measuring filling

3.Sucking putting foils

4 .Cup heating sealing

5.Push out finished cup

Control Center

The intelligent control center consists of a 7-inch multi-function touch screen and multiple temperature controllers, which can directly set machine parameters and language.

Automatic Cup Feeding Device

Put the coffee capsule cups into the hopper, up to 200 can be placed at a time. When the machine is running, the cup automatically falls and enters the turntable.

Powder Metering Filling Device

With a 30L large capacity hopper, pour the product into it. The device automatically measures and fills the capsules according to the set parameters. High accuracy, error ±0.1g.

Falling Film And Heat Sealing Device

The automatic suction cup automatically absorbs the aluminum film, and then passes through the heat sealing device to complete the sealing and packaging of the product. Good packaging effect, good sealing.

Why Choose Us

JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.

After acceptance by the customer, they are packed in international standard wooden cases and shipped.
