Quick Details
-
Product name:
-
X Ray baggage scanner machine
-
Tunnel Size:
-
1805(L)*1510(W)
-
Conveyor Speed:
-
0.22m/s
-
Conveyor Max Load:
-
2000
-
Dose per Inspection:
-
2.0 μGy
-
Spatial resolution Level:
-
Horizontal:dia1.0mm,Vertical: dia1.0mm
-
Penetrate resolution:
-
40 mm steel
-
Film Safety:
-
Guarantee ASA/ISO1600 Film
-
Cooling / Duty Cycle:
-
Oil Cooling /100%
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZOAN
-
Application:
-
Security Check
-
Product name:
-
X Ray baggage scanner machine
-
Tunnel Size:
-
1805(L)*1510(W)
-
Conveyor Speed:
-
0.22m/s
-
Conveyor Max Load:
-
2000
-
Dose per Inspection:
-
2.0 μGy
-
Spatial resolution Level:
-
Horizontal:dia1.0mm,Vertical: dia1.0mm
-
Penetrate resolution:
-
40 mm steel
-
Film Safety:
-
Guarantee ASA/ISO1600 Film
-
Cooling / Duty Cycle:
-
Oil Cooling /100%

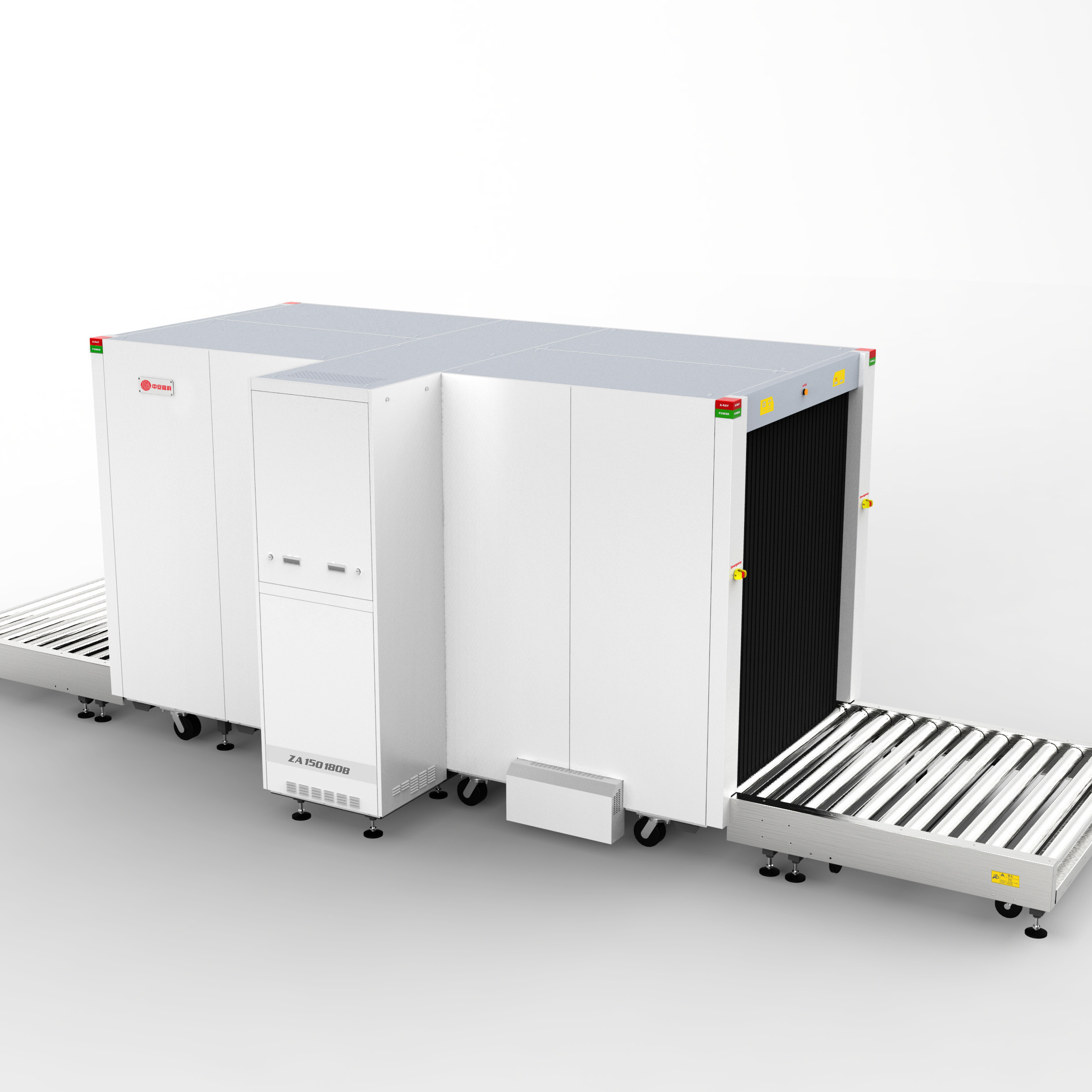

ZA150180 Large Airport X Ray Baggage Cargo Scanner
|
Physical Specifications |
|
|
Unit weight (kgs) |
800 |
|
Unit size (mm) |
2848.5(L)*1095(W)*1535.5(H) |
|
after packed in wooden pallet - |
|
|
Gross weight (kgs) |
900 |
|
Packing size |
#1: 213*121*179cm |
|
#2: 115*90*142cm |
|
|
General Specifications |
|
|
Tunnel size(mm) |
1805 (L)* 1510 (W) |
|
Conveyor Speed(m/s) |
0.22 |
|
Conveyor height(mm) |
338.5 |
|
Conveyor Max Load(kgs) |
2000 |
|
X ray dose per each inspection |
2.0 μGy |
|
X ray leakage |
|
|
Penetration |
40 mm steel |
|
Wire Resolution |
dia0.127mm copper wire (AWG36) |
|
Spatial resolution: |
Horizontal:dia1.0mm,Vertical: dia1.0mm |
|
Power Consumption |
max. 1KW |
|
Noise |
< 58 dB |
|
Film Safety |
Guarantee ASA/ISO1600 Film |
|
|
|
|
X-ray Generator (single) |
|
|
Anode Voltage |
140 KV |
|
Anode power |
0.4-1.2mA (adjustable) |
|
Generate angle |
80 degree upward |
|
Generate direct |
from top to bottom |
|
Cooling / Duty Cycle |
Oil Cooling /100% |
|
Monitor |
High Resolution Color, LCD Accord, 17inch |
