Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
930 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.7
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WEHO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2600*2500*1900mm
-
Power (kW):
-
3.7
-
Weight (KG):
-
2000
-
Warranty of core components:
-
2 YEARS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
wood keyhole machine
-
Functions:
-
milling for concealed hinge
-
Maximum processing door height:
-
2500mm
-
Processing door thickness:
-
30-60mm
-
Processing door width:
-
600-1100mm
-
Hinge motor:
-
3*1.1kw
-
Lock slot motor:
-
3.7kw
-
Locking machine motor:
-
0.4kw
-
Keyhole motor:
-
2*1.5kw
Quick Details
-
Working Table Size(mm):
-
mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
8000 - 12000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
930 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.7
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WEHO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2600*2500*1900mm
-
Power (kW):
-
3.7
-
Weight (KG):
-
2000
-
Warranty of core components:
-
2 YEARS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
wood keyhole machine
-
Functions:
-
milling for concealed hinge
-
Maximum processing door height:
-
2500mm
-
Processing door thickness:
-
30-60mm
-
Processing door width:
-
600-1100mm
-
Hinge motor:
-
3*1.1kw
-
Lock slot motor:
-
3.7kw
-
Locking machine motor:
-
0.4kw
-
Keyhole motor:
-
2*1.5kw
Products Display

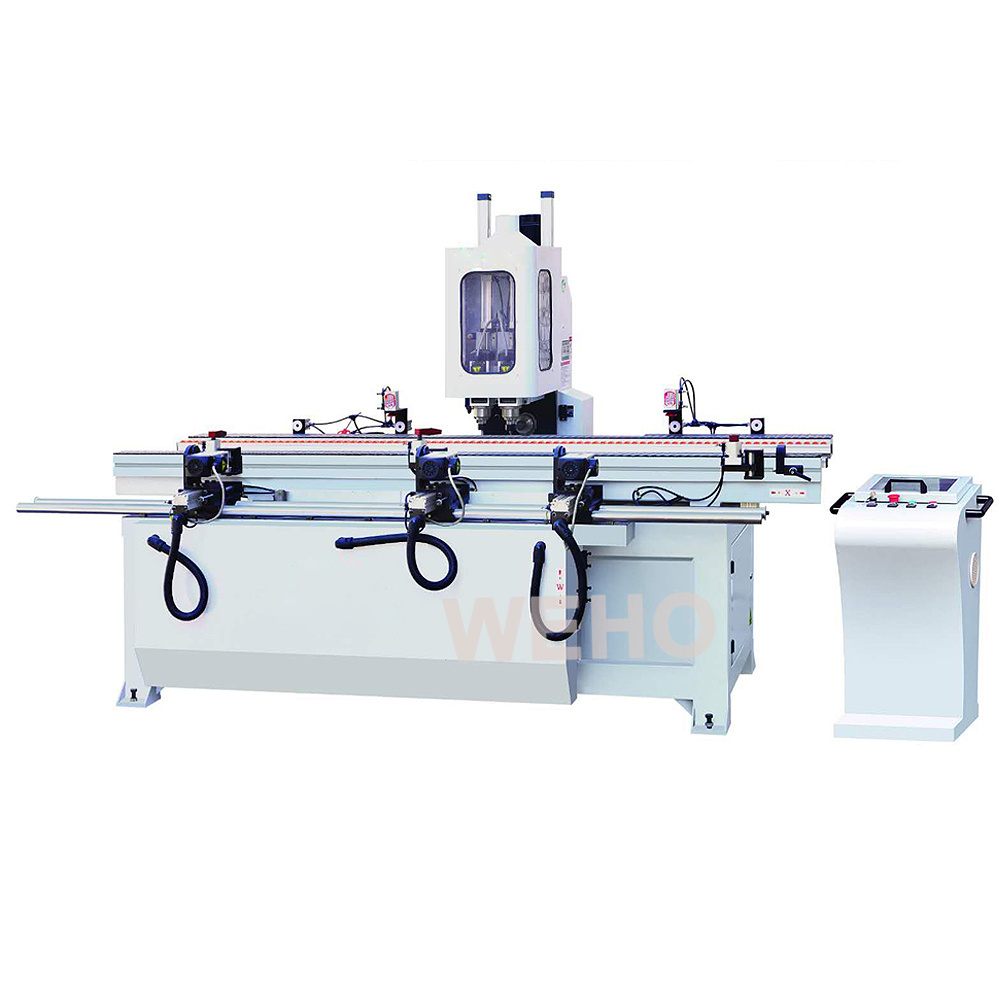

Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
CNC milling machine, particularly suitable for the production of doors and frames at industrial level and specifically for the milling regarding housing pommele hinges, plates and locks, besides handle holes and key holes.
|
CNC Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
|
|
|
|
Modle
|
MXZ2511
|
|
|
Maximum processing door height
|
2500mm
|
|
|
Processing door thickness
|
30-60mm
|
|
|
Processing door width
|
600-1100mm
|
|
|
Maximum moving range of worktable
|
400mm
|
|
|
Maximum moving speed of worktable
|
8m/min
|
|
|
Hinge motor
|
3*1.1kw
|
|
|
Lock slot motor
|
3.7kw
|
|
|
Locking machine motor
|
0.4kw
|
|
|
Keyhole motor
|
2*1.5kw
|
|
|
Hinge tool chuck
|
ER20 12-13
|
|
|
Lock groove tool collet
|
ER32 15-16
|
|
|
Locking step tool chuck
|
ER20 12-13
|
|
|
Keyhole cutter
|
ER20 12-13
|
|
|
Size
|
2600*2500*1900MM
|
|
|
Weight
|
2000KG
|
|
Detailed Images
Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
Designed for door manufacturers with the pommele hinges system, the milling machine distinguishes by solidity and ease of use, always offering the best ratio between quality and price.
Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
The tekno prime machine is suitable for the woodwork of doors and frames for the countries that adopt the pommele hinges and concealed hinges systems.
CNC keyhole drilling and milling for concealed hinge of doors and frames
After a simple programming of the job to be performed, the machine will (through the loading and unloading belts) load the door to be processed and then start the milling and boring process previously set.
Handle key holes boring wooden door frame lock mortise concealed hinge cnc milling machine
The software includes macro presets that allow a quick parameter setting. The parent company ensures a remote technical support in direct interaction with our specialists to reduce the distances and to help customers with the settings or changes of the parameters.
The machine body, its columns and some of its parts are internally manufactured by our welding department, equipped with CNC metalworking machines, guaranteeing our customers a a product durable
Advantages
Thanks to the shape of the loading and unloading table, the machine can be installed in working lines.
In about 2 minutes and with a single positioning, the machine performs a complete milling and boring on the door allowing the operator to fit and fix its hardware.
