Quick Details
-
Table Size:
-
2280*1136*1260mm
-
Weight:
-
3898 kg
-
Product name:
-
Tracked-Scissor-Lift
-
Color:
-
Customers' Requirements
-
Rated Load:
-
250kg
-
Max Platform Height:
-
8.3m
-
Max. Working Height:
-
9.9m
-
Machine Length:
-
2485mm
-
Machine Width:
-
1390mm
-
Machine Height (Guardrail Folded):
-
1880mm
-
Platform Dimensions:
-
2280*1150*1263mm
-
Length/Load of Extended Platform:
-
900mm/113.3kg
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SWLLIFT
-
Table Size:
-
2280*1136*1260mm
-
Weight:
-
3898 kg
-
Product name:
-
Tracked-Scissor-Lift
-
Color:
-
Customers' Requirements
-
Rated Load:
-
250kg
-
Max Platform Height:
-
8.3m
-
Max. Working Height:
-
9.9m
-
Machine Length:
-
2485mm
-
Machine Width:
-
1390mm
-
Machine Height (Guardrail Folded):
-
1880mm
-
Platform Dimensions:
-
2280*1150*1263mm
-
Length/Load of Extended Platform:
-
900mm/113.3kg
Product Description

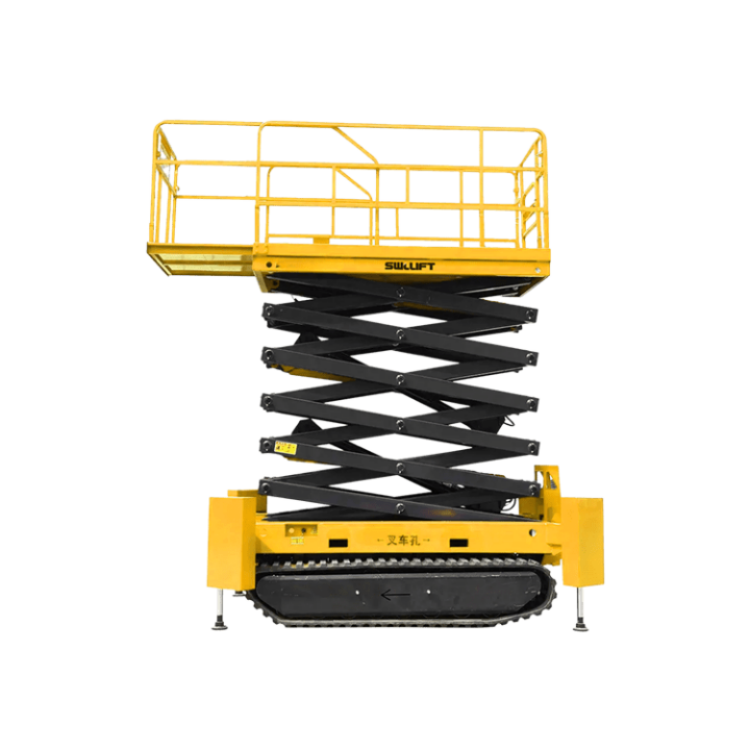

Track Scissor Lift :
The track scissor lift platform is a powerful lifting equipment. Its structure is mainly composed of a scissor lift mechanism and a crawler mobile system.
The scissor lift mechanism is composed of two or more cross-connected scissor arms, and the lifting function is realized through a hydraulic system.
The crawler system consists of crawler chains, driving wheels and supporting pulleys. It can travel on uneven or rugged ground to ensure the stability and maneuverability of the platform.
Strong passing ability:
The crawler scissor manned lifting platform is suitable for rugged terrain and has better passing ability and stability.
Greater carrying capacity:
Compared with rubber tire manned lifting platforms, crawler scissor lifting platforms can carry heavier goods and allow multiple people to work at the same time.
Wider application scope:
Due to its stronger adaptability, the crawler scissor manned lifting platform can be used in more complex working scenarios.
Advantages:
Product Paramenters
|
Model
|
|
Z08T
|
|
|
|||
|
Rated Load
|
|
250kg
|
|
|
|||
|
Max Platform Height
|
|
8.3m
|
|
|
|||
|
Max Working Height
|
|
10.3m
|
|
|
|||
|
Machine Length
|
|
2530mm
|
|
|
|||
|
Machine Width (Retracted)
|
|
1770mm
|
|
|
|||
|
Machine Height (Retracted)
|
|
2432mm
|
|
|
|||
|
Platform Dimensions
|
|
2280×1136×1260mm
|
|
|
|||
|
Length of Extended Platform
|
|
900mm
|
|
|
|||
|
Weight
|
|
3398kg
|
|
|
|||
|
Battery
|
|
8×6V (200Ah)
|
|
|
|||
|
Charger
|
|
30A
|
|
|
|||
